HEIGHT ADJUSTMENT OF STOVE

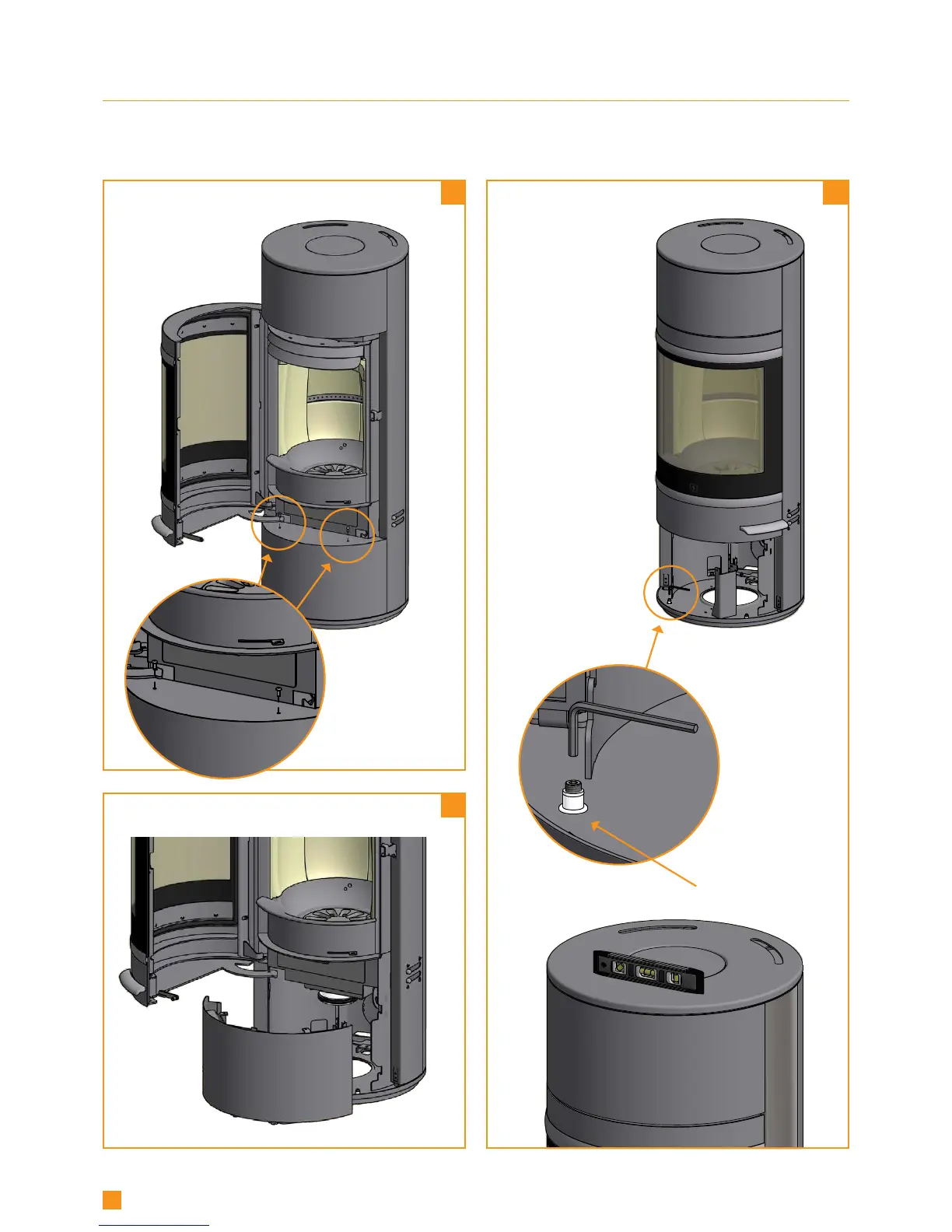

The stove has four adjustment screws under the stove. Use the adjustment screws to get the stove to stand straight and level.
NOTICE: It is very important that the stove is level to allow an optimal function of the door.
Remove the screws for the cover plate in the base Adjust the adjustment screws
Lift off the front of the base
Adjustment screws
