SCAN 83 series - Fitting the Ceramic Tiles

23
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583070.idw
90583070
justering
10-03-2015
hms
scan 83
VÆGT:
AREAL:
N/A
N/A
1
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583066.idw
90583066
Kakler bagudg
10-03-2015
hms
scan 83
VÆGT:
AREAL:
9,57 kg
1009053 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583065.idw
90583065
kakler topudg
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
9,00 kg
974014 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583060.idw
90583060
løsdele til kakler
27-02-2015
hms
Scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583065.idw
90583065
kakler topudg
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
9,00 kg
974014 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583065.idw
90583065
kakler topudg
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
9,00 kg
974014 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583069.idw
90583069
mont fedtsten
10-03-2015
hms
scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583067.idw
90583067
hængsel kakler
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
N/A
N/A
2
3
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\CAD\Inventor 2015\Templates\Standard - Manual.idw
90583063
grundovn u kakler topafg
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583071.idw
90583071
færdig ovn
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
N/A
N/A
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583070.idw
90583070
justering
10-03-2015
hms
scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583064.idw
90583064
topplade/dækplade topafg
10-03-2015
hms
Scan 83
VÆGT:
AREAL:
N/A
N/A

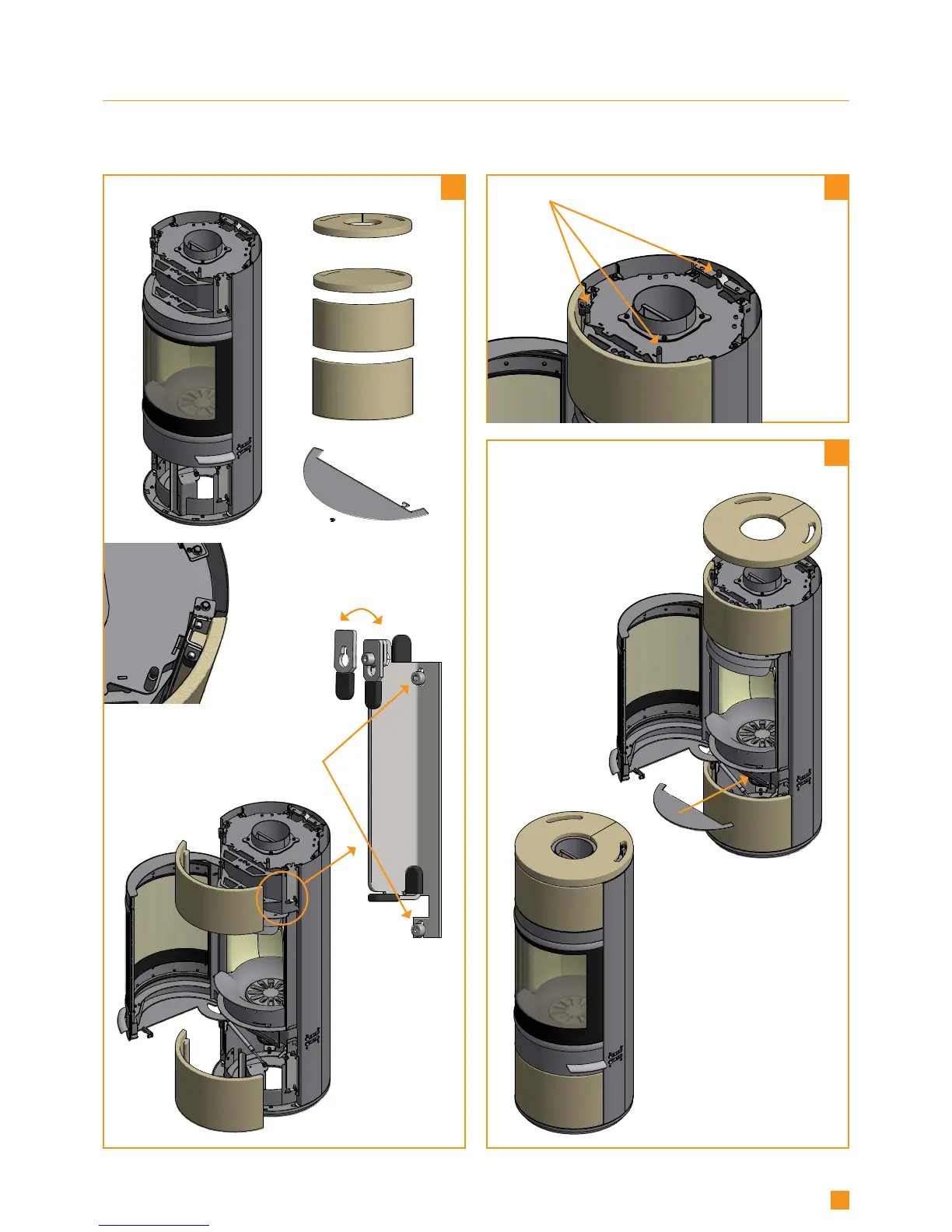

FITTING THE CERAMIC TILES
Ceramic tiles are available for Scan 83-5 and 83-6.
Please note that the tiles are made of natural materials, and therefore they can vary in structure and form. There may be minor
cracks in the glazing which is especially visible in the bright colours.
Mount the tiles with the fittings.
Don’t fasten the fittings until the
tiles have been adjusted in their
final position
Adjustment screws for the top plate
After mounting and adjusting the lower tile, push the
steel cover plate in place
Reposition the ceramic top
Rear flue outlet
Top flue outlet
Adjust the tiles into the right
position with these two screws
After adjusting
the tiles, you
can fasten all
screws
(ACCESSORY)
