SCAN 83 series - Heat-Storage System

24
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 83\90583037.idw
90583037
Montage varmeakkumulerende sten
05-03-2013
BC
Scan 83
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Scan A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 83\20583937.iam
20583937
Samling af varme ak. sten
21-08-2013
kc
Scan 83
VÆGT:
AREAL:
41,73 kg
1091930 mm^2
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Scan A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 83\20583937.iam
20583937
Samling af varme ak. sten
21-08-2013
kc
Scan 83
VÆGT:
AREAL:
41,73 kg
1091930 mm^2
1
2

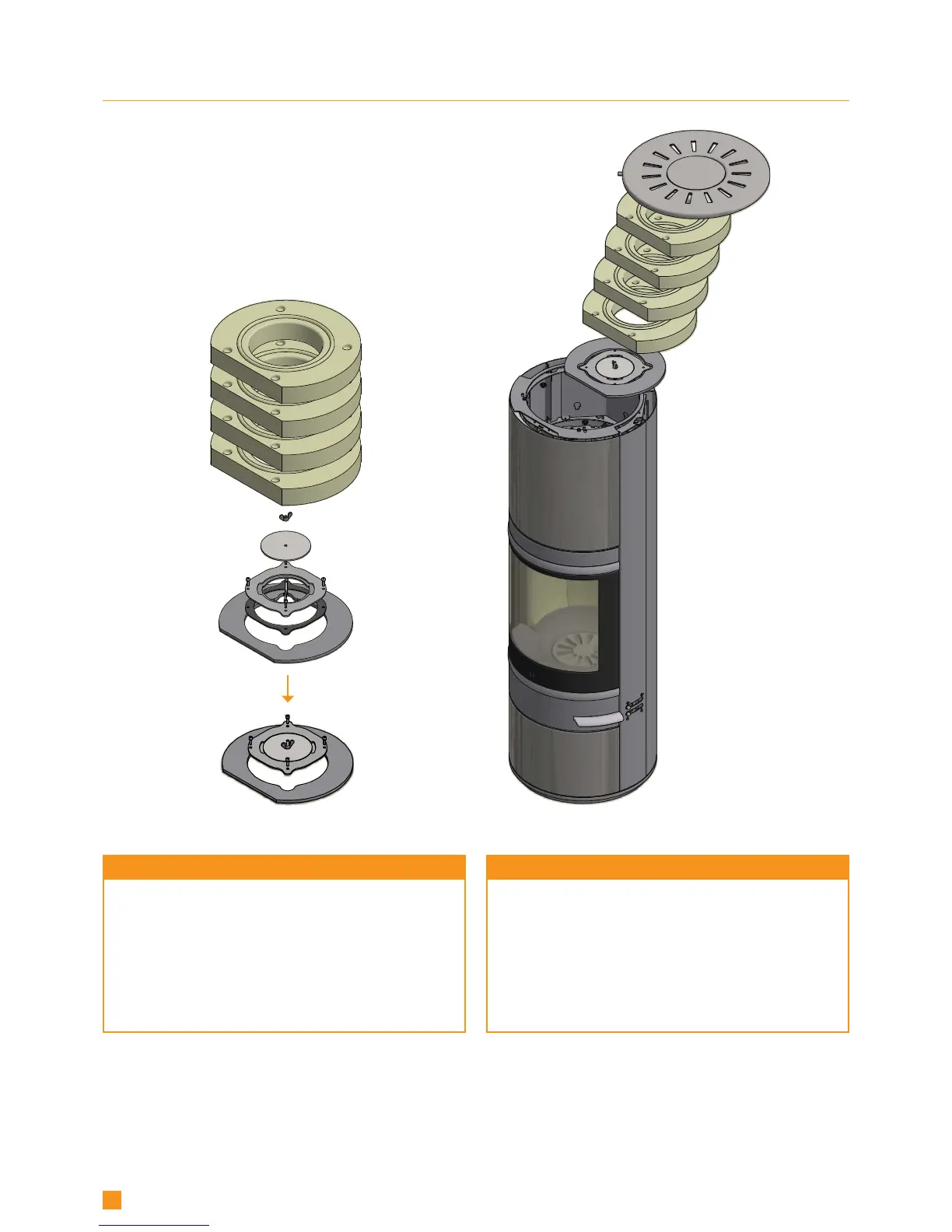

TOP OUTLET REAR OUTLET
(ACCESSORY)
HEAT-STORAGE SYSTEM
Heat-storage stones are available for Scan 83-3, 83-4, 83-7 and 83-8.
Heat-storage stones are made from a special material with a high
heating capacity. The stones are heated up during the firing and gives
off the heat again after the firing, which means that the stove stays
warm for a longer time.
¬ Firing with the vent open will give a quicker heating. Firing with the
vent closed will extend the heating time of the stove.
The heat conductor plate must always be mounted under
the heat accumulating stones.
Mount part 2 (heat conductor plate) and the four stones.
Part 1 (access door) is not to be used.
Only to be used at rear outlet.
First mount part 1 (access door). Then mount part 2 (heat
conductor plate) and the four stones.
The access door is easily removed by means of the butter-
fly nut, when the stove has to be cleaned.
Heat-storage stones
