1
Lower
baffle plate
Upper
baffle plate
Holder for
upper
baffle plate

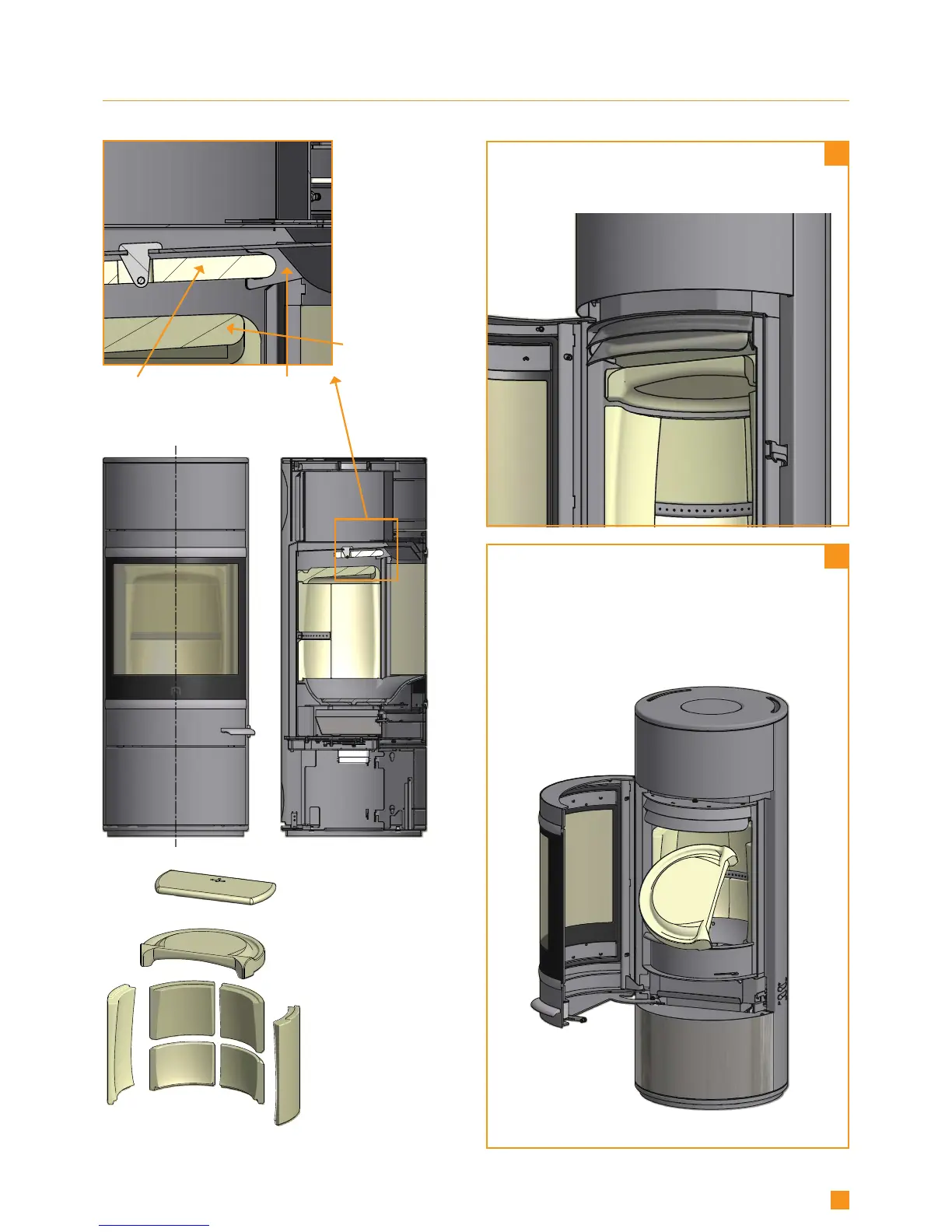

BAFFLE PLATES AND COMBUSTION CHAMBER LINING
Be very careful when removing the baffle plates from the stove.
Combustion
chamber lining
Turn the baffle plate 90°, and lower it out through the
combustion chamber
Lift the lower baffle plate
