OPM 200 en-GB 65
©
Scania CV AB 2014, Sweden
Miscellaneous
Option 1
1.
Turn in the engine's direction of rotation so
that TDC down or TDC up is visible in the
flywheel housing window.
2.
Check the valve transition and start adjusting
as indicated in the table.
Tightening torque for adjusting screw 35 Nm (26
lbf ft).
From below Valve transition Valve adjust-
ment
From above
TDC down 6 1 TDC up
120/480 2 5 300/660
240/600 4 3 60/420
TDC down 1 6 TDC up
120/480 5 2 300/600
240/600 3 4 60/420

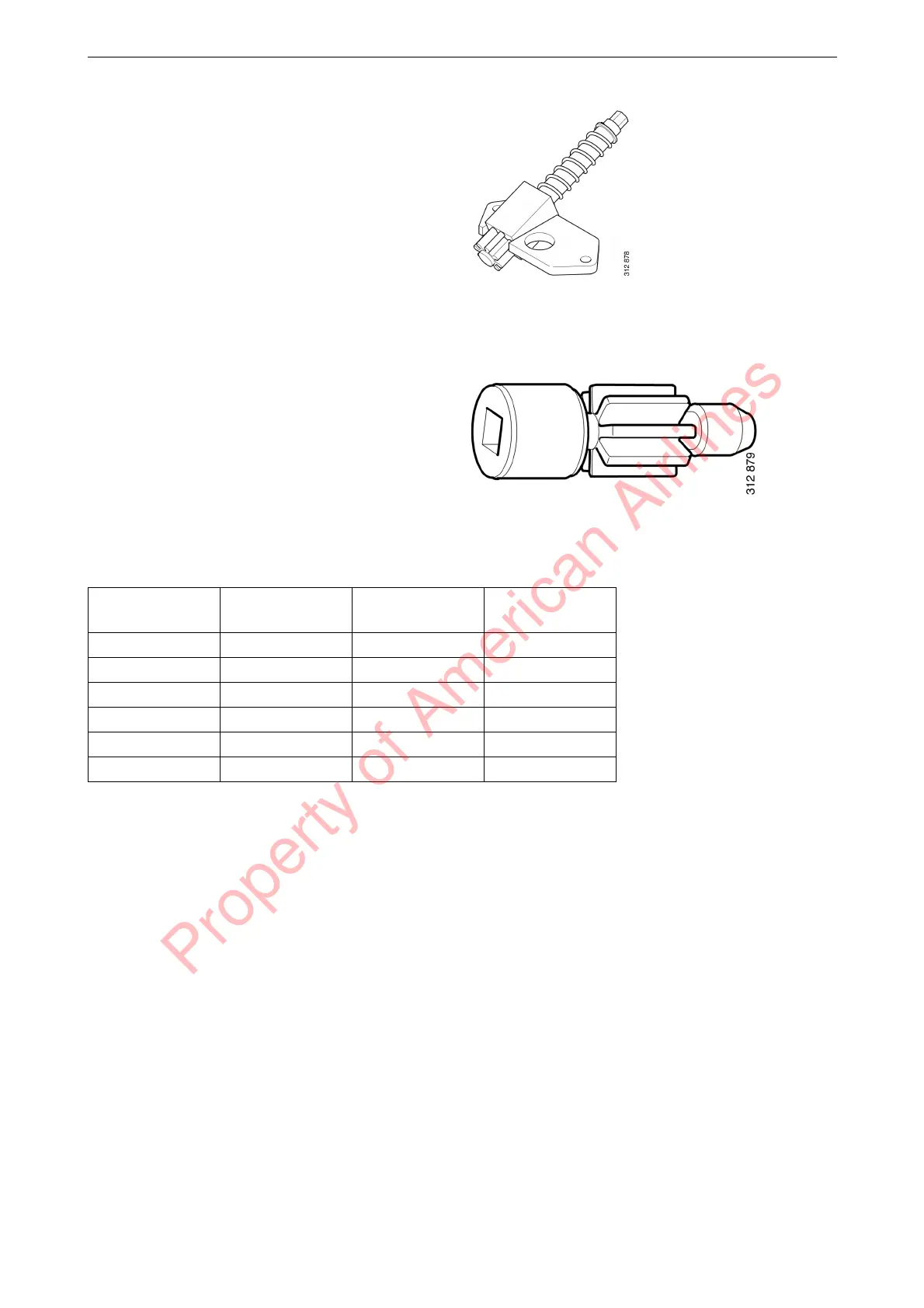

Special tool 99 109 is used when turning from
above.
Special tool 99 309 is used when turning from be-
low.
