Appendix P Drilling Template for Easy Mounting
• Print/Enlarge this page to the real product sizes of 182 X 131 mm
• Make sure the scaling reference of 100 mm is respected.

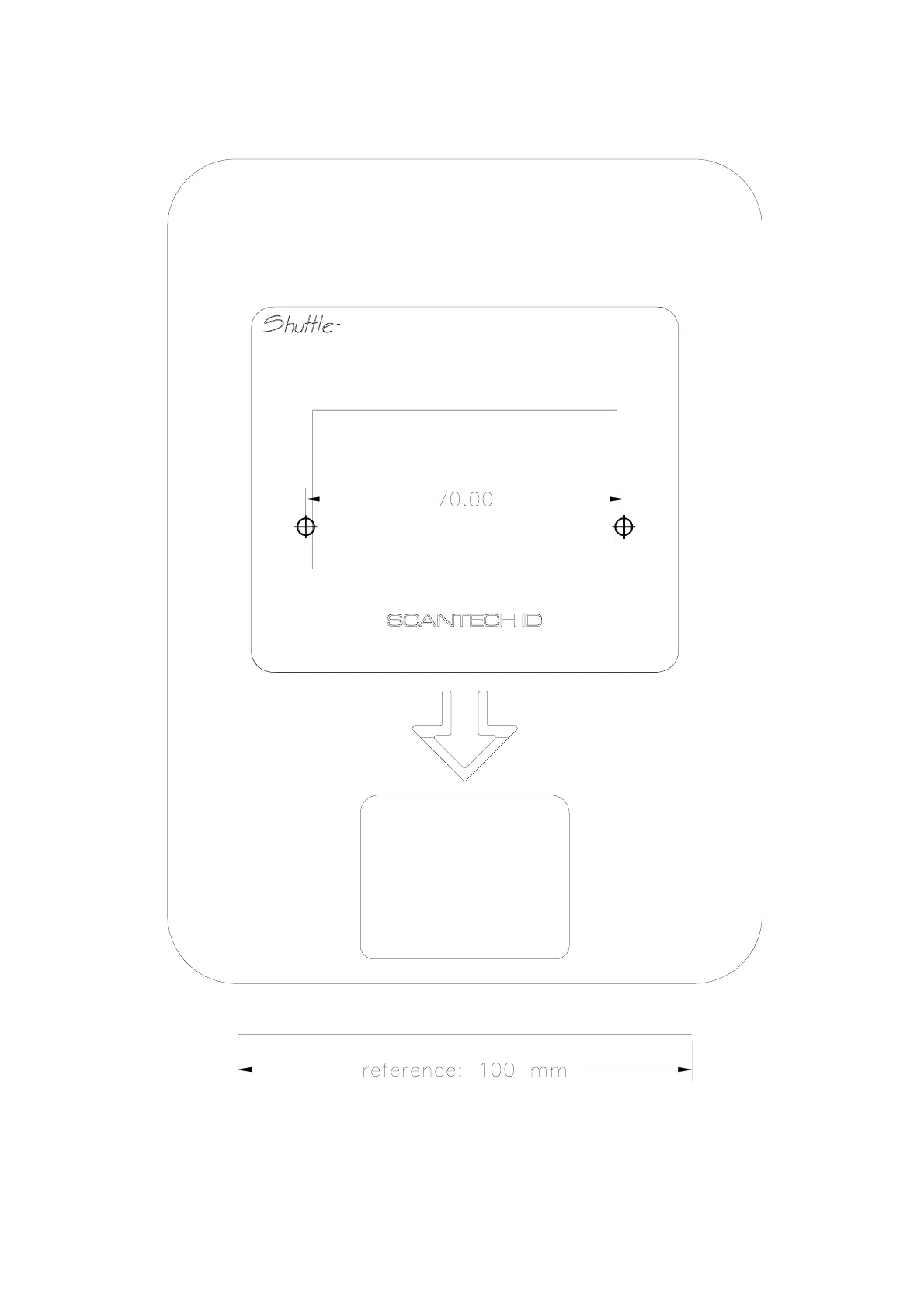

( Drilling Pattern )
