Sceptre UMC Series - Identifying Front and Rear Panel; Front View; Rear View Mounting Pattern

- 11 -
www.SCEPTRE.com
SCEPTRE UMC Series UHD Display User Manual

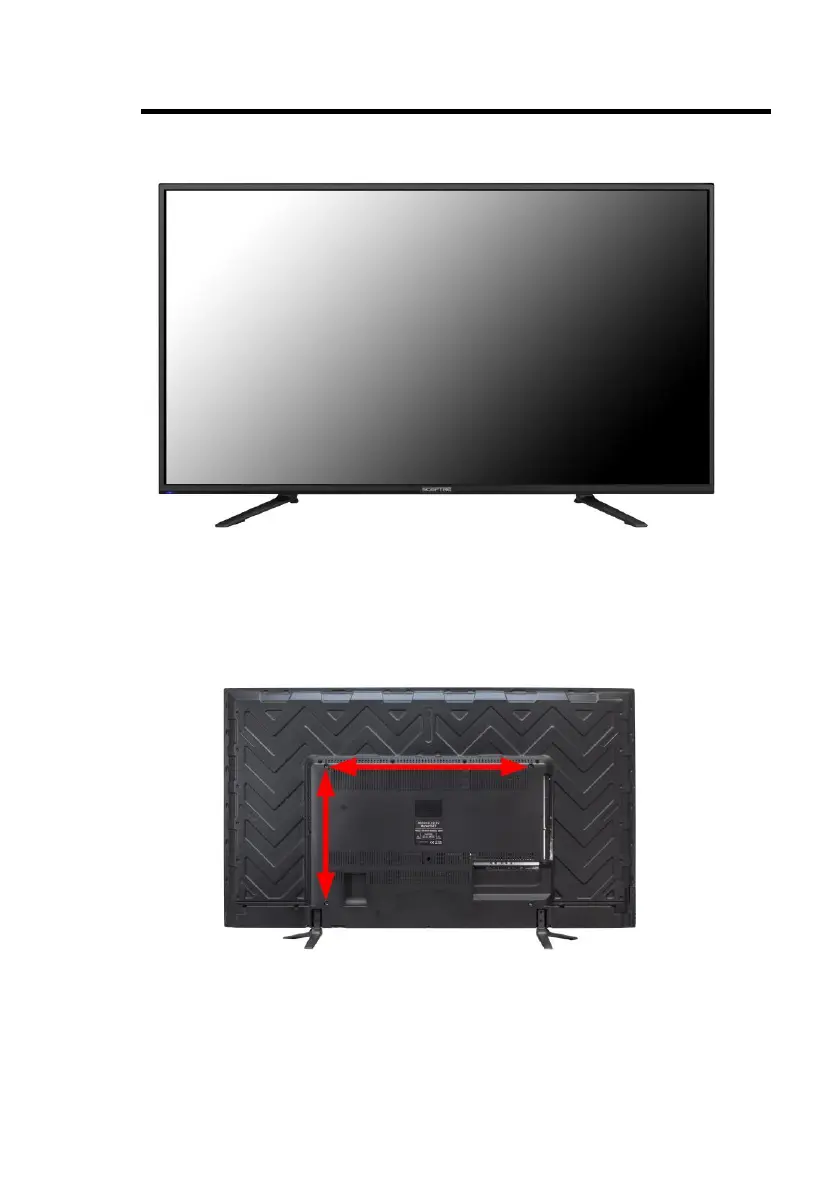

Identifying Front and Rear Panel
Front View
INDICATOR LIGHT – The light is red when power is plugged in but the display is not turned on. The
light turns blue when the display is turned on. The display might take 10 – 12 seconds to power
on. This is considered to be normal.
REMOTE SENSOR – The remote sensor receives all the commands from the remote control.
Rear View Mounting Pattern
Mounting Specification:
U65: 600mm x 400mm using screw size M6, Screw Depth < 20mm
U55: 600mm x 400mm using screw size M6, Screw Depth < 20mm
U50: 400mm x 200mm using screw size M6, Screw Depth < 9mm
U43: 400mm x 200mm using screw size M6, Screw Depth < 9mm
