MQC Series P2

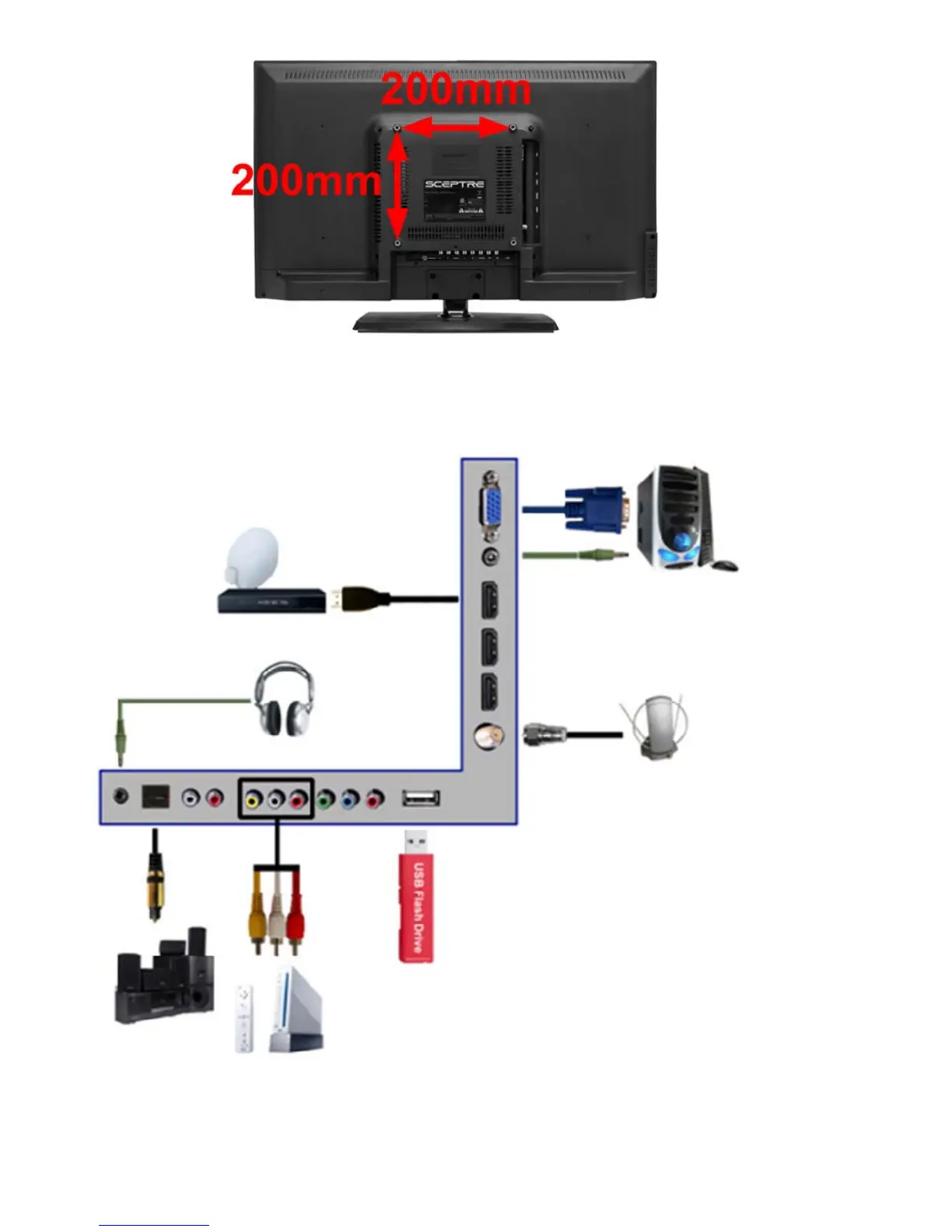

Rear View Mounting Pattern
Mounting Specification: 200mm x 200mm using screw size M6. Length of screw should not exceed 10mm. Please Note:
The 10mm length of screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws,
you should add the original 6mm to the thickness of your mounting plate in order to get the total screw length.
Connecting Your Cables
The following picture offers a suggestion for connecting most of your audio video equipment.
TV Tuner is optional. It may or may not be equipped in your product. Please check with the authorized seller, authorized distributor
or Sceptre Customer Service for further information.
