16
MON 100
Schaeffler Technologies
High precision bearings for combined loads
Before the bearing is pushed into place, align the hole pattern
in the bearing to the hole pattern in the adjacent construction.
For example, threaded rods can be used.
Push the bearing onto the shaft, taking care not to tilt the bearing.
Insert the fixing screws in the holes and tighten finger tight.
In the case of axial angular contact ball bearings ZKLDF,
rotate the unlocated bearing ring. This will centre the inner rings.
Tighten the fixing screws in a crosswise sequence using a torque
wrench in three stages to the specified tightening torque M
A
.
In the case of axial angular contact ball bearings ZKLDF,
rotate the bearing ring.
Tighten the fixing screws in three stages using different tightening
torques, see page 18:
■
stage 1: 40% of M
A
■
stage 2: 70% of M
A
■
stage 3: 100% of M
A
After fitting of the bearings, retighten or remove the retaining
screws.

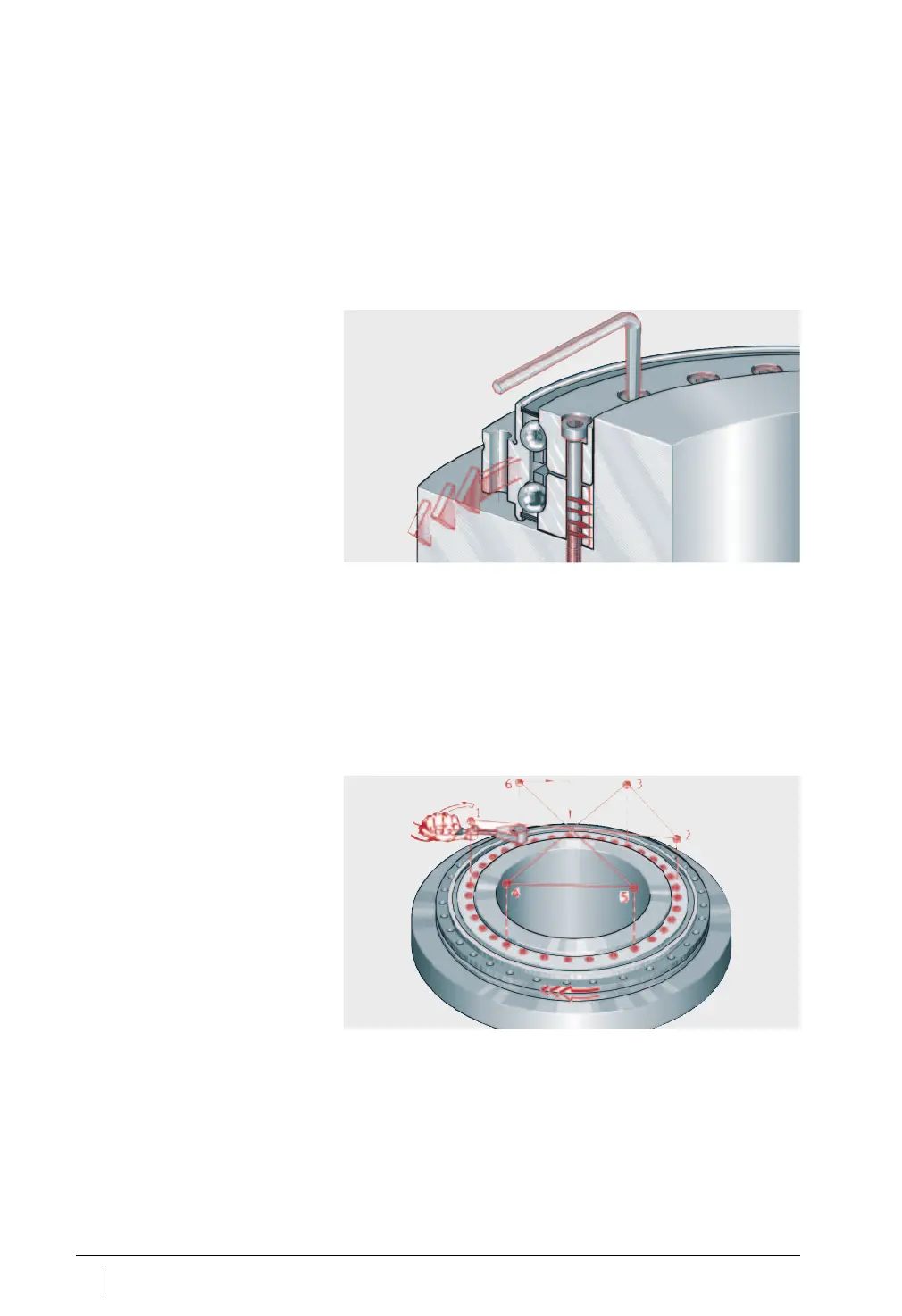

Figure 8
Rotating the unlocated bearing ring
Figure 9
Locating the inner ring
