Schaeffler Technologies
MON 100
17
Locating the bearing outer ring
The seating surface for the bearing outer ring in the housing
should be lightly oiled or rubbed with solid lubricant.
Fit the outer ring of the bearing and shaft assembly in the housing
bore.
Insert the fixing screws in the holes and tighten in a crosswise
sequence using a torque wrench in three stages to the specified
tightening torque M
A
.
Tighten the fixing screws in three stages using different tightening
torques, see page 18:
■
stage 1: 40% of M
A
■
stage 2: 70% of M
A
■
stage 3: 100% of M
A

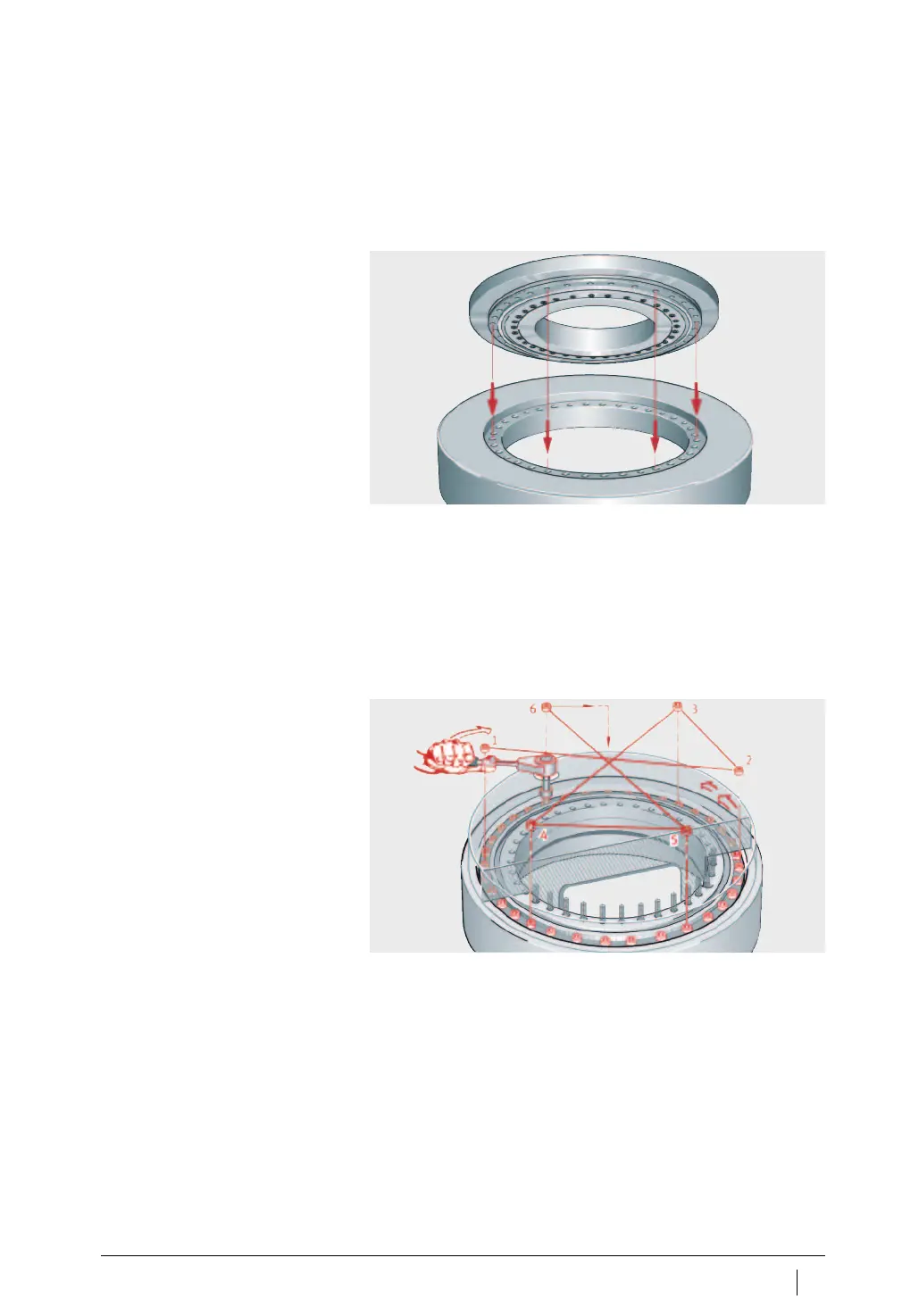

Figure 10
Insert the outer ring
into the housing bore
Figure 11
Locating the outer ring
