An internal shunt monitors the charge current and makes available a data
telegram on the LIN bus. Refer to the instructions for the associated control
panel with bus connection for whether a display is possible (see also the
block diagram in Appendix E).
5 Layout
1
2
3
4
5
1578 9 10 111213
14 16 17 18 19 20
24
23
22
6
21

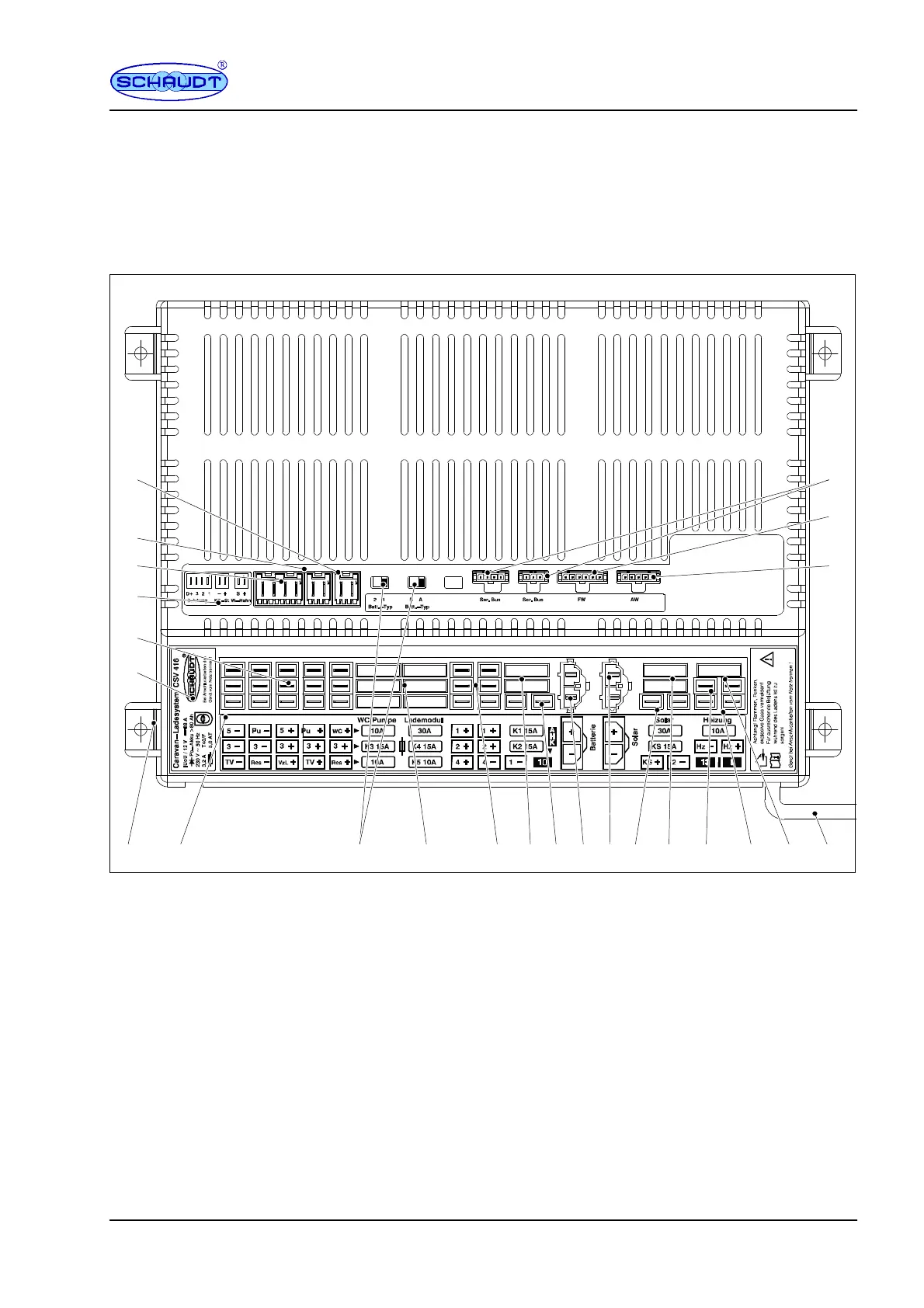

Fig. 4 Front view of CSV 416 A caravan charging system
1
2
3
4
5
6
7
8
9
10
11
12
Connector for water tap
Connector for refrigerator controller
Connectors for switching outputs 1, 2, 3 and D+
Adhesive label for functions (top)
Connectors for circuits 3 and 5, WC, pump, TV,
awning light and spare
Nameplate
Housing
Adhesive label for functions (front)
Battery selector switch 1/2 and A/B
Flat vehicle fuses, charger module
Circuits 3 to 5, spare
Connector for circuits 1, 2 and 4
Fuses for circuits 1 and 2
13
14
15
16
17
18
19
20
21
22
23
24
Connector for trailer coupling plug 10
Connector for caravan battery
Connector for solar charge regulator LR ...
Connector for refrigerator supply
Flat vehicle fuses, solar regulator and refrigera-
tor supply
Connector for heater
Connector for plug for trailer couplings 12 and 9
Flat vehicle fuse, heater
Mains cable
Connector for wastewater tank sensor
Connector for water tank sensor
LIN bus connectors
Monitoring of the
charge current (from
05/2021)
