Operating Instructions Caravan-charging system CSV 416
14
Date: 30.05.2021 8050111 BA / EN
6 Technical details
6.1 Mechanical d etails
320 x 217 x 111 (W x D x H in mm), including attachment feet
2.0 kg
PA (polyamide), gentian blue (RAL 5010)
Aluminium, bare
6.2 Electrical details
230 V AC voltage 10 %, 47-63Hz sinewave, protection class I
Approx. 3.2 A at full load
Approx. 3.0 W in idle
Lead-acid, lead-gel, AGM (1/2) or lithium batteries from 80 Ah
18 mA (Sleep-Mode) @12,6V; plus consumption of refrigerator control
electronics
Conditions for the measurement:
F approx. 10 minutes after disconnection from the mains
F 12.6V battery voltage
F All consumers switched off
F 12 V main switch OFF
12 V outputs A maximum of 90% of the nominal cur-
rent
of the relevant fuse may be
drawn.
D+ output Approx. 2.5 A
Charge curve IUoU (in 5 phases)
End of charge voltage between 14.3 V and 14.8 V
Charge current 28 A in the entire mains voltage range,
limited electronically
Voltage for float charge between 13.2 V and 13.8 V (depending on
battery type), with automatic
switchover
New charge cycle, with battery voltage below 13.2 V
Switchover to main charge and 13.8 V (depending on battery type)
with a couple of seconds delay
U
charge
V
U
VL
U
EL
U
R
t
t
VL
t
R
t
F
t
EL

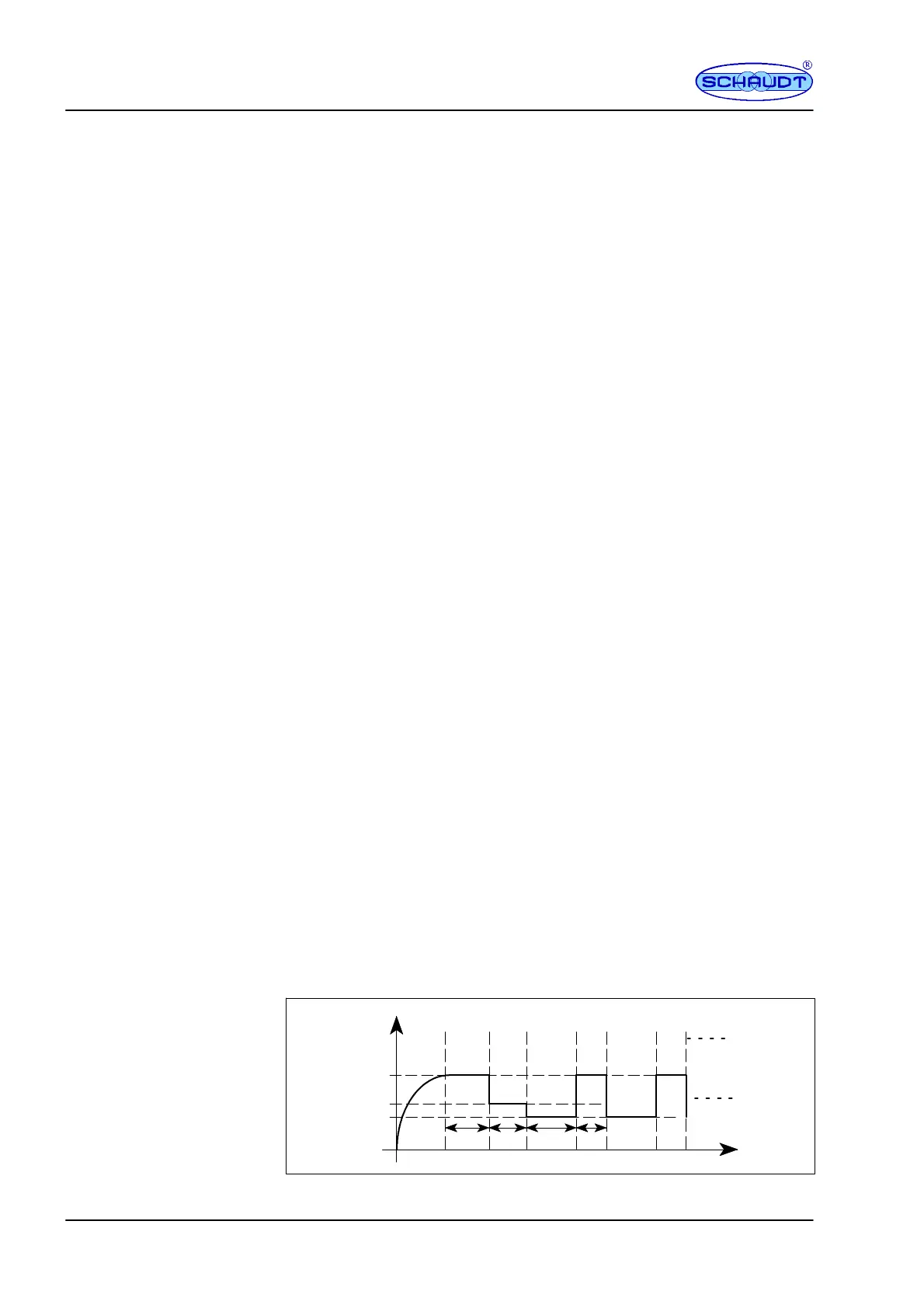

Fig. 5 Example of the charging voltage curve with the CSV 416 power supply
Dimensions
Weight
Casing
Base plate
Mains connection
Current consumption
Suitable batteries
Standby current from
Caravan battery
Current-carrying
capacity
Battery charging
caravan battery
connected to mains
