Operating Instructions Electroblock EBL 211
14
Date: 22.01.2016 9110476 BA / EN
D Layout
12
23 4
5
6
7
8
13
10
1
11
9

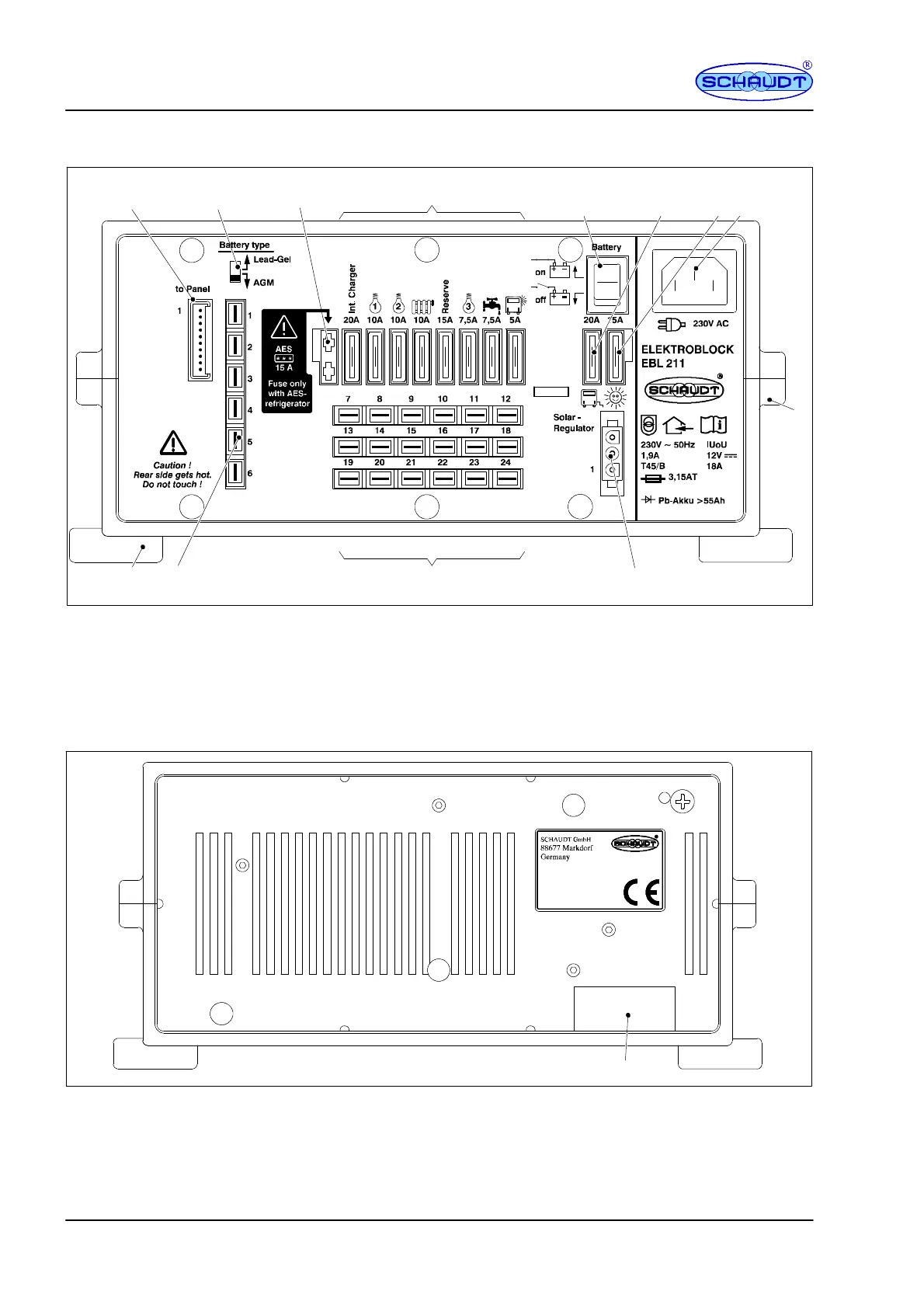

Fig. 4 Layout of the EBL 21 1 electroblock (front)
1 Connector for control panel
2 Battery switchover (types gel / AGM)
3 Flat vehicle fuse for AES refrigerator
4 Flat vehicle fuses for consumers
5 Battery cut--out
6Stepfuse
7 Flat vehicle fuse for solar regulator
8 Mains connection
9 Housing
10 Connection block, solar regulator (supply)
11 6.3 mm consumer connectors
12 Connector block for batteries
13 Device feet
1
Fig. 5 Layout of EBL 211 electroblock (rear)
1 Cover
