Schaudt LRM 1218 Installation Instructions

Installation Instructions Solar systems (controller and panel)
10
Date: 20.09.2018 9990314 MA / EN
6 Connecting the LT 320 in con ju n ctio n with LRM 1218
The following sets are required for the connection variants in Sections 6.1 to
6.3:
F Part no. 9990314: LRM 1218 with connector material
F Part no. 9990298: LT 320 with connector material
Only set 9990314 is required for the connection variant in Section 6.4.

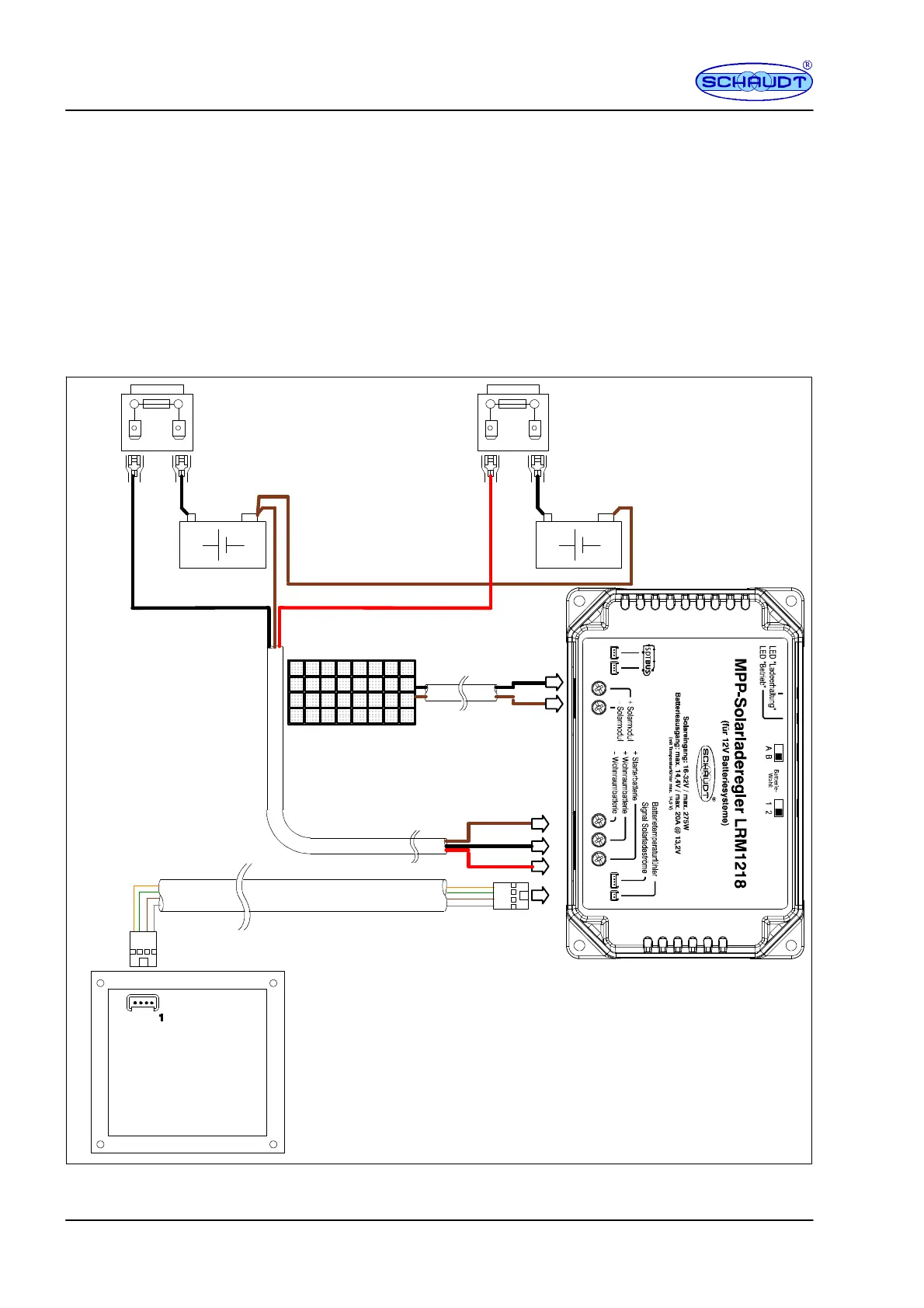

6.1 LRM 1218 and third party system
LRM 1218
LT 320
White
Yellow
Green
Brown
+--
Leisure area
battery
Rear
+--
Starter
battery
F
20 A
F
20 A
Solar module(s)
--
+
+
--
+
--
--
+
Brown
Black
Red
Brown
Brown
Black
Red
Part no. 9340171
Part nos. 1320114 + 1320159 Part nos. 1320114 + 1320159
Fig. 5 LT 320 and LR1218 for third party system

Schaudt LRM 1218 Specifications

General

Brand	Schaudt
Model	LRM 1218
Category	Controller
Language	English
