Schaudt LRM 1218 Installation Instructions

Installation Instructions Solar systems (controller and panel)
8
Date: 20.09.2018 9990314 MA / EN
5.3 LR 1218 and Schaudt EBLs with 2-pin solar connector, and
adapter for the starter battery
F
LR 1218
LT 320
White
Yellow
Green
Brown
1A
Rear
Solar module(s)
--+
--
+
--
+
3
2
1
Brown
Brown
Black
Red**
Black
Black
Brown
Yellow
Brown
Red Red
Vehicle
3
2
1
4
5
Part no. 9340142
Part no. 9340144*
Part nos. 1320114 + 1320151
2 x part no. 1450301
2 x part no. 9340205
Part no. 9340202
* Adapter for charging the
starter battery; suitable only for
EBLs with 5-pin connector to
connect the fridge
** Disconnect red
cable prior to
installation and pull out
of protective sleeve.

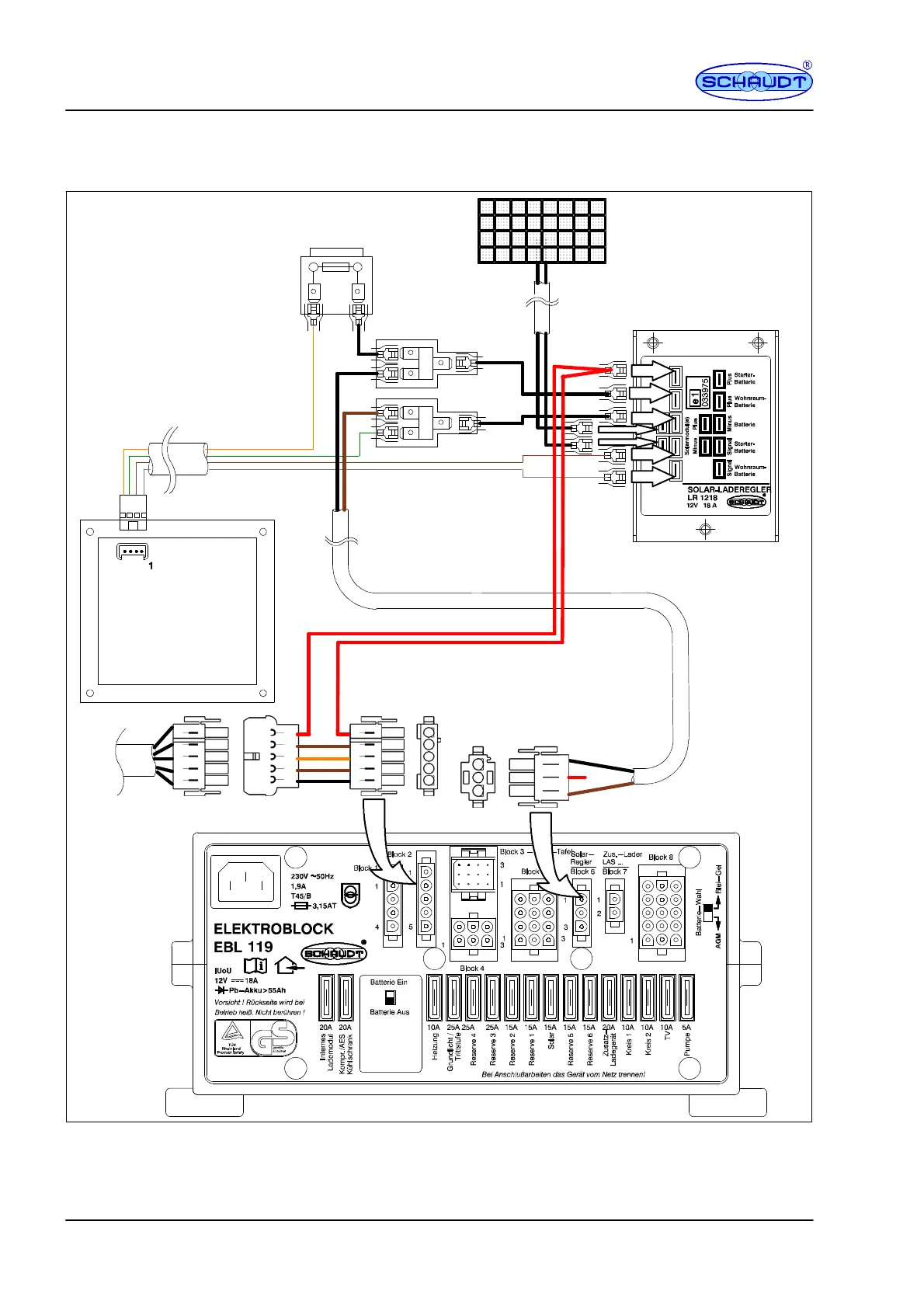

Fig. 3 LT 320 and LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL
119)
Solar module(s) and their connector cables are not included in the delivery.
