Schaudt LRM 1218 Installation Instructions

Installation Instructions Solar systems (controller and panel)
16
Date: 20.09.2018 9990314 MA / EN
7.3 LRM 1218 with connection to SDTBUS and LT 320
The following sets are required:
F Part no. 9990314: LRM 1218 with connector material
F Part no. 9990298: LT 320 with connector material
LRM 1218
Solar module(s)
3
2
1
Red
Brown
Brown
Black
Red
Black
White
Brown
--
+
--
+
Green
White
Brown
Green
SDTBUS to
panel* and bus modules
LT 320*
Rear
Part no. 9340142
Part no. 9340207
Part no. 9340171
White
Yellow
Green
Brown

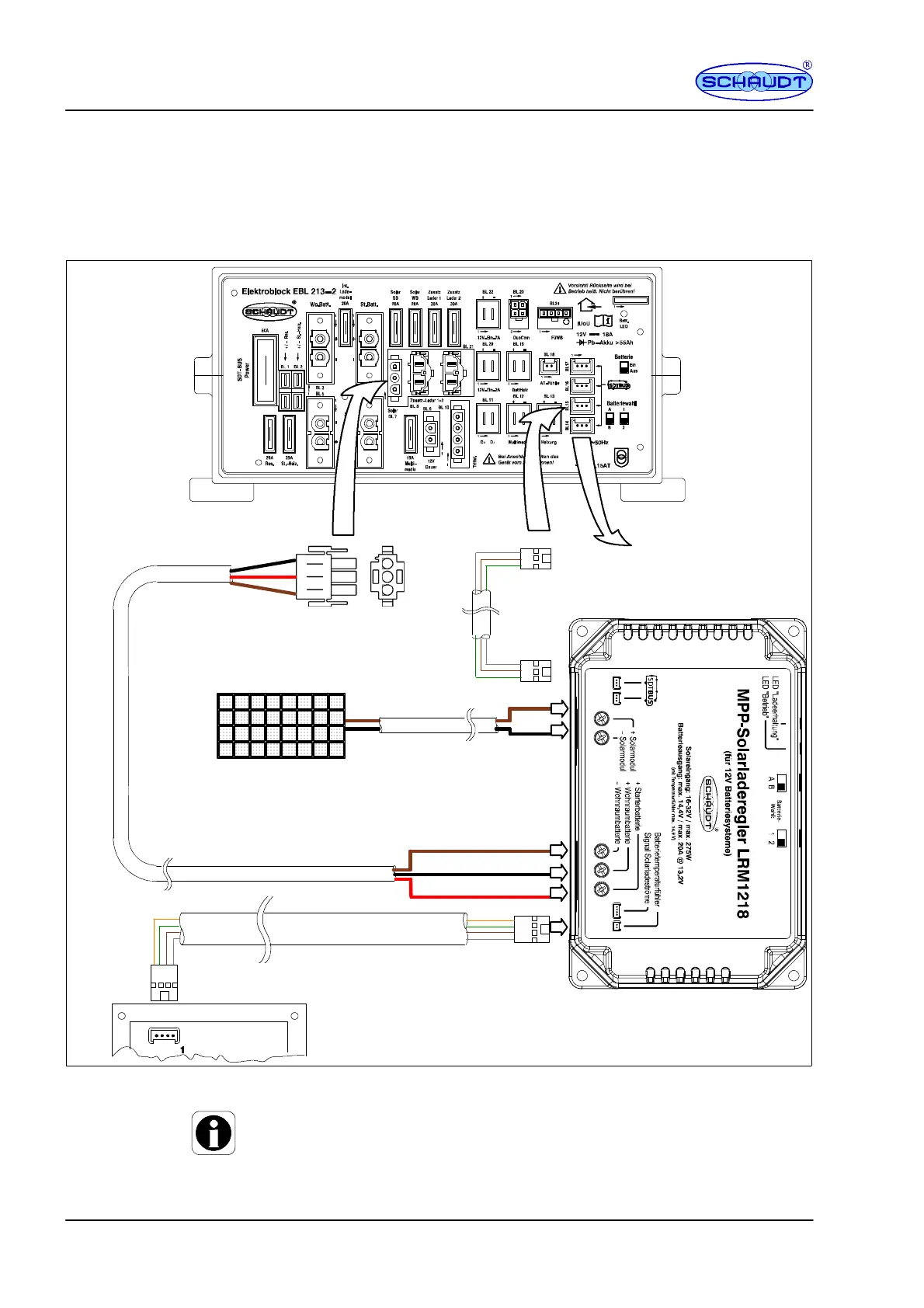

Fig. 11 LRM1218 to Schaudt bus-compatible EBL and additional display via LT320
Y
*In this case, the solar power is displayed on a suitably configured main
control and display panel (e.g. LT 13 or DT 713) and on the DT 320. The
display on the DT 320 however is also possible when the system is shut
down or the 12 V supply is switched off. This means battery charging can
also be checked whilst the vehicle is idle (such as in winter).
