Installation Instructions Solar systems (controller and panel)
15
Date: 20.09.2018
9990314 MA / EN
7.2 LRM 1218 with connection to SDTBUS
Set 9990314 (LRM 1218 with connector material) is required.
LRM 1218
Solar module(s)
3
2
1
Red
Brown
Brown
Black
Red
Black
White
Brown
--
+
--
+
Green
White
Brown
Green
SDTBUS to
panel* and bus modules
Part no. 9340142
Part no. 9340207

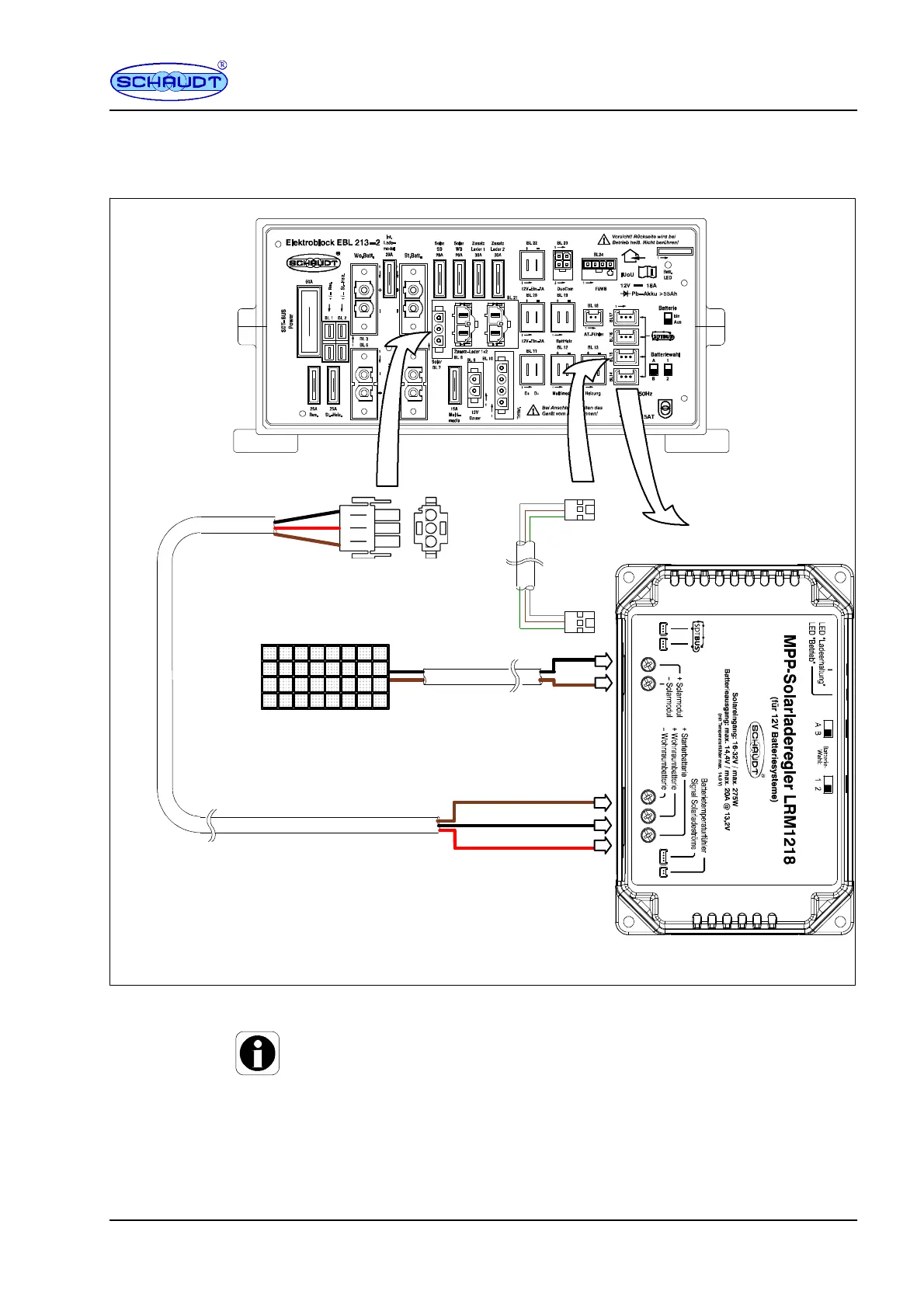

Fig. 10 LRM1218 to Schaudt bus-compatible EBL with 3-pin solar regulator connector
Y
* When a panel which supports a solar power display is connected here
(such as an LT 13 or DT 713), the solar power can be displayed there.
This function may need to be activated first. Refer also to the installation
guide for the panel in question.
