Schaudt LRM 1218 Installation Instructions

Installation Instructions Solar systems (controller and panel)
6
Date: 20.09.2018 9990314 MA / EN
5 Connecting the LT 320 in con ju n ctio n with LR 1218
The following sets are required for the connection variants in Sections 5.1 to
5.3:
F Part no. 9990219: LR 1218 with connector material
F Part no. 9990298: LT 320 with connector material
Only set 9990219 is required for the connection variant in Section 5.4.
5.1 LR 1218 and third party system
F
LR 1218
LT 320
White
Yellow
Green
Brown
+--
Leisure area
battery
1A
Rear
+--
Starter
battery
F
20 A
F
20 A
Solar module(s)
--+
--
+
--
+
+
--
+
--
--+
Part nos. 1320114 + 1320151
Part nos. 1320114 + 1320159 Part nos. 1320114 + 1320159
2 x part no. 1450301
2 x part no. 9340205
Part no. 9340202

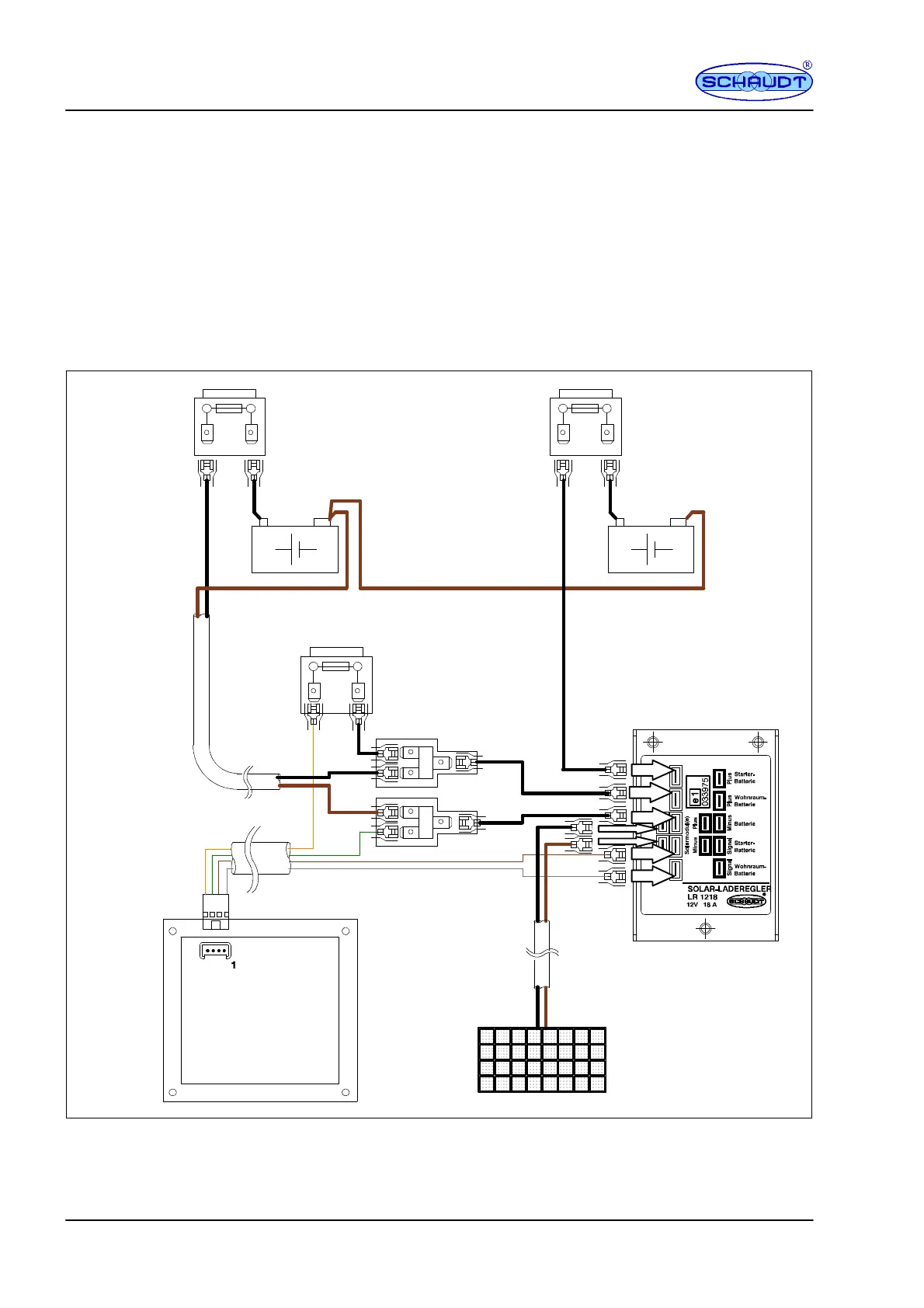

Fig. 1 LT 320 and LR1218 for third party system
The cables between the batteries and Y distributors, and solar module(s)
and their connector cables, are not included in the delivery.
