Schaudt LRM 1218 Installation Instructions

Installation Instructions Solar systems (controller and panel)
12
Date: 20.09.2018 9990314 MA / EN
6.3 LRM 1218 and Schaudt EBLs with 2-pin solar connector,
and adapter fo r th e starter battery
LRM 1218
LT 320
Rear
Solar module(s)
--
+
--
+
Brown
Black
White
Yellow
Green
Brown
3
2
1
Brown
Black
Red**
Black
Brown
Yellow
Brown
Red Red
Vehicle
3
2
1
4
5
Part no. 9340142
Part no. 9340204*
Part no. 9340171
* Adapter for charging the
starter battery; suitable only for
EBLs with 5-pin connector to
connect the fridge
** Disconnect red
cable prior to
installation and
pull out of
protective sleeve.

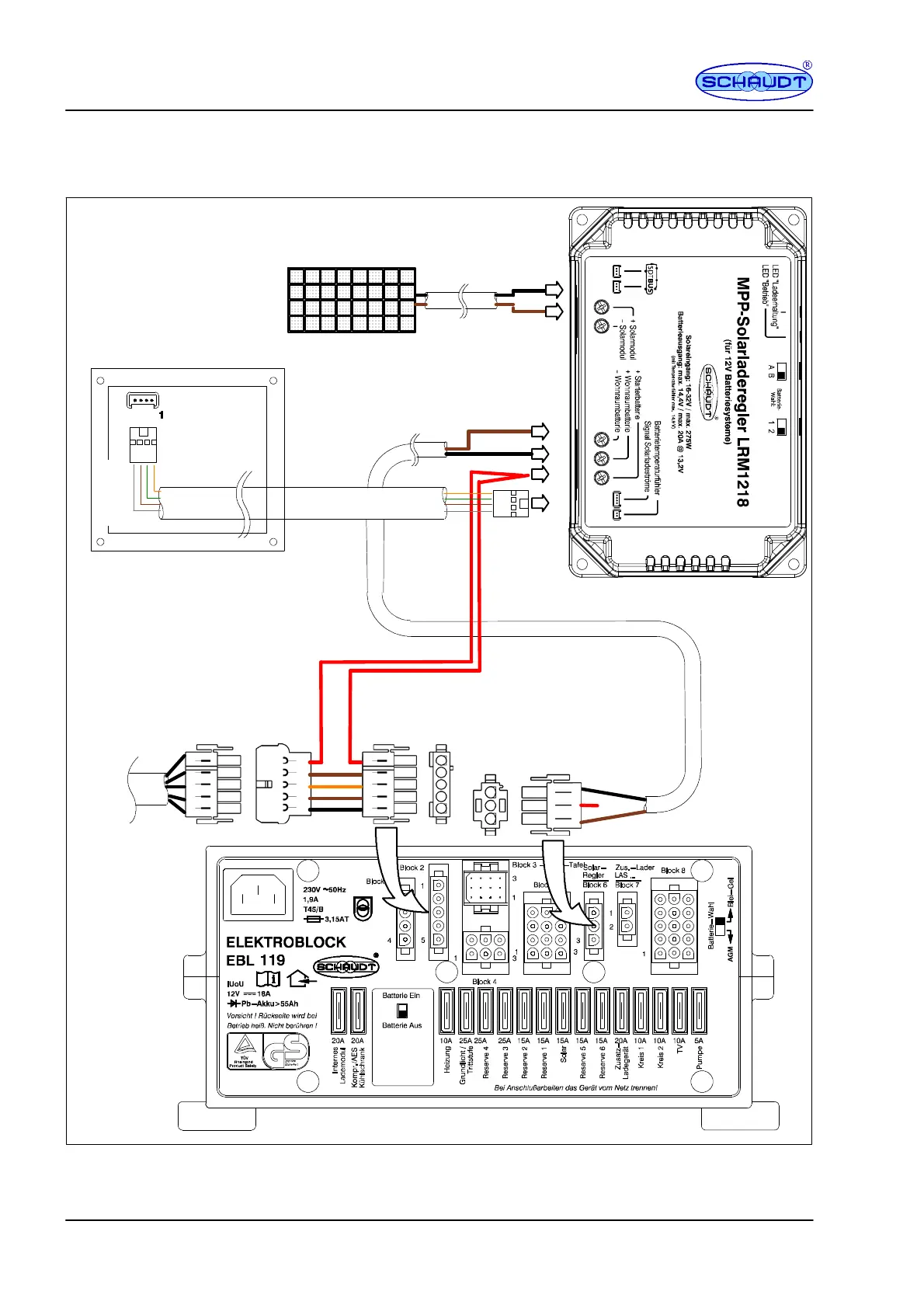

Fig. 7 LT 320 and LRM 1218 to Schaudt EBL with 3-pin solar regulator connector
(e.g. EBL119)
