Installation Instructions Solar systems (controller and panel)
9
Date: 20.09.2018
9990314 MA / EN
5.4 LR 1218 and Schaudt EBLs with 3-pin solar connector, and
panels with solar power display
LR 1218
White
Brown
Solar module(s)
--+
--+
3
2
1
Red
Brown
Brown
Black
Red
Black
White
Brown
Panel
Part no. 9340142
Part no. 9340143
Panel

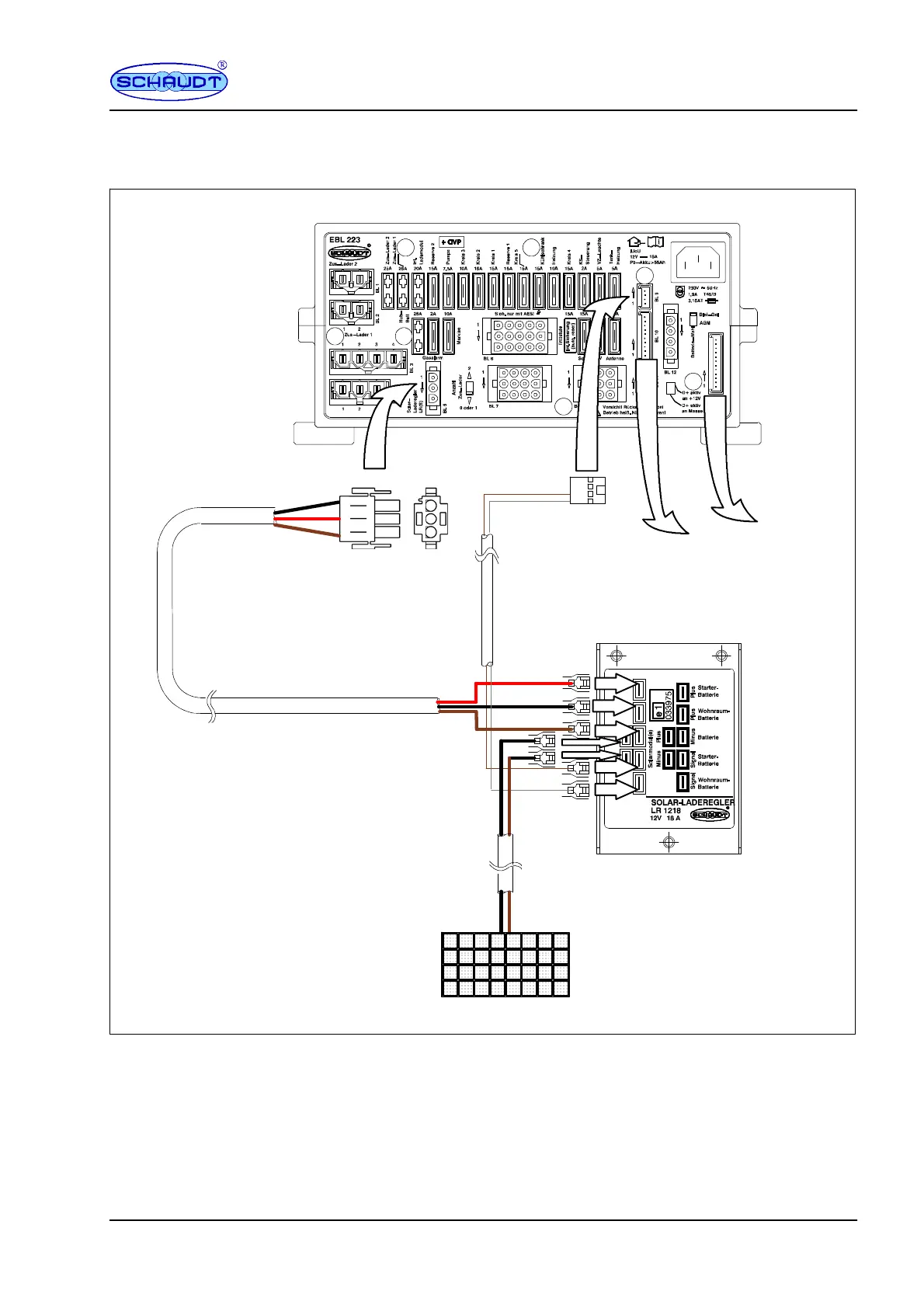

Fig. 4 LR1218 to Schaudt EBL with 3-pin solar regulator connector (e.g. EBL 223)
Solar module(s) and their connector cables are not included in the delivery.
