4.2 Components installation
4.2.1 Pump group
The pump group must be installed as close as possible to the waterline as (maximum no more than 600mm
above) and as close as possible to the water inlet (2m max). Therefore, it is very important to avoid starting
the system if the intake valve is closed or if inlet filters are clogged.
The pump group should be installed in a ventilated area, with the purpose of aiding the cooling of the motor.
The max allowed room temperature must not exceed 40°C.
Avoid the contact or the proximity with inflammable material or liquid, since the motor surfaces can reach
elevated temperatures. Avoid locating the pump wherever a possible loss of water can involve damages or
jeopardize its safety. The pump group must be installed on a base sufficiently horizontal, suitable to sustain
the weight of the group. The pump group is normally fixed on the support structure by passing bolts.
4.2.2 Watermaker group
Install the watermaker above the pump. The max permitted room temperature must not exceed 40°C. It
can be placed either horizontally or vertically. The watermaker must lie completely on a flat surface. The
supplied rubber-based adhesive must absolutely be stuck to the supporting surface. Once in place on
the supporting surface, the watermaker must be fastened with the provided L-brackets. In no way must the
watermaker be suspended using solely the L-brackets but it must rest on a flat surface at all times.
Otherwise a shelf is necessary as base to support the weight of the watermaker.

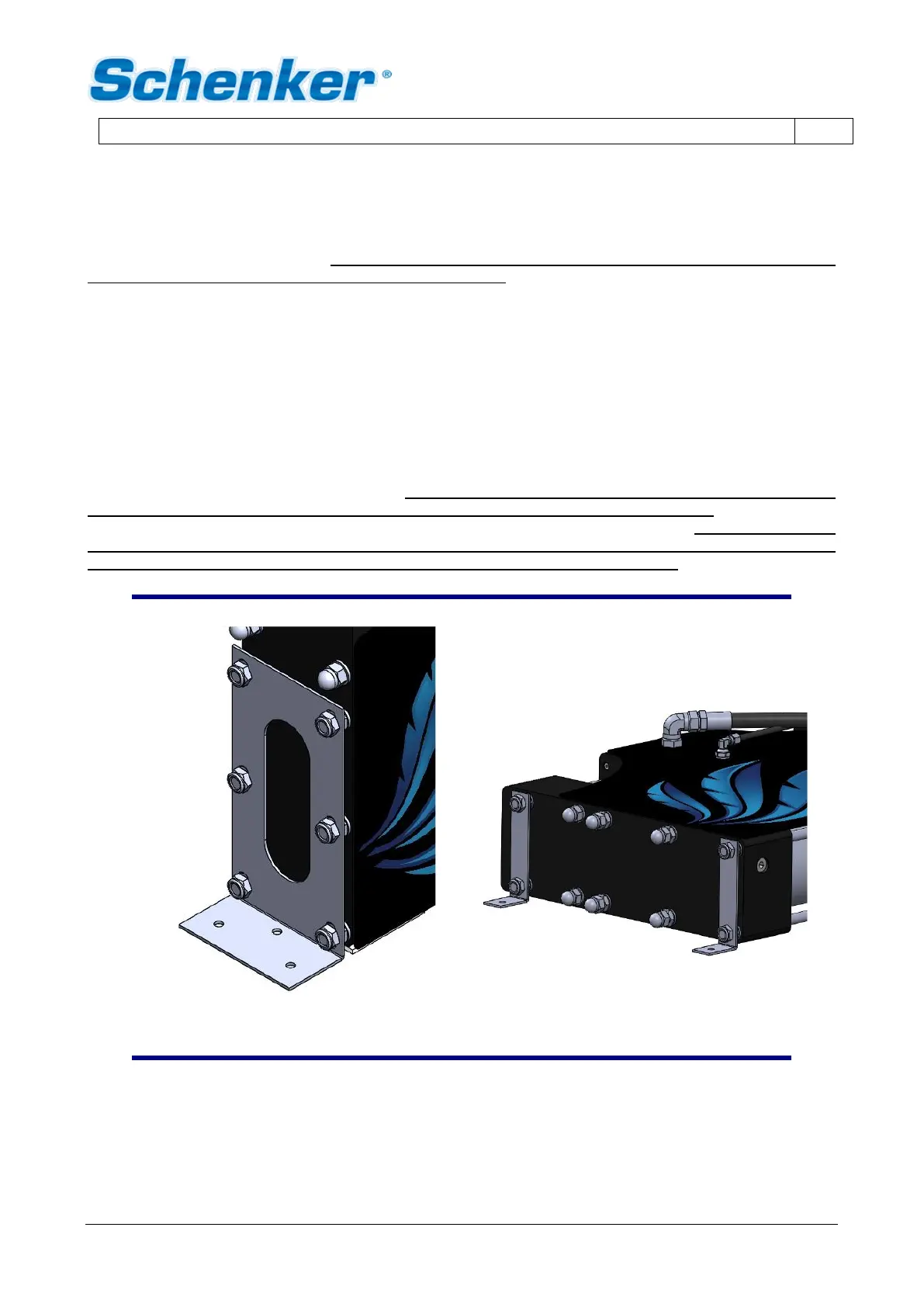

VERTICAL AND HORIZONTAL FIXING
FIG. 4-1
