Do not carry out folds or grooves without using proper pro-
tective devices over the saw table.
Do not use this electrical power tool to create slashes
(grooves finished on the work piece itself).
Always use the transporting means for the transport of the
electrical power tool. Never use the protective devices for
handling and transporting the device.
Make sure that the upper part of the saw blade is covered;
e.g. by the protective device.
Warning! During operation this electrical power tool pro-
duces an electromagnetic field which can influence active
or passive medical implants under certain conditions. In
order to avoid the risk of serious or fatal injuries, we rec-
ommend persons with medical implants to consult with
their doctor and the manufacturer of the medical implant
before operating the electrical power tool
Make sure, that you select a saw blade that is appropriate
for the material you intend to cut.
Wear appropriate, personal protective equipment such as:
- Ear protection to reduce the risk of getting hard of hearing
- Respiratory protection to reduce the risk of inhaling dan-
gerous dust
- Be sure to wear gloves when working with saw blades
and coarse materials
Where practicable, keep saw blades in a separate con-
tainer.
Connect the power tool to a dust reception facility when
cutting wood. Dust release is influenced by the type of
material you will work on, the importance of local deposi-
tion (acquisition or source) and the proper adjustment of
covering/ deflecting plate/ guide.
Do not use saw blades made out of high-speed steel (HSS
steel).
Use the push stick or the feed lever for sliding the wood,
to guide it safely past the saw blade. In times of non-use
keep the push stick or the push block with the electrical
power tool at all times.
The settings of the machine have to ensure that the top
of the highest saw tooth is positioned just a little higher
than the work piece.
Before switching on the machine, all safety and protection
devices have to be installed according to the instructions.
The saw blade must move freely.
Always check timber, which has been processed before,
for foreign objects (nails, screws, etc.). Remove all foreign
matter.
Before turning on the power supply, make sure that the
saw blade is installed correctly and that the moving com-
ponents can move freely.
Warning: If in doubt, have the machine set by a qualified
person. It is too dangerous to work on assumptions.
Saw Blade – Diagonal Adjustment
The saw blade may be swiveled from 90° to 45° after the
wing nut has been loosened.
Check the 90° and the 45° position before the first and
each subsequent startup.

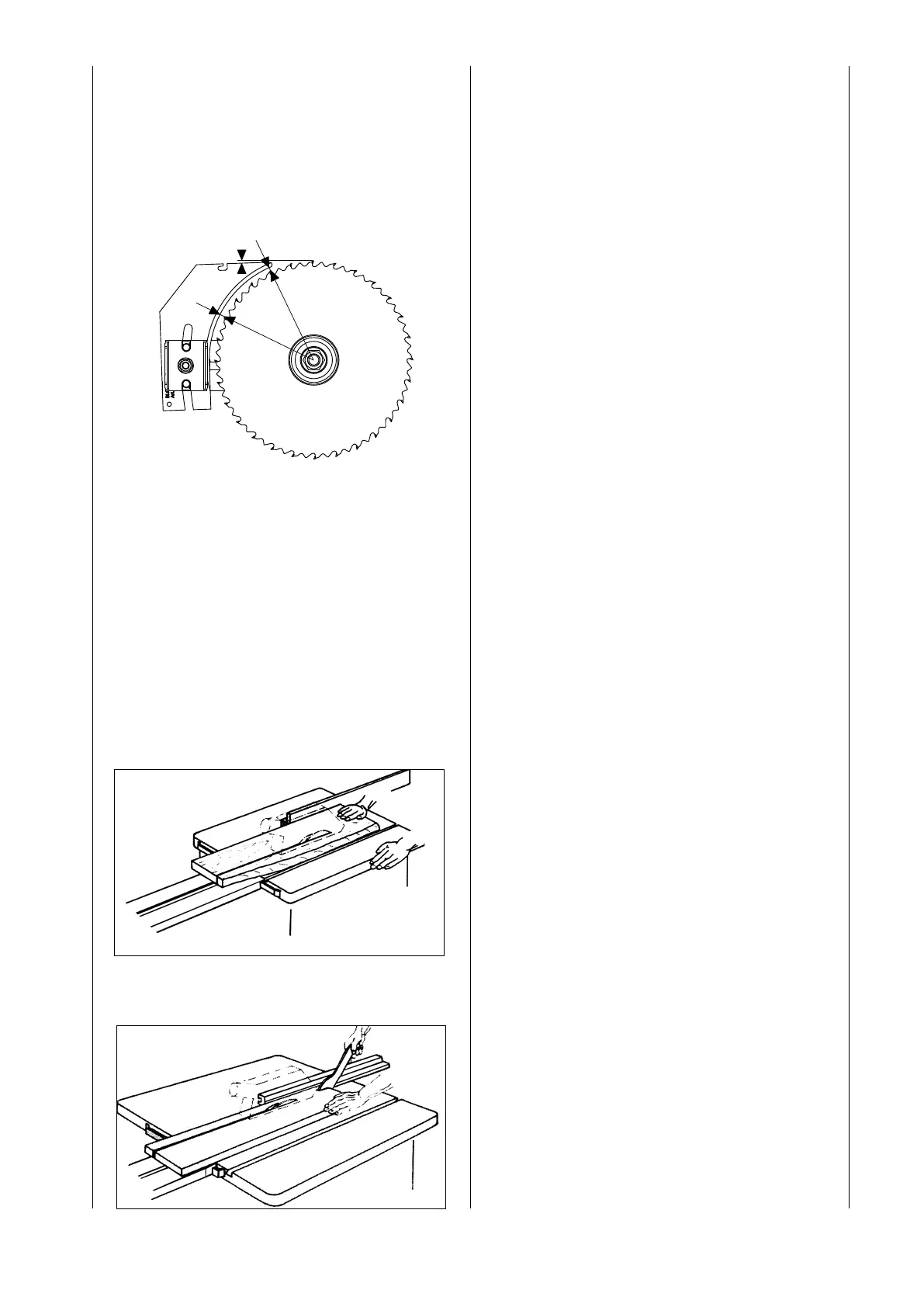

Fig. 22
2mm
3-8mm
3-8mm
Fig. A
Fig. B

Scheppach HS120 Specifications

General

Idle speed	- RPM
Cutting height @ 45°	49 mm
Cutting height @ 90°	83 mm
Product color	Blue, Stainless steel
Placement supported	Freestanding
Input power	2000 W
AC input voltage	230 V
AC input frequency	50 Hz
Saw blade type	Single
Number of teeth	24
Saw blade included	Yes
Number of saw blades	1

Weight and Dimensions

Depth	1690 mm
Width	615 mm
Height	1055 mm
Weight	48600 g
Table depth	800 mm
Table width	550 mm
Blade diameter	315 mm
Base plate width	400 mm
Blade diameter (min)	20 mm
