Schick CDR - Universal Posterior Periapical Tab Holder

B1051044 Rev. B CDR Positioning
8
2.7. Universal Posterior Periapical Tab Holder
REFERENCE
This tab is color-coded YELLOW. As an example, tab
placement on a CDR wired Sensor sheath is shown below.
Placement on wireless Sensor sheaths is identical.

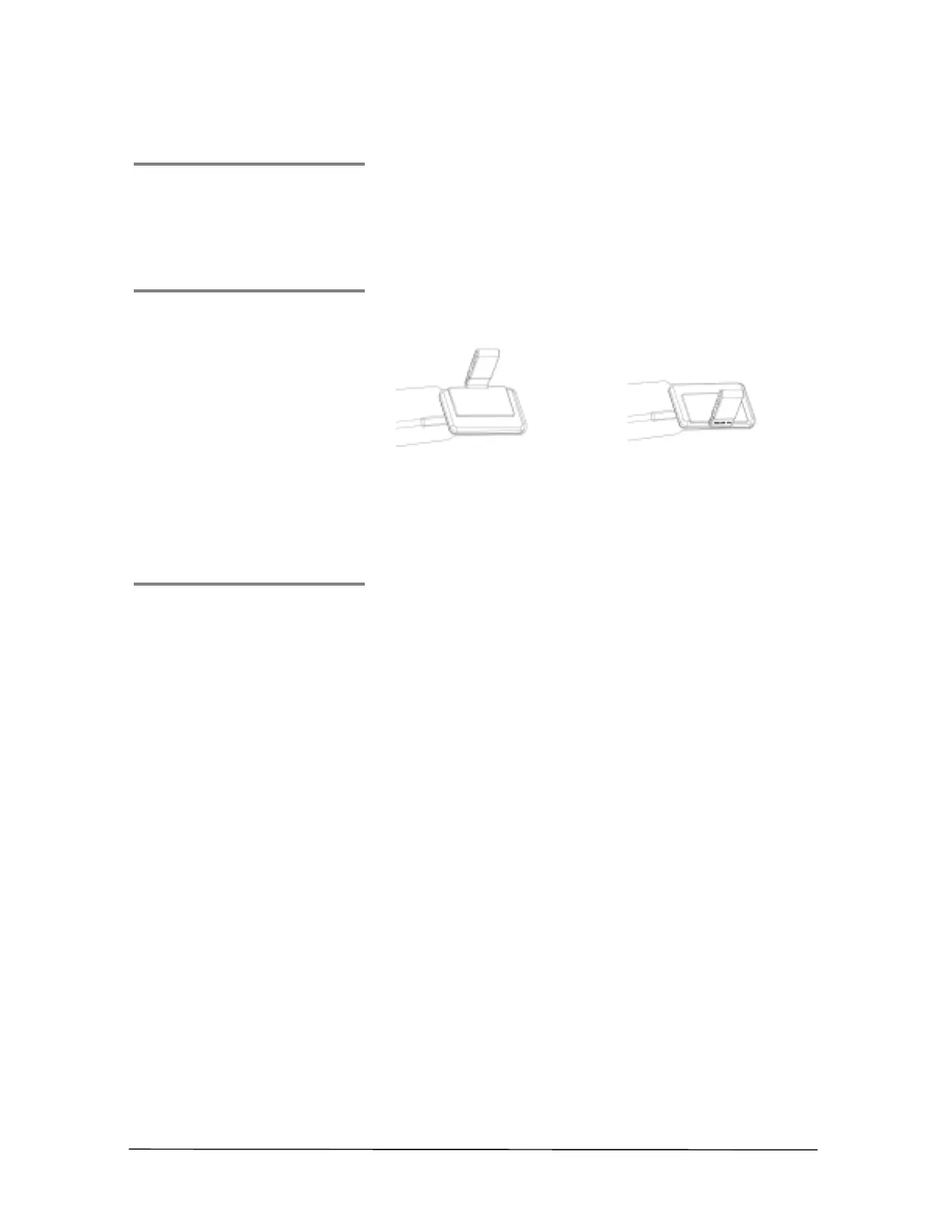

ILLUSTRATION
Placing Periapical Tab on
Sheath (Mandibular) (Step 3)
Placing Periapical Tab on
Sheath (Maxillary) (Step 3)
USAGE
1. Place the sheath on the Sensor, following the steps for
either wired (Table 1) or wireless (Table 2) Sensors.
2. Select periapical tab and remove protective strip from
adhesive.
3. For maxillary images of posterior teeth, place
periapical tab at the bottom edge of the Sensor. For
mandibular images of posterior teeth, place periapical
tab at the top edge of the Sensor.
4. Position Sensor in patient's mouth. Make other X-ray
head or positioning instrument adjustments as needed.
When ready, take X-ray.
5. Reposition tab if required.
6. Dispose of tab and sheath at the end of this patient's
exam.
