B1051044 Rev. B CDR Positioning
4
2.3. Universal Bite Tab Holder
REFERENCE
This tab is color-coded RED. As an example, tab
placement on a CDR wired Sensor sheath is shown below.
Placement on wireless Sensor sheaths is identical.

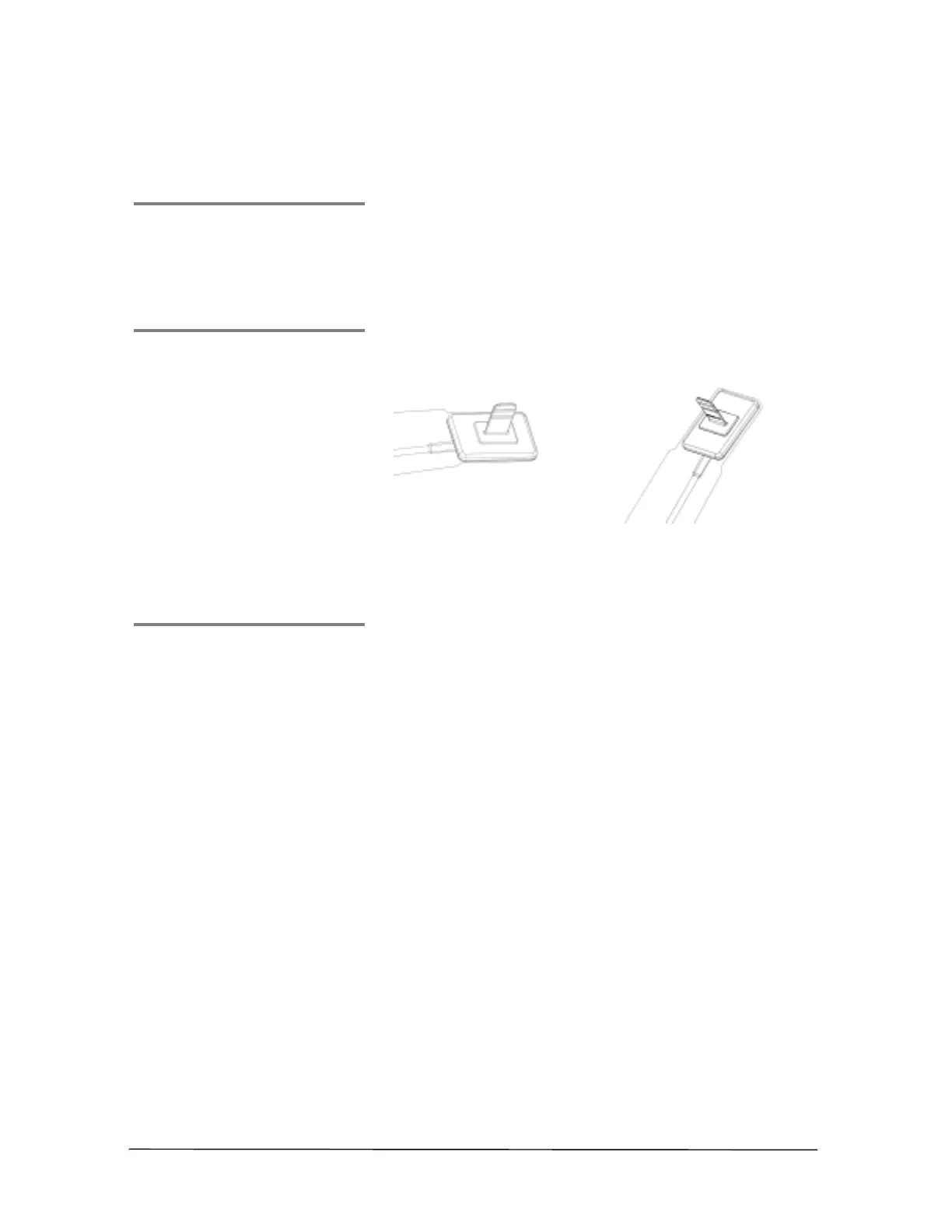

ILLUSTRATION
Placing Bite Tab on Sheath
(Horizontal) (Step 3)
Placing Bite Tab on Sheath
(Vertical) (Step 3)
USAGE
1. Place the sheath on the Sensor, following the steps for
either wired (Table 1) or wireless (Table 2) Sensors.
2. Select bite tab and remove protective strip from
adhesive.
3. For horizontal bitewings, place bite tab horizontally
on the sheath in the center of the Sensor. For vertical
bitewings, place bite tab vertically on the sheath in the
center of the Sensor.
4. Position Sensor in patient's mouth. Make other X-ray
head or positioning instrument adjustments as needed.
When ready, take X-ray.
5. Reposition tab if required.
6. Dispose of tab and sheath at the end of this patient's
exam.
