2.4. Universal Endodontic Tab Holder
REFERENCE
This tab is color-coded GREEN. As an example, tab
placement on a CDR wired Sensor sheath is shown below.
Placement on wireless Sensor sheaths is identical.

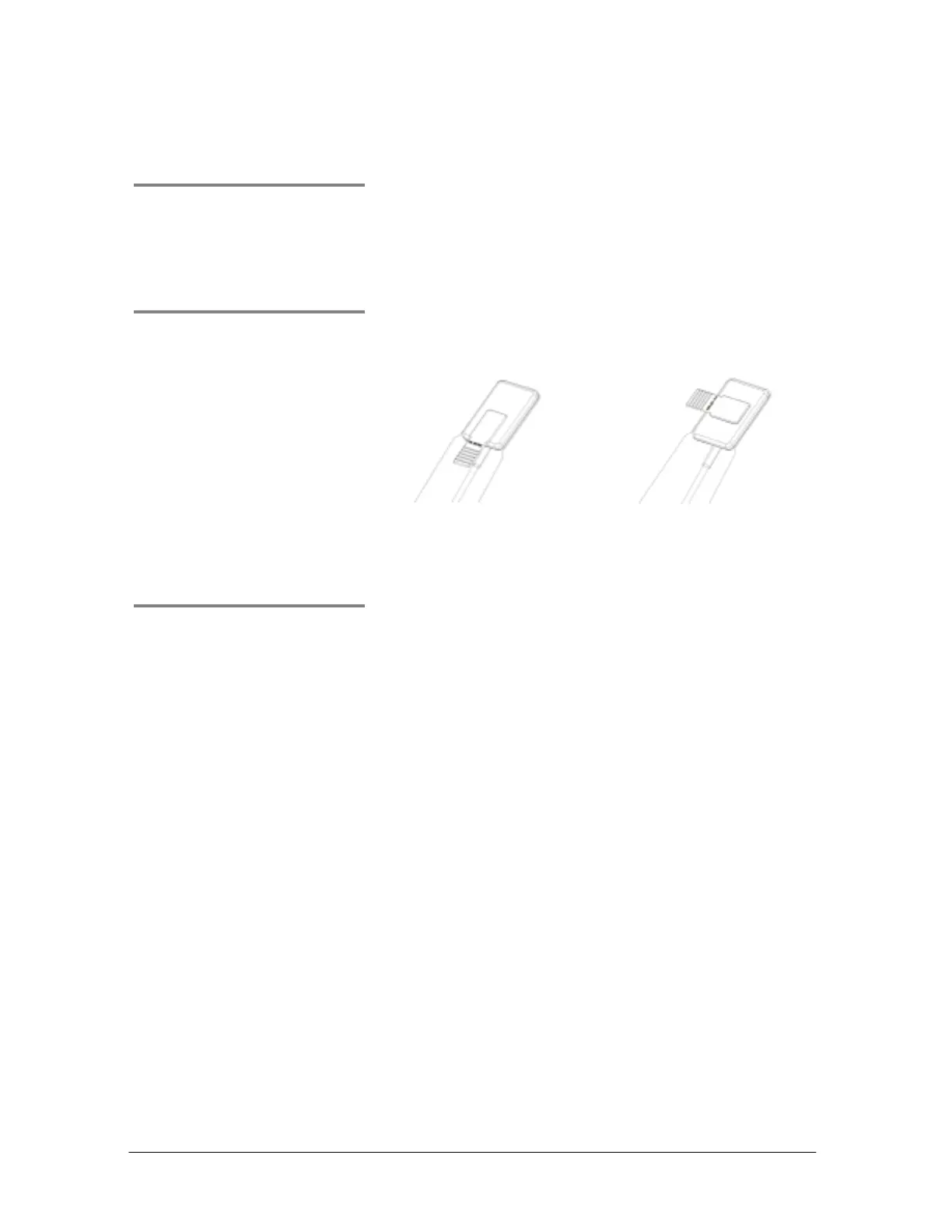

ILLUSTRATION
Placing Endodontic Tab on
Sheath (Anterior) (Step 3)
Placing Endodontic Tab on
Sheath (Posterior) (Step 3)
USAGE
1. Place the sheath on the Sensor, following the steps for
either wired (Table 1) or wireless (Table 2) Sensors.
2. Select endodontic tab and remove protective strip
from adhesive.
3. For posterior images, place endodontic tab at the
center of the Sensor. For anterior images, place
endodontic tab at the edge of the Sensor near the
cable.
4. Position Sensor in patient's mouth. Make other X-ray
head or positioning instrument adjustments as needed.
When ready, take X-ray.
5. Reposition tab if required.
6. Dispose of tab and sheath at the end of this patient's
exam.
