SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue 1 June 1998
Chapter 1
Operating Elements
Settings (cont.)
Defining Lead Sequence & Printout

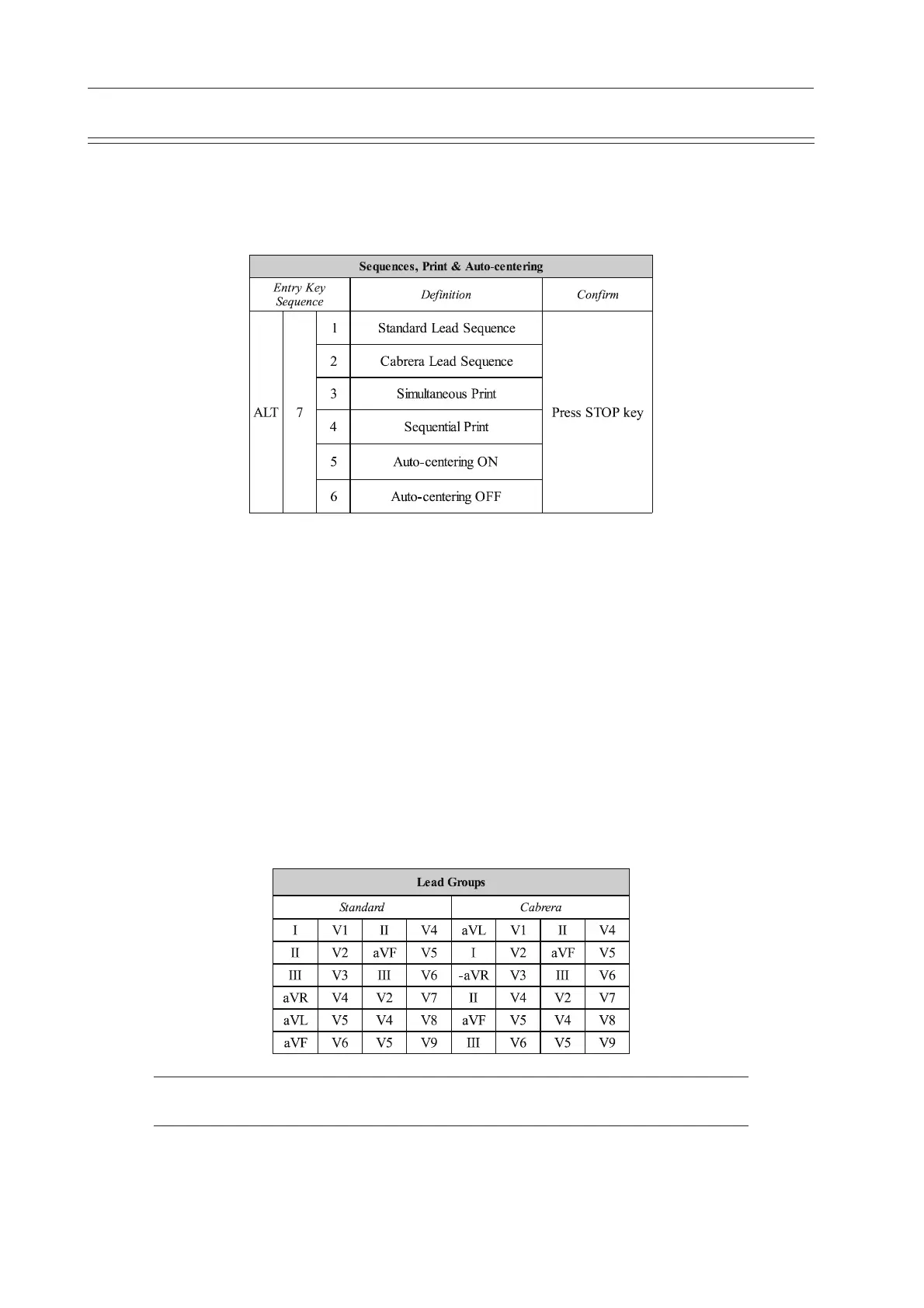

The required settings can be selected as follows:
Confirm the selection by pressing the STOP key
STOP
The selectable printout forms are:
Simultaneous All ECG leads are printed in the same time segment (in auto-
matic mode only).
Sequential Each group is a contiguous time segment of approximately 2.5
or 5 seconds (in automatic mode only).
Auto-Centering ON All ECG traces are centred dynamically for optimal use of paper
width.
Auto-Centering OFF ECG traces are set to a fixed baseline position and may possibly
overlap.
The Standard and Cabrera lead groups available for the AT-2plus are:
Note: If the unit is reset to the default settings (see previous page), the user identification
must be re-entered
