Page 1.20
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue 1 June 1998
Chapter 1
Operating Elements
Automatic Mode (ECG) Settings
Two separate Auto formats can be defined for the AT-2plus. When defining auto format 1 the
key sequence ALT `1` precedes the setting. When defining auto format 2 the key sequence ALT
`2` precedes the setting.

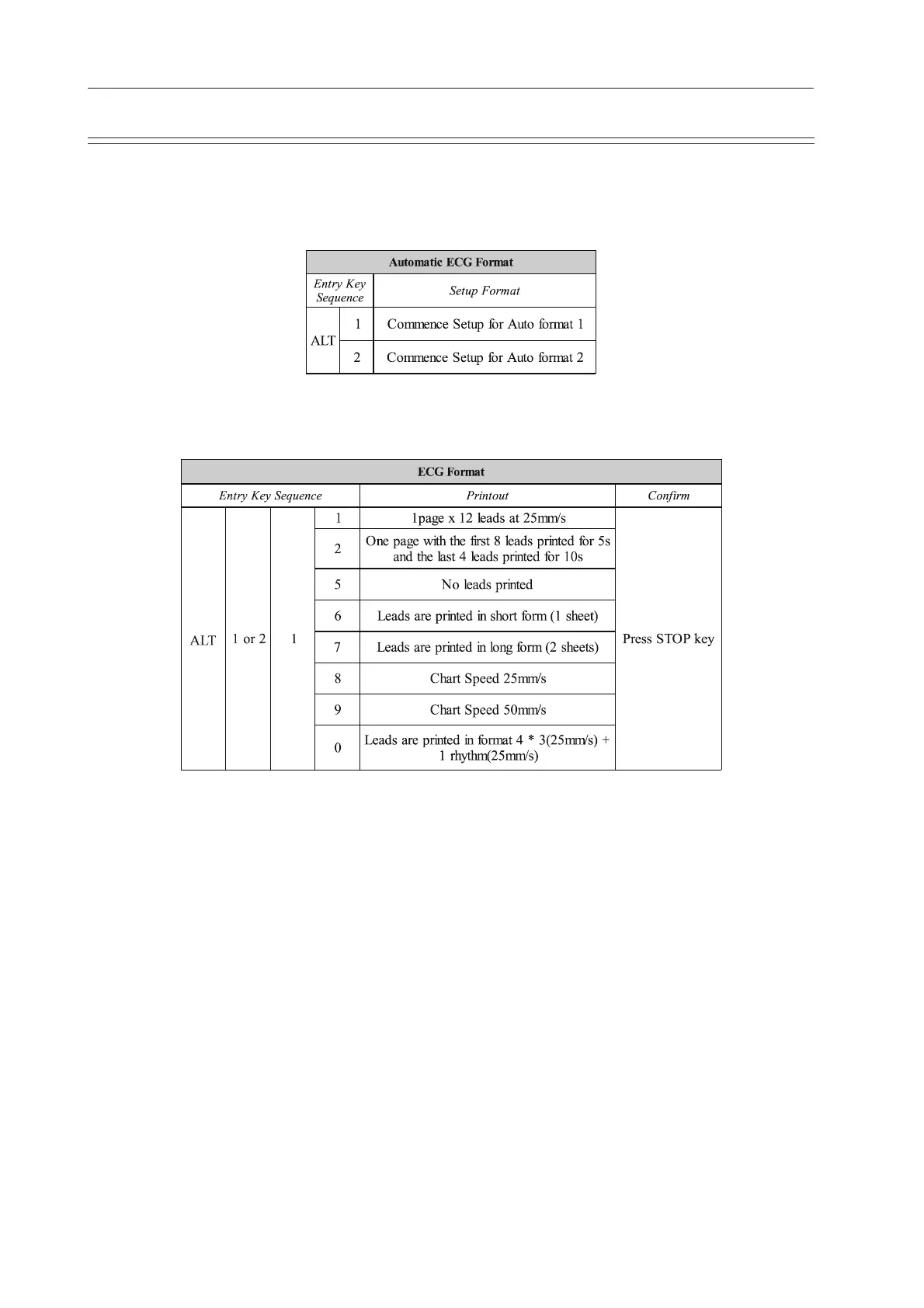

The automatic mode formats are detailed on the following pages. The ECG format is set as
follows:
