Page 3.6
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue 1 June 1998
Chapter 3
Fault Diagnosis

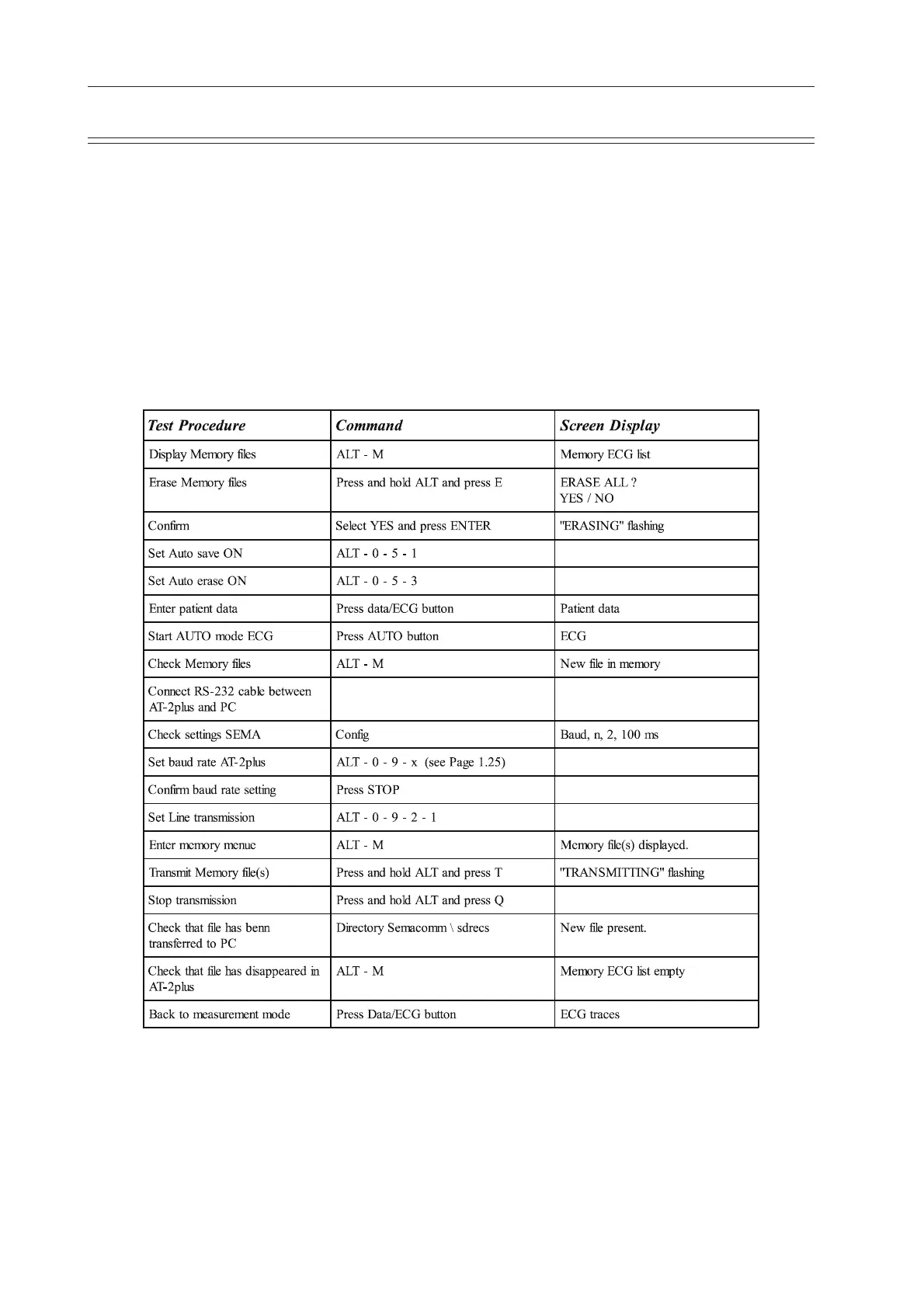

Memory and Data Transmission Check
To perform these tests, the following equipment is needed:
A personal computer (PC) with the SEMA communication program (SEMACOMM)
installed.
An RS-232 cable assembly, Art.No. 2.310 159 for connecting the RS-232 interface on the
AT-2plus with the COM port of the PC.
A patient simulator attached to the patient connector on the AT-2plus.
