2
Warnings and Cautions
WARNING
Warnings indicate potentially hazardous conditions, which if not
avoided or corrected, may cause death or serious injury.
CAUTION
Cautions indicate potentially hazardous conditions, which if
not avoided or corrected, may cause minor or moderate injury.
Cautions may also warn against unsafe practices.
Caution: Cautions indicate a condition that may cause equipment
or property damage only.
Prepare for Installation
Tools Needed
• Phillips screwdriver
• Tape measure
Optional Tools
• Flathead screwdriver
• Torx
TM
driver

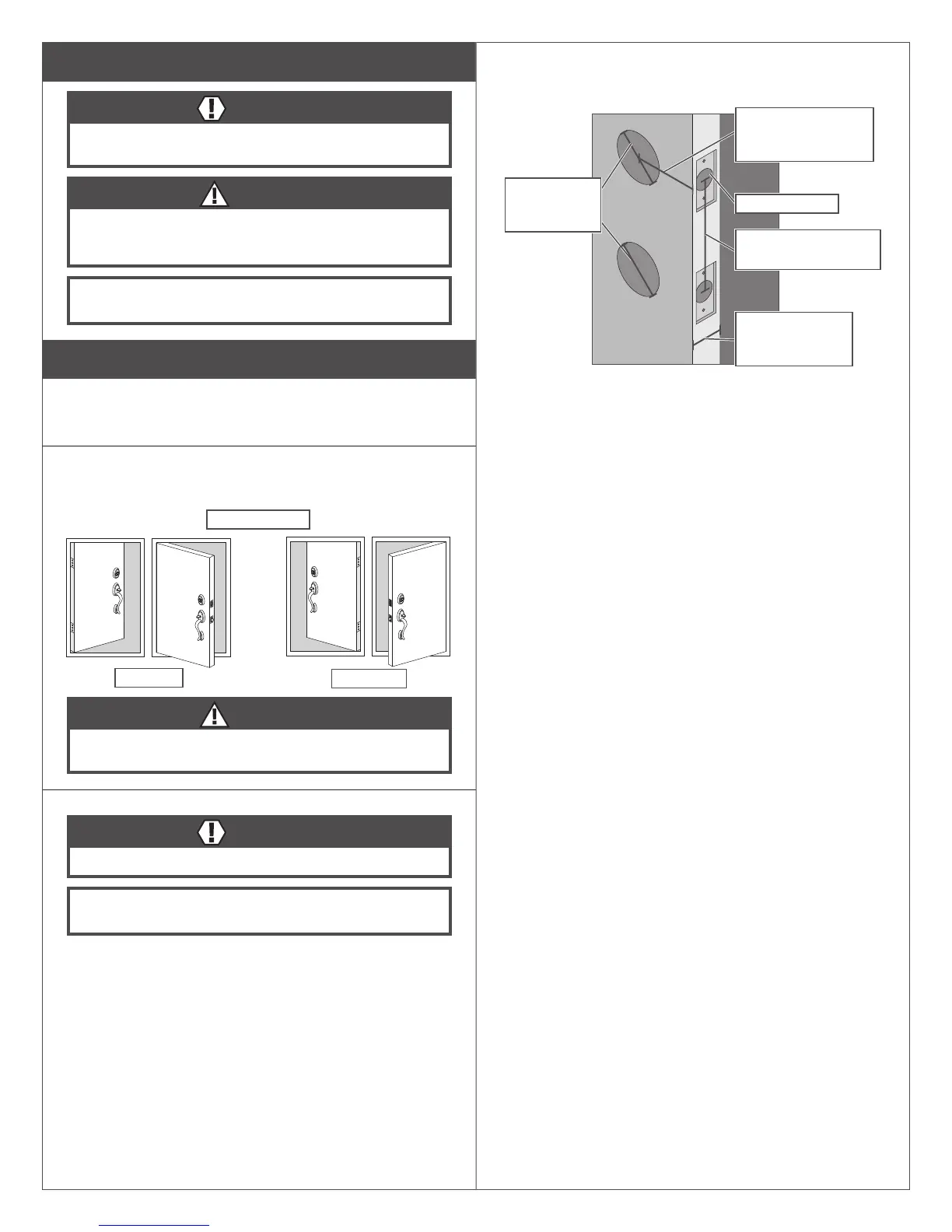

Determine the Handing
Determine the handing of your door. Directions for changing lock
handing are provided throughout the instructions.
Left hand
Right hand
Outside of door
CAUTION
If the handing is incorrect, locking and unlocking could be
reversed, resulting in an unsecured residence.
Important Notes
WARNING
Install and test lock with door open to avoid being locked in or out!
Caution: Use provided bolt!
DO NOT use a power drill for installation!
Check door dimensions.
See consumer.schlage.com/Service-Support for door preparation
instructions if dimensions are different.
Backset
2C\,” OR 2C\v”
(60 mm OR 70 mm)
5Z\x” OR 4”
(140 mm OR 102 mm)
Door Thickness
1C\,” to 1C\v”
(35 mm to 44 mm)
Crossbore
Diameter
2Z\,” (53 mm)
1” (25 mm) Hole
L The recup cannot be installed on a 1C\,” (35 mm) thick door,
and the lock will not retain the UL rating.
To Next Page
