Install the Lock

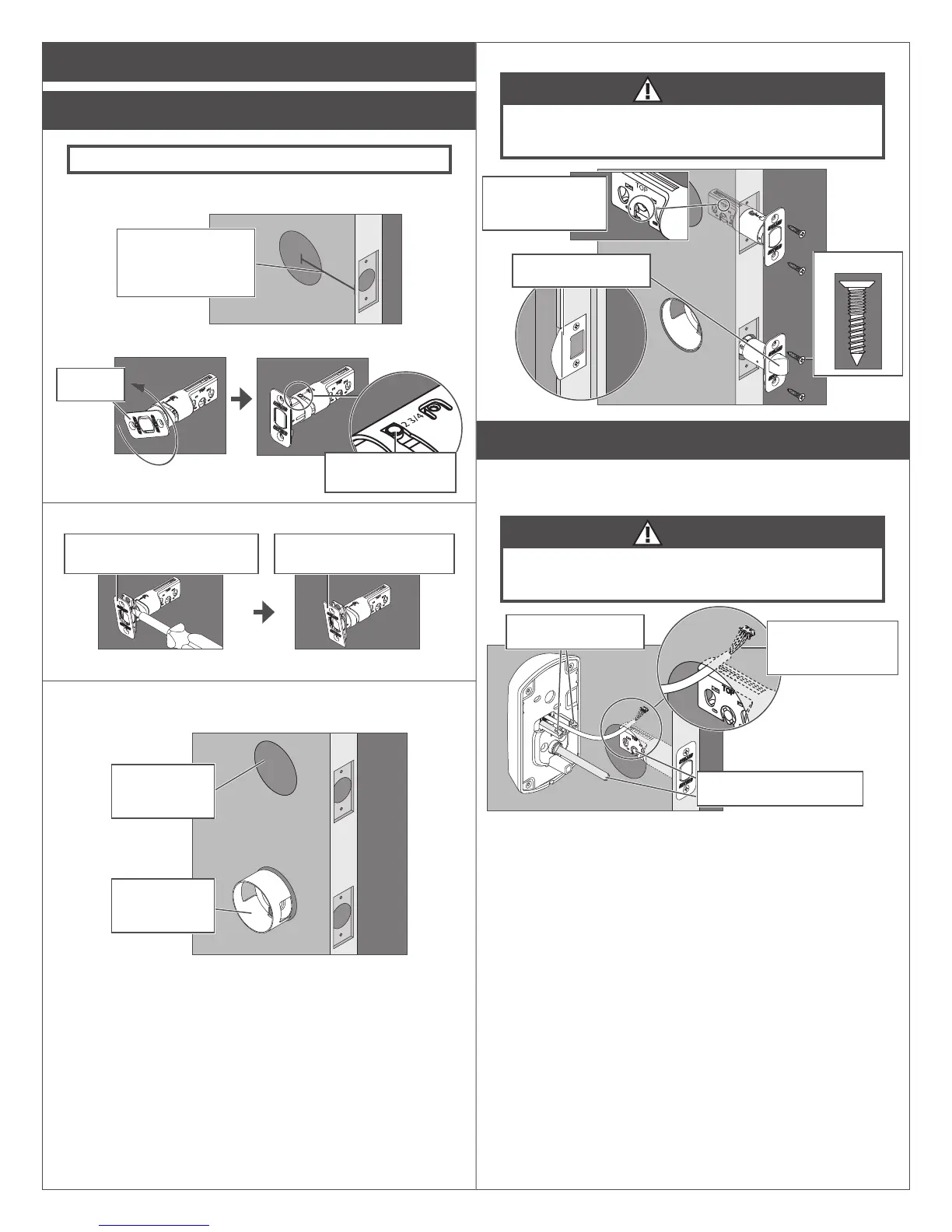

1 Install the bolt and latch.
Caution: Use provided bolt!
1a Adjust bolt length, if necessary.
Measure the backset.
2C\,” (60 mm)
OR
2C\v” (70 mm)
If the measurement is 2C\v” (70 mm), extend the bolt.
Twist the
faceplate.
Make sure the button
pops into place.
1b If desired, change to the square-corner faceplate.
1. Use a athead screwdriver
to pry the faceplate off.
2. Press the square-corner
faceplate into place.
L The faceplate for the latch can be changed in the same way.
1c Install the firecup into the lower hole.
L DO NOT install the recup on a 1C\,” thick door.
Fire cup not
required for
deadbolt hole
Opening should
face the outside
of the door.
1d Install the bolt and the latch into the door.
CAUTION
If the bolt does not remain retracted throughout installation,
locking and unlocking could be reversed, resulting in an
unsecured residence.
Actual Size (4)
Make sure the word
TOP faces up when
installing the bolt.
Make sure latch bevel
faces strike plate.
2 Install the top part of the lock.
2a Install the outside deadbolt assembly on the outside of
the door.
CAUTION
If the bolt does not remain retracted throughout installation,
locking and unlocking could be reversed, resulting in an
unsecured residence.
Route the cable over
the deadbolt and
through the door.
Clips hold the assembly
on the door.
Route the tailpiece through
the slot in the bolt.
