Schlage FE410F - Installing the Internal Deadbolt Assembly; Spindle Adjustment and Cam Positioning; Mounting and Securing the Inner Assembly

4

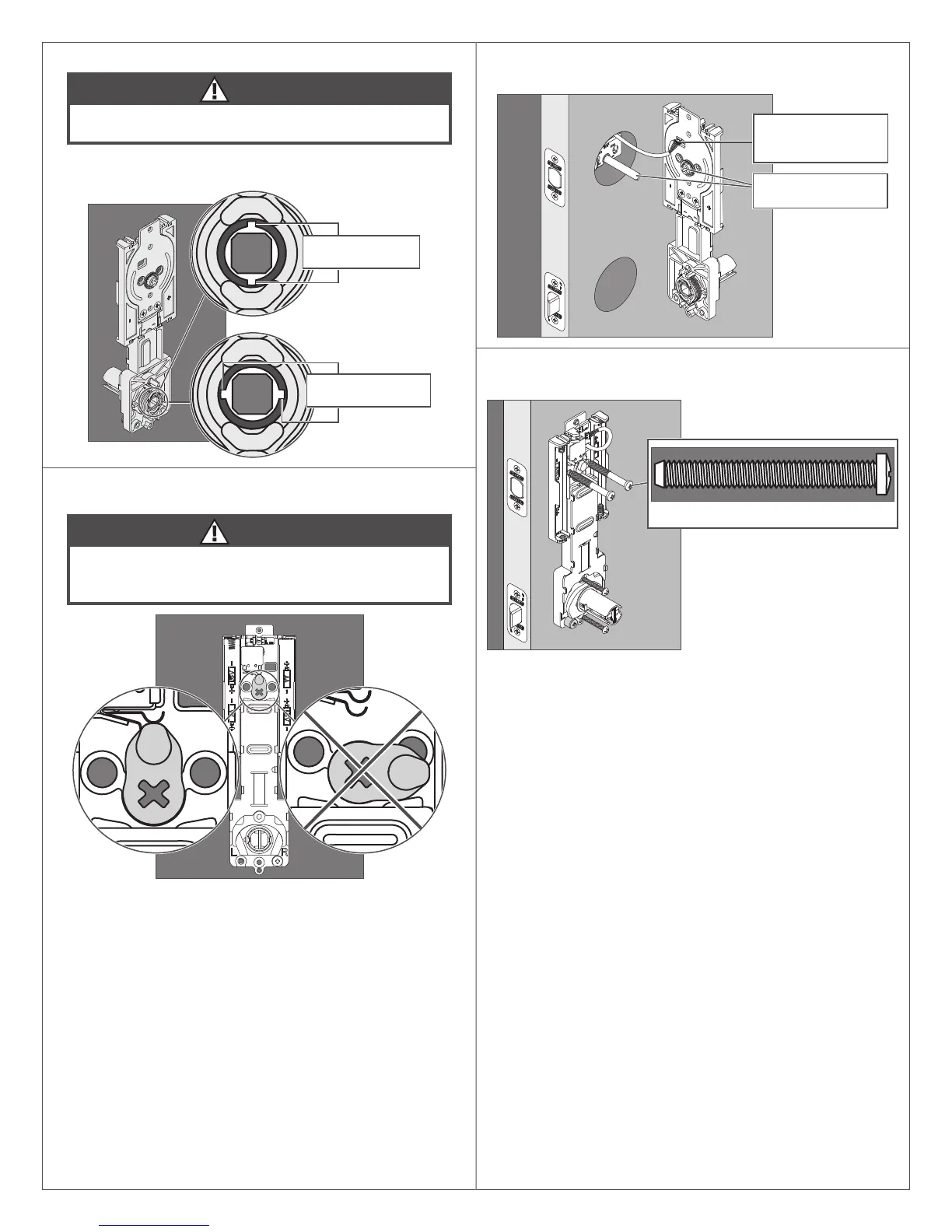

2b Adjust the spindle on the inside assembly, if necessary.
CAUTION
If the spindle is not in the correct position, locking and unlocking
could be reversed, resulting in an unsecured residence.
L See Determine the Handing on page 2 to determine the
hand of your door.
Left hand position
(tabs vertical)
Right hand position
(tabs horizontal)
2c Make sure the cam on the inside assembly is in the correct
position.
CAUTION
If the cam is not in the correct position during installation, locking
and unlocking could be reversed, resulting in an unsecured
residence.
2d Install the inside assembly on the inside of the door.
L Bolt must remain retracted!
Route the cable
through the hole in the
inside assembly.
Guide the slot onto the
tailpiece.
2e Secure the inside assembly with the two top screws.
L If the screw holes are blocked by the cam, see step 2c.
Actual Size (2)
