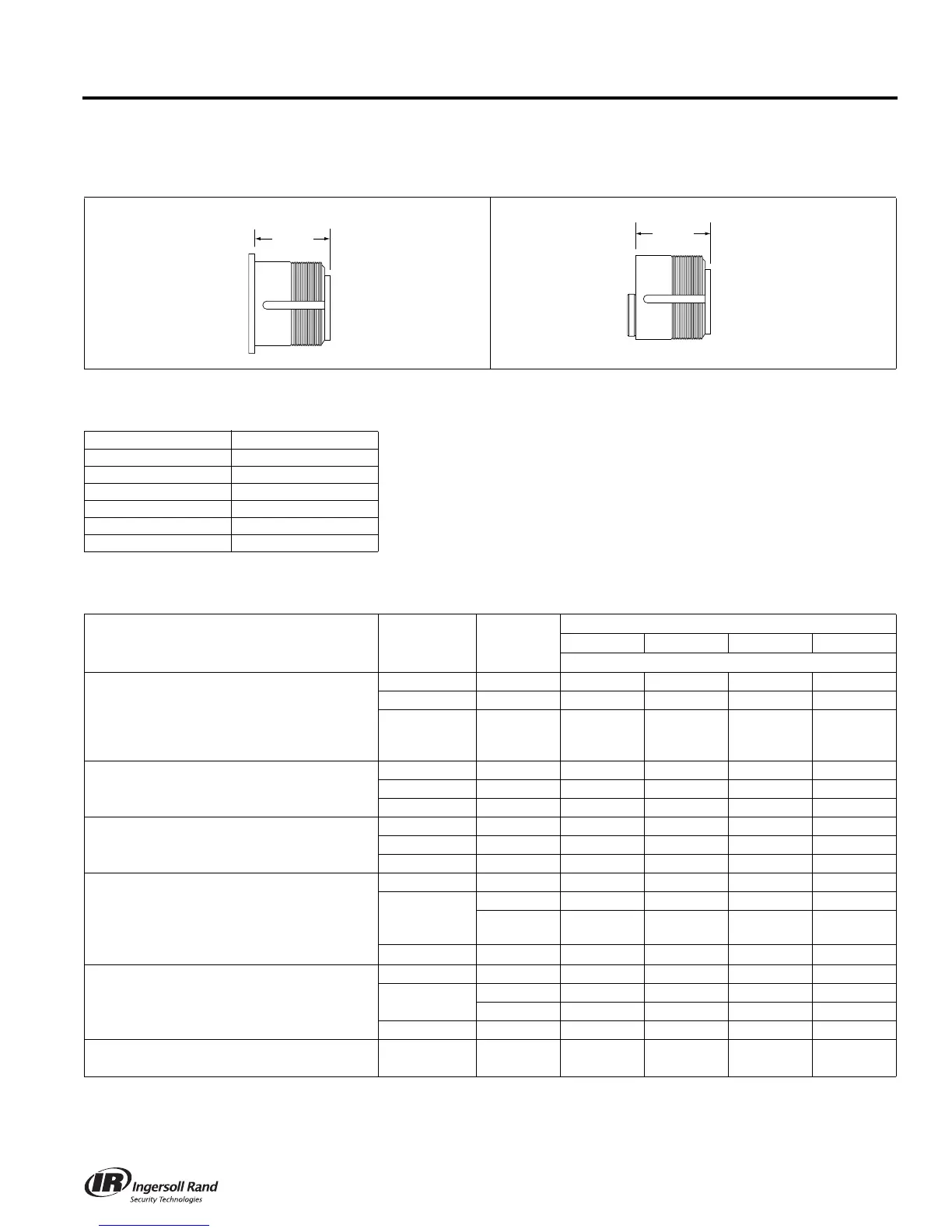

Cylinder Lengths and Specifications
How to Measure Cylinder Lengths
Cylinder Length Dimension Chart
Cylinder and Length Requirements
Full Face and Interchangeable Core Concealed
Cylinder Length Dimension
1¹⁄₈'' 118
1¹⁄₄'' 114
1³⁄₈'' 138
1¹⁄₂'' 112
1⁵⁄₈'' 158
1³⁄₄'' 134
Function Trim Cylinder
Door Thickness
1³⁄₈'' 1³⁄₄'' 2'' 2¹⁄₄''
Dimension
L9050, LV9050, L9056, LV9056 L9070,
LV9070, L9076, LV9076, L9080, LV9080,
L9453, LV9453, L9456, LV9456, L9460 per
XL11-635/886, L9464 per XL11-886, L9465,
L9473, L9480, LV9480, L9496, LV9496
Rose 30-001 118 118 118 118
Escutcheon 30-021 118 114 138 112
Concealed 30-004 118 114 138 112
L9485, LV9485
Rose 30-002 — 118 118 118
Escutcheon 30-022 — 114 138 112
Concealed 30-005 — 114 138 112
L9486, LV9486
Rose 30-002 114 138 112 158
Escutcheon 30-022 118 114 138 112
Concealed 30-005 118 114 138 112
L9060 and LV9060 Inside, L9071, LV9071,
L9077, LV9077, L9082, LV89082, L9457,
LV9457, L9462 per XL11-886, L9466,
L9482, LV9482
Rose 30-001 118 118 118 118
Escutcheon 30-001 114 — — —
30-021 — 118 114 138
Concealed 30-004 — 118 114 138
L9060 and LV9060 Outside
Rose 20-001 118 118 118 118
Escutcheon 20-001 114 — — —
26-021 — 118 114 138
Concealed 26-023 — 118 114 138
L460, L462, L463, L464, L496, L9460, L9462,
L9463, L9464
Rose Trim Only 30-001 118 118 118 118
NOTE: Blocking ring and/or compression rings may be required and must be ordered separately.
