L Service Manual

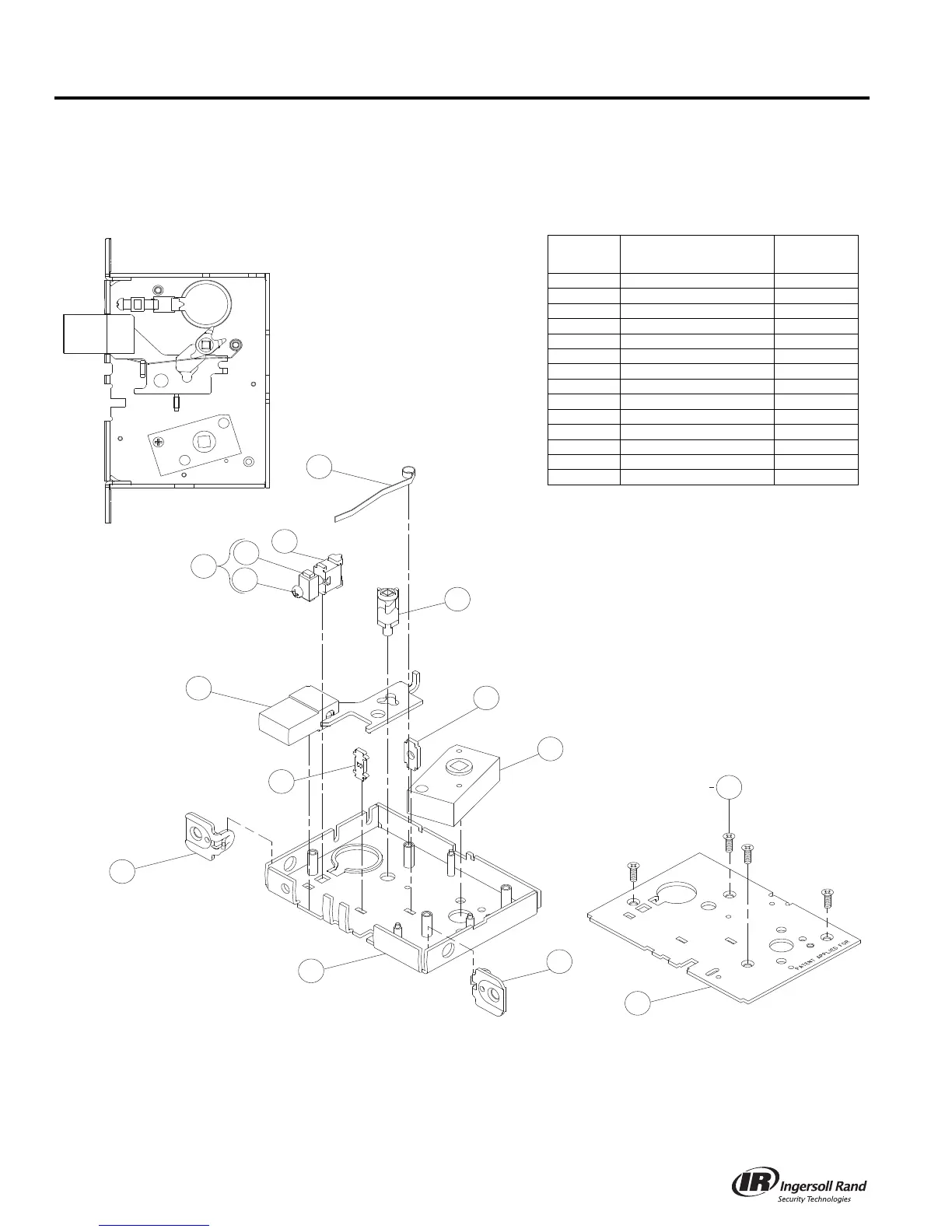

Lock Case Assemblies

L9460 x XL11-635

Assembled Lock Case XL11-661

NOTE: Lock case assembly shown for LH and LHR doors.

Number Description

Part

Number

3 Deadbolt L283-003

10 Cylinder Plate & Screw L283-055

13 L9000 Lock Case L283-112

16 Latchbolt Guide L583-015

27 Turn Hub L583-029

30 Turn Hub Spring L583-035

31 Auxiliary Bar Guide L583-038

42 Spindle Anchor L583-057

51 1¹⁄₄" Faceplate Tab L583-426

52 Case Cover Screws L583-454

53 Cylinder Retainer Screw L583-481

55 Cylinder Retainer L583-490

56 Screw Plate L583-492

58 Lock Case Cover L583-496
