L Service Manual
48
Lock Case Assemblies
L460, L462, L463, L464, L480, L496

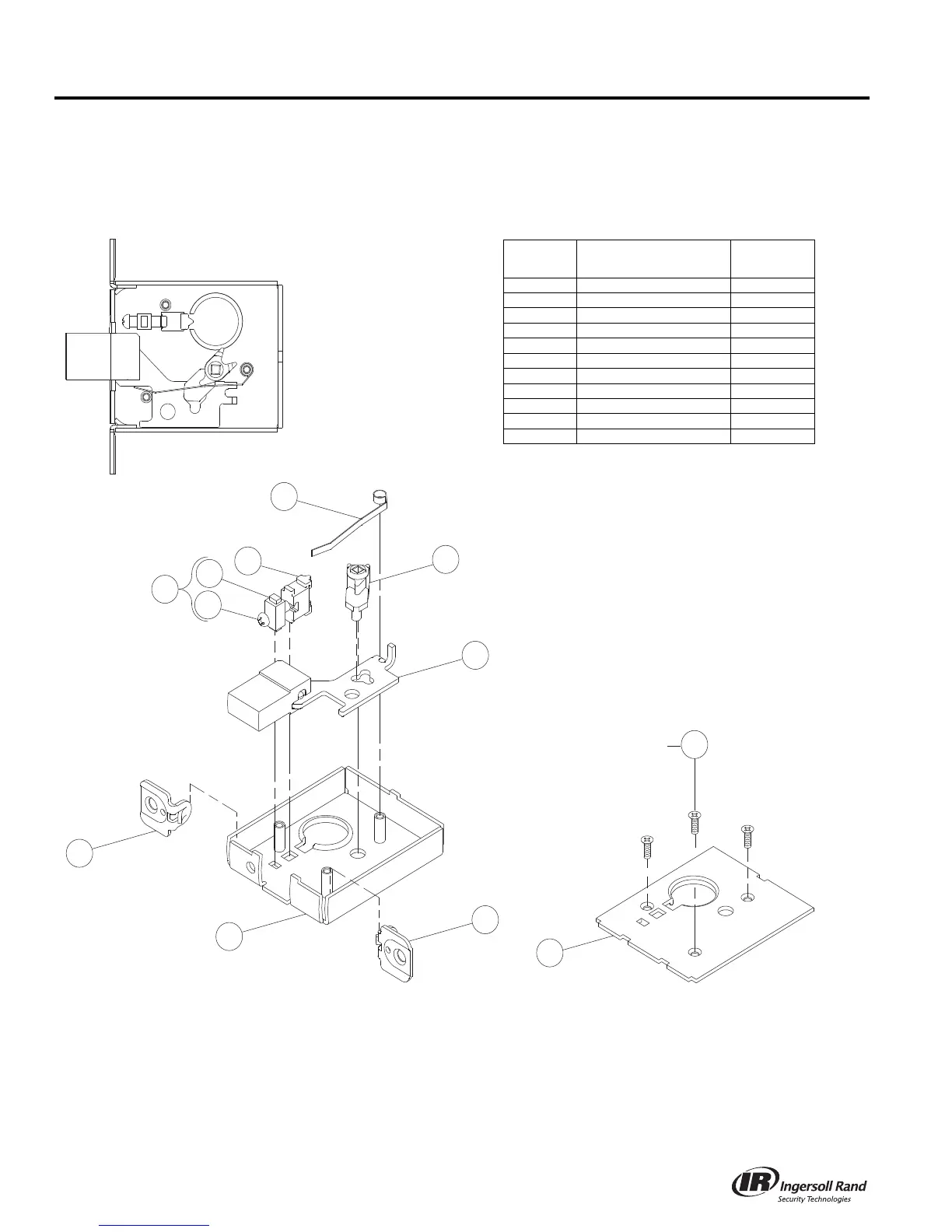

Assembled Lock Case L283-099
NOTE: Lock case assembly shown for LH and LHR doors.
57
3
52
55
10
51
14
51
3
27
30
56
53
Number Description
Part
Number
3 Deadbolt L283-003
10 Cylinder Plate & Screw L283-055
14 L400 Lock Case L283-128
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
57 Lock Case Cover L583-494
