L Service Manual
50
Lock Case Assemblies
L9040, L9040 x XL11-446, L9044

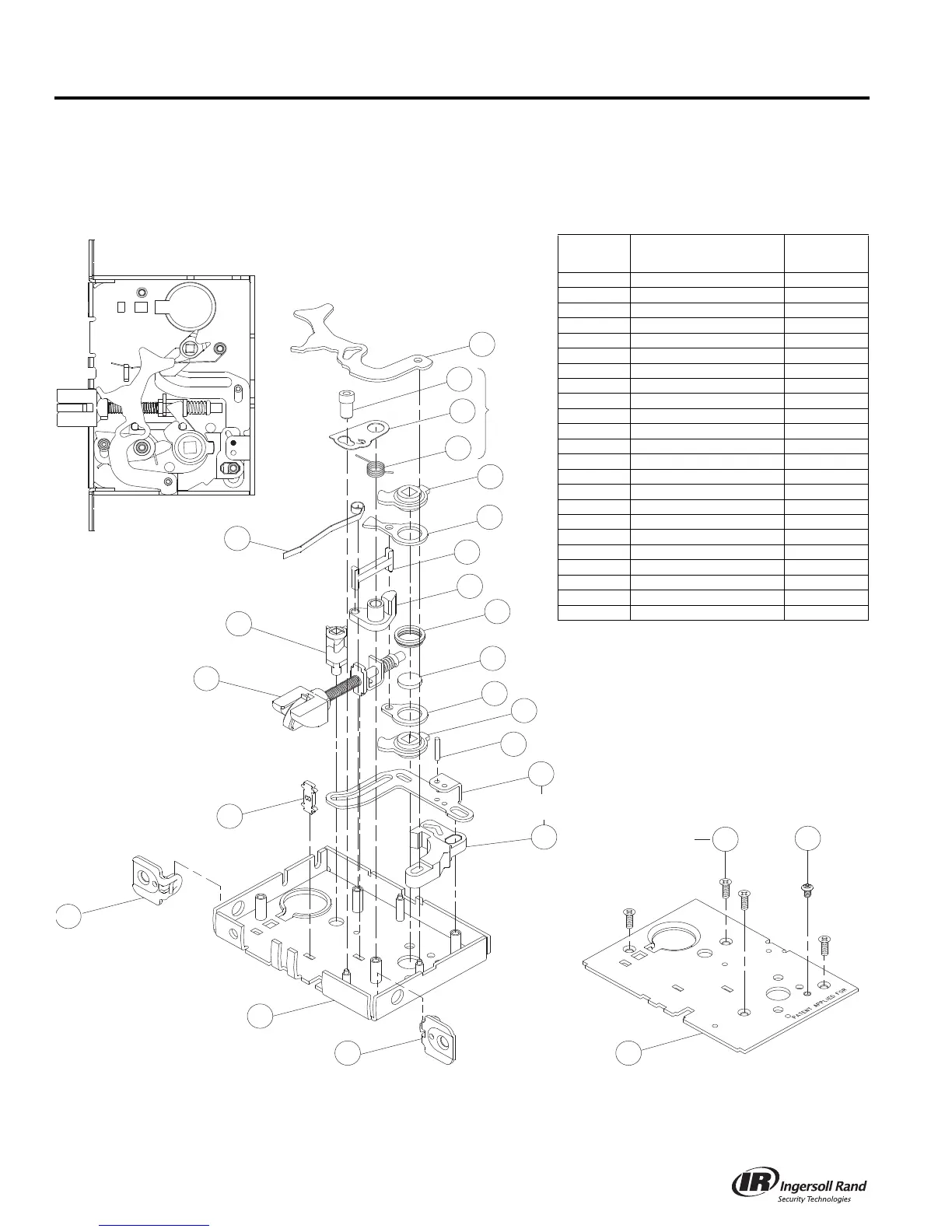

Assembled Lock Case L283-132
** Please see “Assembly of Lock Case Parts” on page 87.
NOTE: Lock case assembly shown for LH and LHR doors. See page 117 for instructions on changing the lock hand.
25
26
43
38
36
34
31
30
27
24
17
19
22
23
18
21
20
17
6
51
13
51
54
58
52
4
(couple before
assembly)
**
**
6 Latchbolt L283-008
13 L9000 Lock Case L283-112
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
34 Locking Catch L583-045
36 Locking Link L583-048
38 Link Pin L583-050
43 Simultaneous Retractor L583-058
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
54 Lock Handing Screw L583-485
58 Lock Case Cover L583-496
