Service Manual L
79

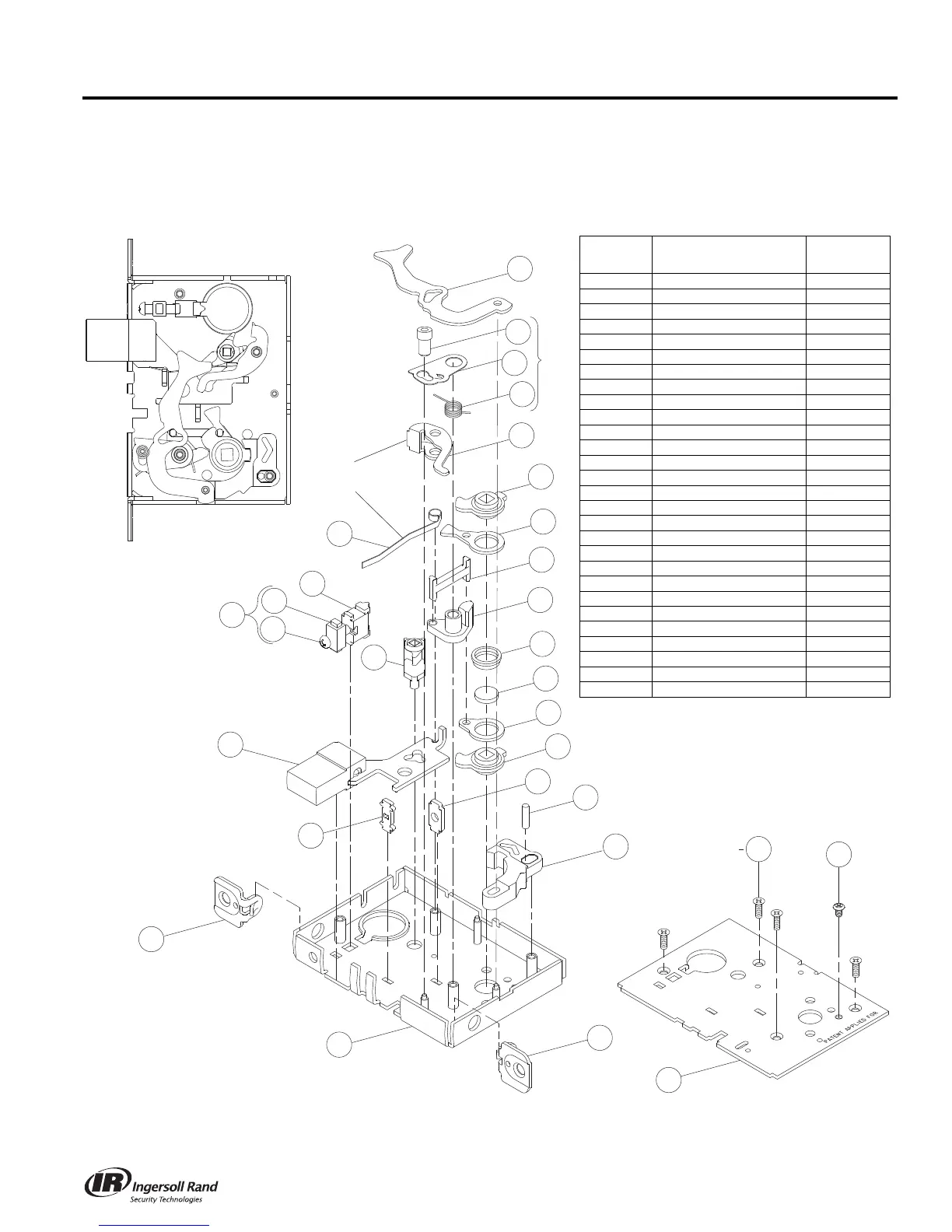

Lock Case Assemblies
L9460 x XL11-886, L9462 x XL11-886, L9464 x XL11-886
Assembled Lock Case XL11-886
** Please see “Assembly of Lock Case Parts” on page 87.
NOTE: Lock case assembly shown for LH and LHR doors. See page 117 for instructions on changing the lock hand.
58
4
52
54
26
41
27
25
55
17
24
19
22
23
18
21
20
17
10
40
16
34
31
3
51
56
53
51
13
30
39
(couple before
assembly)**
**
Number Description
Part
Number
3 Deadbolt L283-003
10 Cylinder Plate & Screw L283-055
13 L9000 Lock Case L283-112
16 Latchbolt Guide L583-015
17 Retractor Hub L583-019
18 Hub Spacer L583-020
19 Retractor Lever L583-021
20 Retractor Rocker L583-022
21 Blocking Plate L583-023
22 Retractor Link L583-024
23 Retractor Crank L583-025
24 Hub Spring L583-026
25 Fire Door Fuse L583-027
26 Fire Door Catch L583-028
27 Turn Hub L583-029
30 Turn Hub Spring L583-035
31 Auxiliary Bar Guide L583-038
34 Locking Catch L583-045
39 Transfer Lever L583-051
40 Simultaneous Retractor L583-053
41 Catch Pin L583-056
51 1¹⁄₄" Faceplate Tab L583-426
52 Case Cover Screws L583-454
53 Cylinder Retainer Screw L583-481
54 Lock Handing Screw L583-485
55 Cylinder Retainer L583-490
56 Screw Plate L583-492
58 Lock Case Cover L583-496
