Schlage M450 - Magnet Reorientation; Marking and Hole Preparation

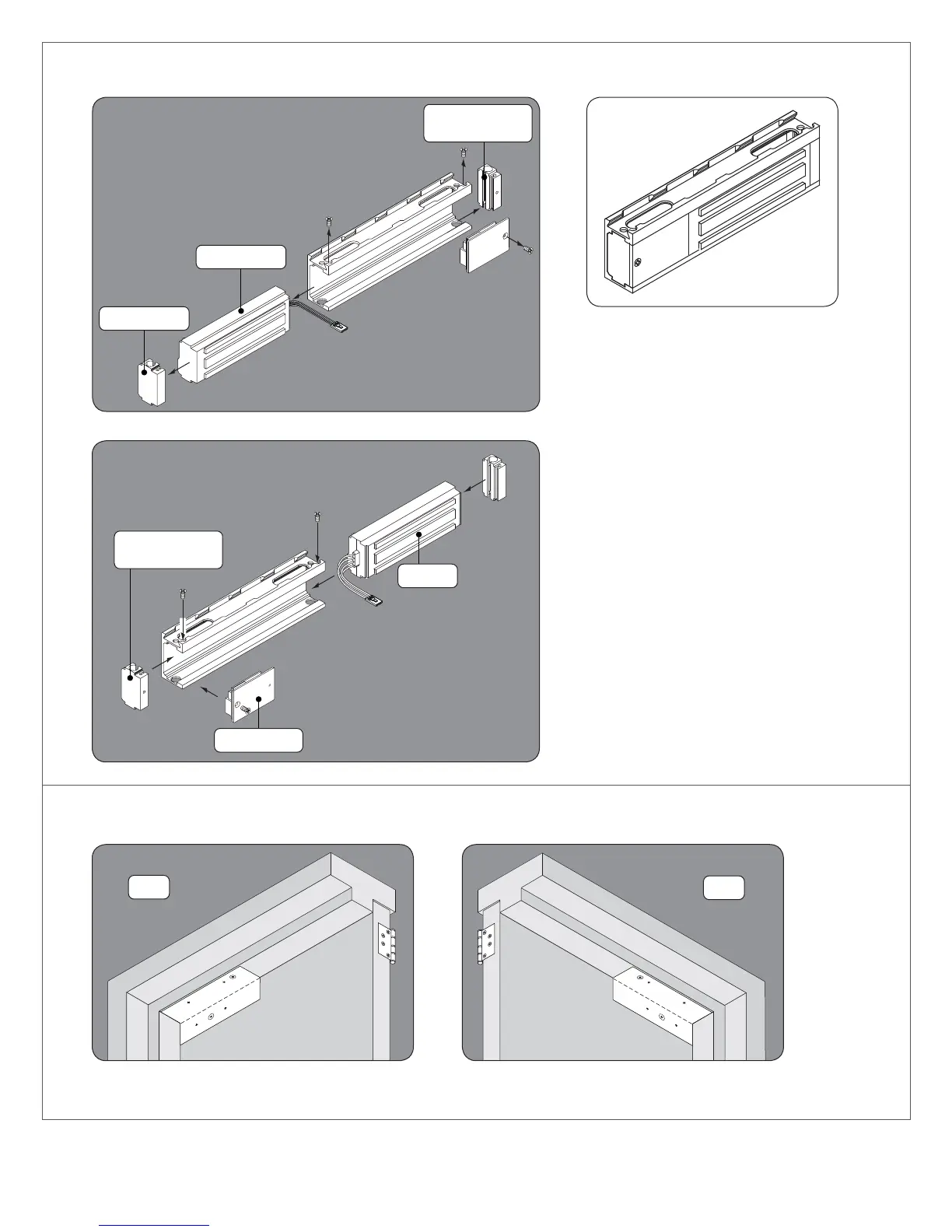

1b Reorient Magnet (if necessary).
• Remove screws, wiring cover and end blocks.
End Block
Magnet
End Block
(with screw hole)
• Rotate magnet, end blocks and wiring cover as shown, then reassemble.
Magnet
Wiring Cover
End Block
(with screw hole)
1c Place template and mark holes.
• Place template on top corner, opposite of hinges.
• Mark holes and prepare them per template.
LHR
RHR
