11. Maintenance / maintenance schedule
72|108
Reference Manual |Edition 4.0 (10-2013) |
EcoCut 3300

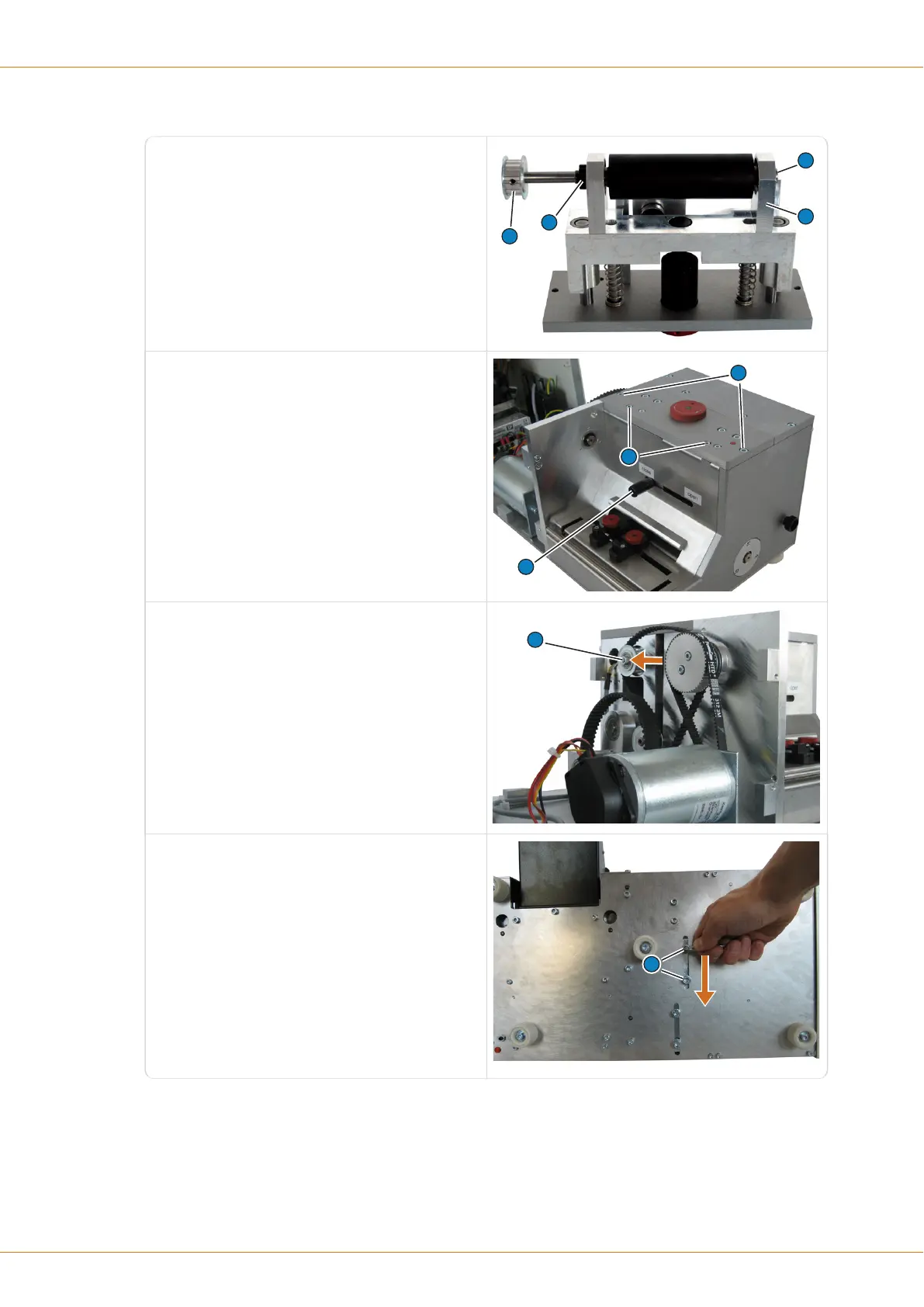

27» Slide on the holder (17) to the new drive roller
and tighten with the screw (15).
28» Slide in the new drive roller onto the unit.
29» Screw on the support (17).
30» Mount the roller lever (16).
31» Mount the lock nut (14) and the pulley (13).
32» Put the whole gap adjuster assembly back
into the machine.
33»
Screw on the unit with the screws (5) and (6)
slightly.
34» Screw on the roller lever (7).
35» Mount the double sided transport belt.
36»
Tension the belt with the tension pulley and
attach it with the nut (4), see chapter "11.9.5
Replacing belts (Page 69)".
37» Turn the machine to the side of the wire
entry.
38»
Screw on the motor loosely with both screws
(3).
39» Slide motor in the direction of the arrow to
tension the drive belt. Then tighten the
screws.
