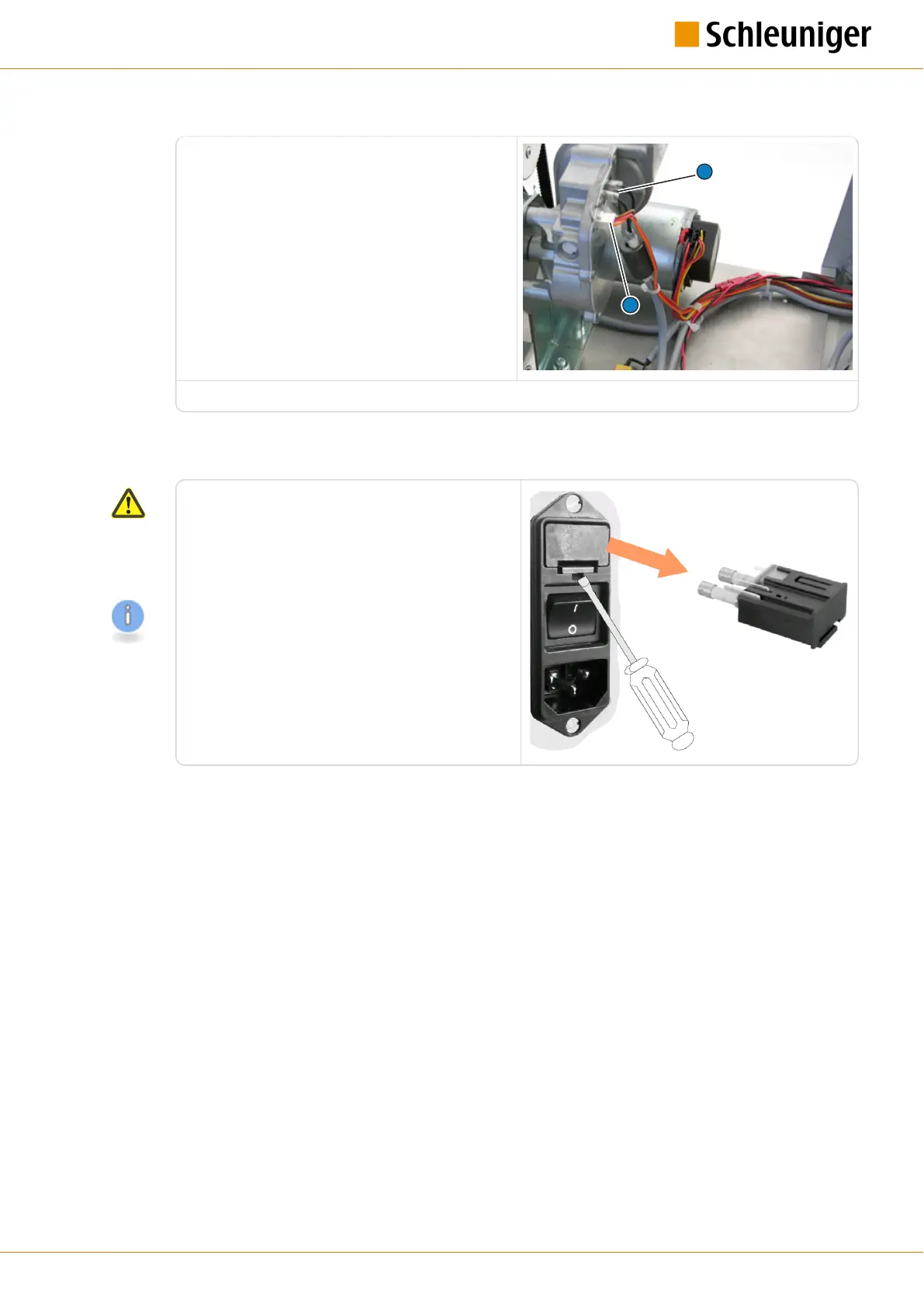

40» Put the machine back to its normal position.
41» Connect the power (1) and data cable (2) of
the cutter motor.
42» Close the housing of the machine.
11.9.7
Exchanging mains fuses
1»
Switch off and unplug the machine from the
mains supply.
2»
Unlock the fuse holder with a screwdriver and
remove it from the power supply module.
3» Insert the new fuses into the fuse holder slots.
On a fuse change always replace both mains fuses
(same type and rating), see chapter "4.4 Rating plate
(Page 21)".
4»
Attach the fuse holder to the power supply
module.
5» Connect the machine to the mains and switch
it on.
SPARE PARTS / EXPLODED VIEW DRAWINGS
For original Schleuniger spare parts see „Parts Catalog“.
