Schmidt SC Series User Manual

11

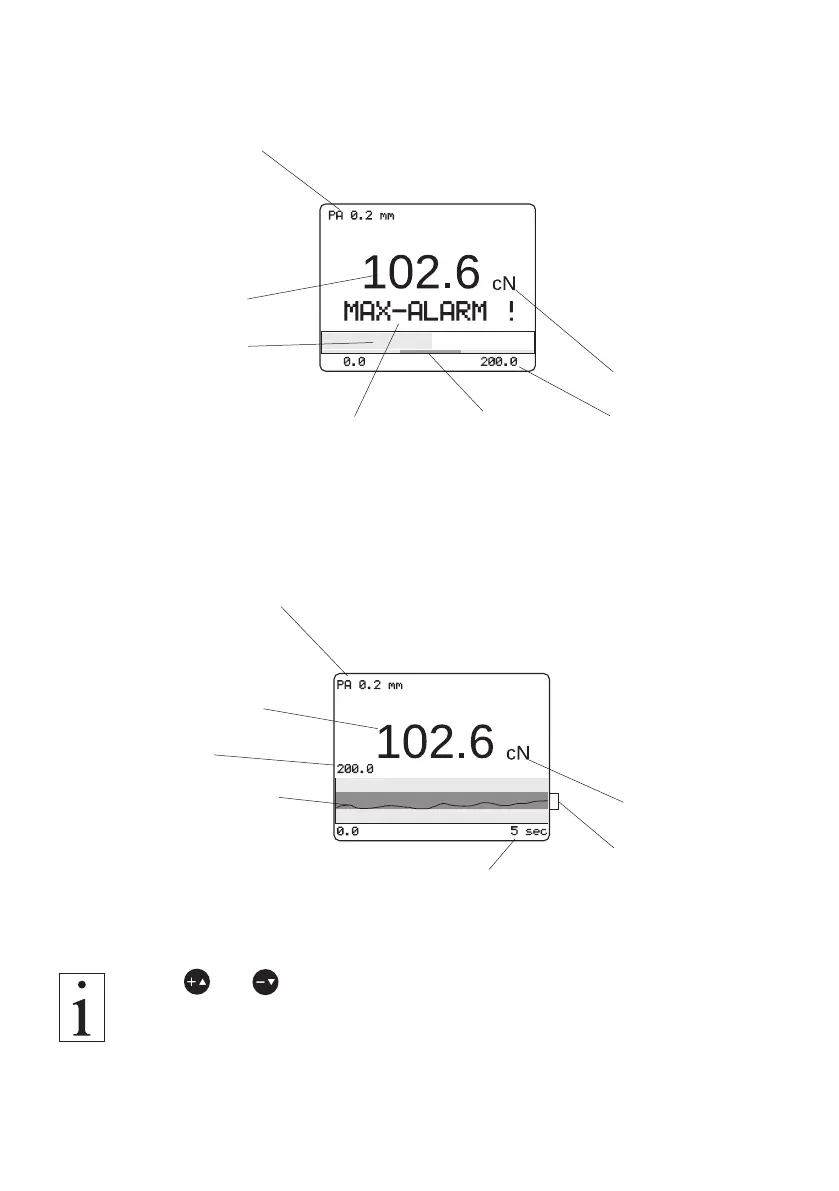

Display with bargraph
Info on material
Current reading
Readings
between the
alarm values
Measuring unit
Min/Max alarm
fig. 3.1c
Tension range
Current reading
as bar graph
3.1 Operating elements (cont.)
Graphic display
Current reading
Tension range
Measuring unit
Measured value
as graph
fig. 3.1d
Info on material
Readings
between the
alarm values
length of the
time axis
With the and button the X-axis can be scaled. The setting range is 2 to
60 sec.
The scaling can also be changed during the measurement, whereby values al-
ready displayed are deleted when the X-axis is changed
