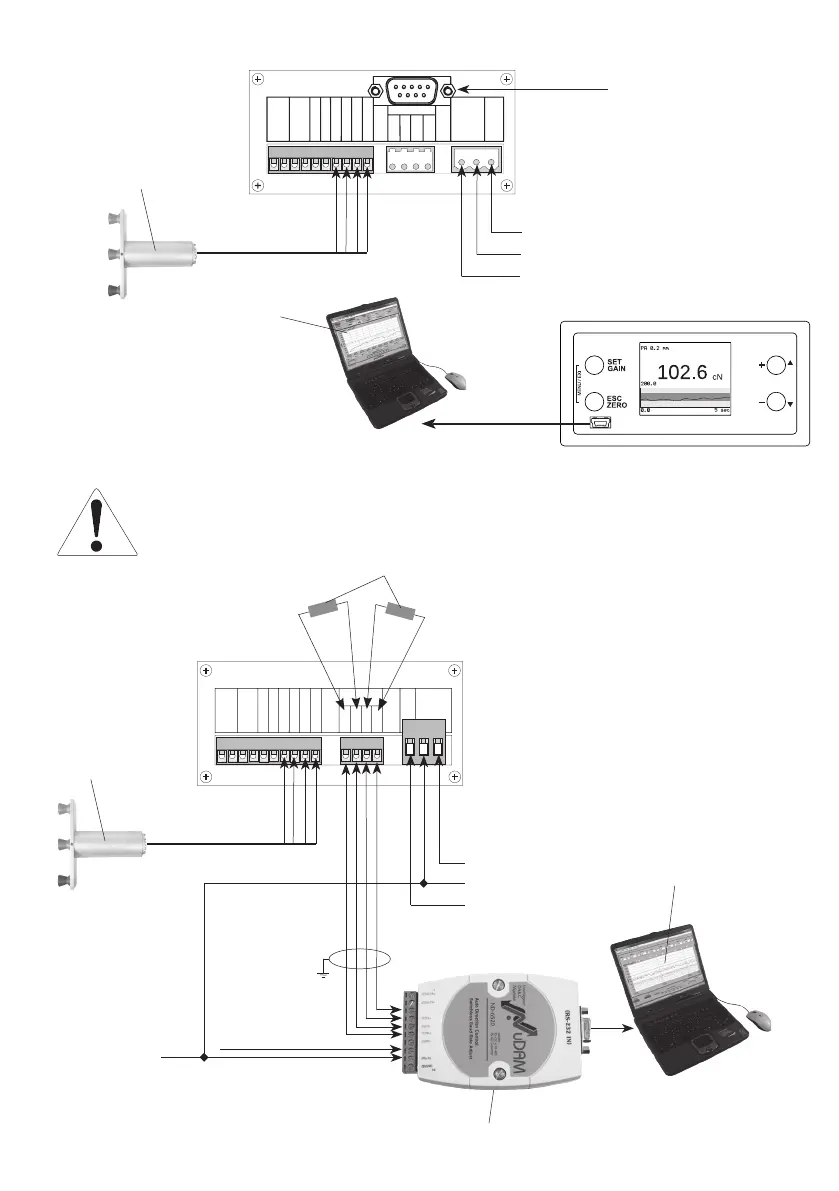

2.4.1 Connecting the SC-PM to USB or CAN-Bus
Eearth
GND
+15 - 24 V DC
Online
Sensor
CAN-Bus (optional)
PC
USB
2.4.2 Connecting one SC-PM with the RS-422 interface
The two 2 x 240 W terminating resistors must always
be installed in the terminal block of the SC-PM-422.
Terminating resistors 2 x 240 W
GND
Earth
GND
+ 15 - 24 V DC
+ 15 - 24 V DC
Online
Sensor
RS-422 / RS-232 converter
PC
