Schmidt SC Series - General Information; Specifications and Dimensions

5
2 General information
2.1 Specifications
Digital display: Colour TFT 128 x 160
Units of measure: cN, daN, g, kg or lb (selectable)
Damping (f
g
): 9-step adjustable
Signal processing: Digital
Measuring frequence: USB: 1 kHz
RS-422: 200 Hz
Output signal: Analog signal: 0 - 10 V DC (R
Load
> 5K Ohm)
Update time 2 msec (1000 Hz)
Alarm limits: High / Low (selectable), with output signal
Open collector max. 30 V DC, 10 mA
Digital output signal: USB, RS-422, CAN-Bus (optional)
Calibration 4 characteristic curves can be saved
Signal input for sensor: SC-PM: 0 - 1 V
SC-PMD: mV/V
Voltage output for sensor: SC-PM: 12 V
SC-PMD: 3.3 V
Power supply: 15 - 24 V DC
Current consumption: 0.14 A
Temperature range: 10 - 45° C
Air humidity: 85% RH, max.
Housing: Plastic
Dimensions: 115 x 95 x 48 mm
Required cutout: 91.5 x 45 mm
Weight, net (gross): Approx. 200 g (300 g)

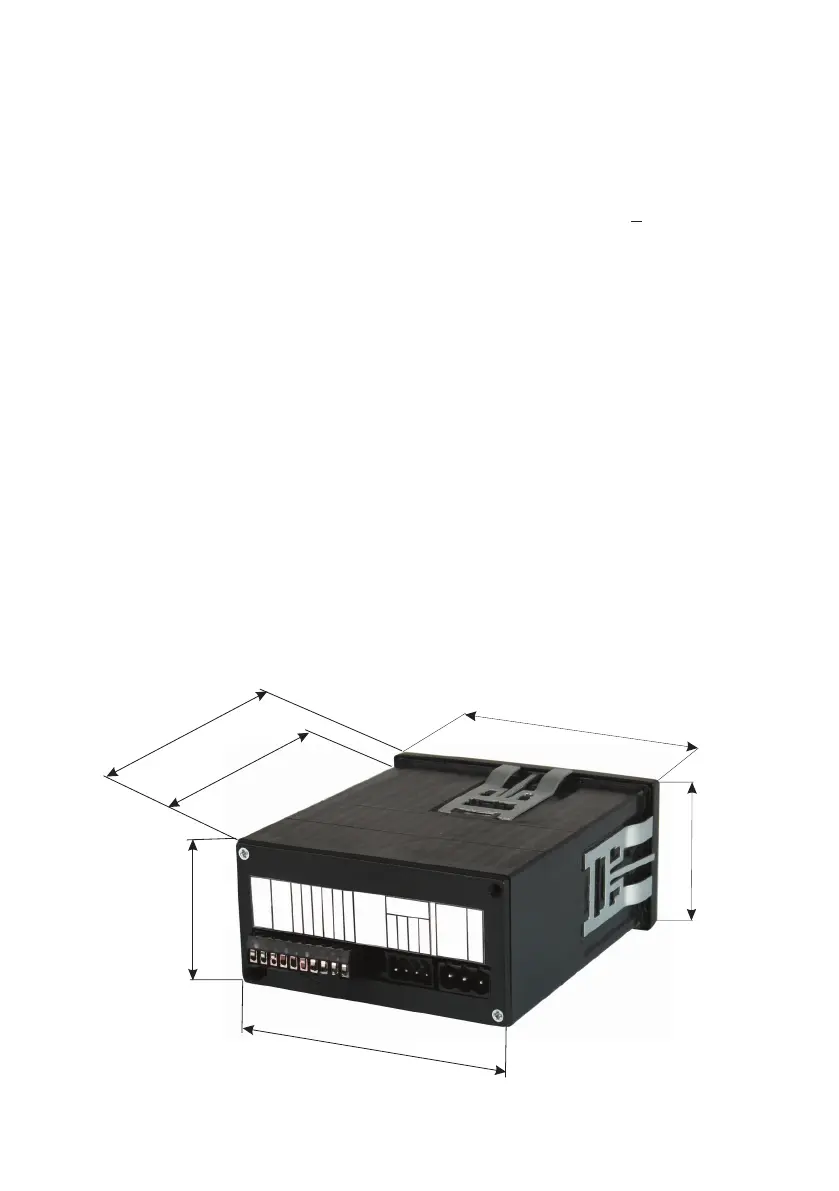

2.2 Dimensions of the SC-PM
115 mm
105 mm
43 mm
90 mm
95 mm
48 mm
