EELLEECCTTRRIICCAALL CCOONNNNEECCTTIIOONN
The appliance must be fitted correctly to guarantee electrical
safety. During fitting and maintenance operations, the appliance
must be unplugged from the electrical grid; fuses must be
switched off or removed.
The electrical connections are made before the appliance is
installed in its housing.
Ensure that:
- the electrical installation has sufficient voltage,
- the electrical wires are in good condition,
- the diameter of the wires complies with the installation
requirements.
The oven must be connected with a power cable (standardised)
with 3 1.5mm
2
conductors (1 ph +1N + ground) that must be
connected to a monophase 220-240 V
~
network via a CEI 60083
standardised receptacle 1 ph + 1 neutral + ground lead or an all-
pole cut-off device in accordance with installation rules.
WWaarrnniinngg
The safety wire (green-yellow)
is connected to the appliance’s
terminal and must be connected to the earth terminal of
the electrical set-up.
You must enable the appliance to be disconnected from the
supply network after installation.
Disconnection can be enabled by ensuring that there is an
accessible power plug or by incorporating a switch into the fixed
wiring in compliance with the installation rules.
The fuse in your set-up must be 16 amperes.
If the power cable is damaged, it should be replaced by the
manufacturer, its after-sales service department or a similarly
qualified person to avoid danger.

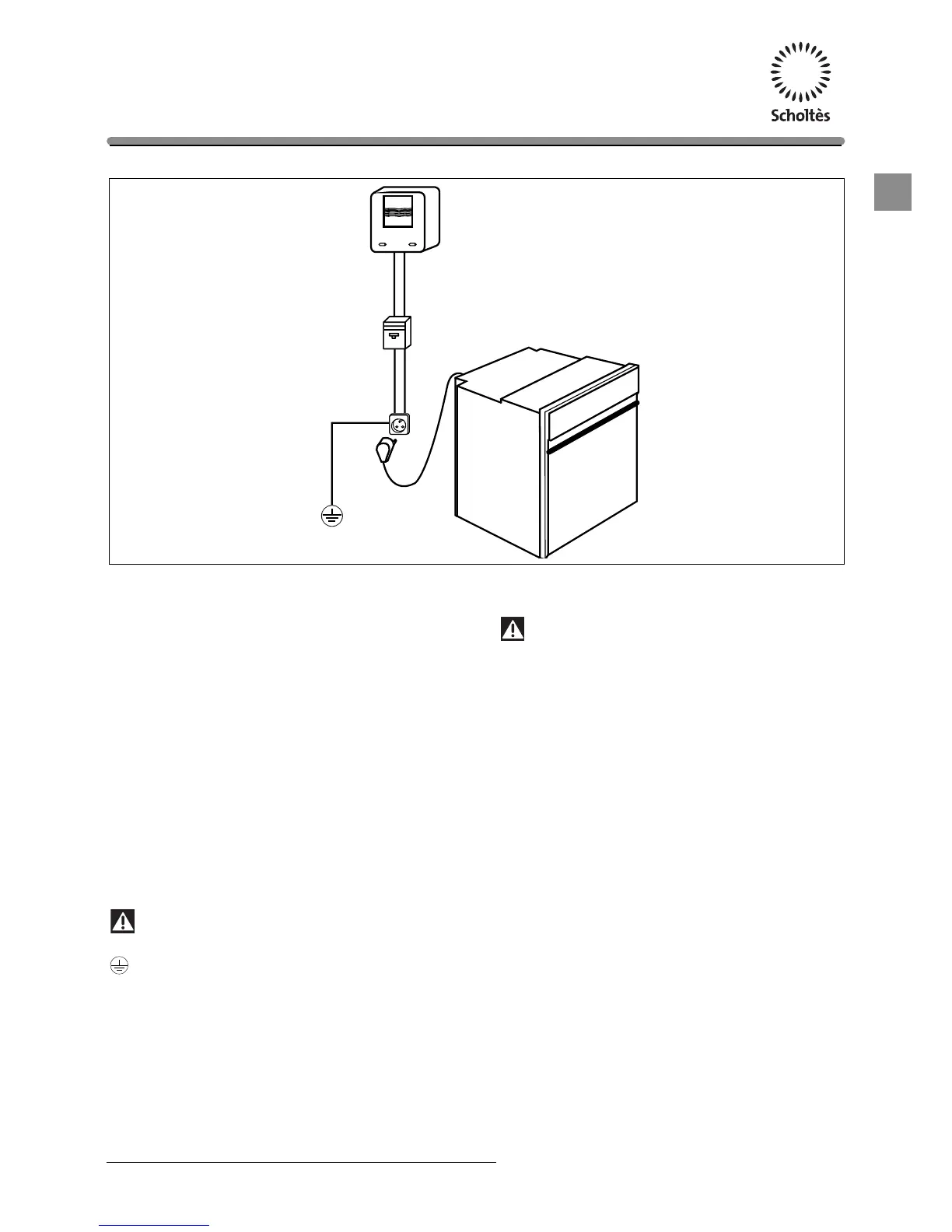

Single-phase 20A Counter
220-240V
~
50Hz
Electrical outlet
2 prong receptacle
++ eeaarrtthh
CEI Standard 60083
220-240 V Single-phase line
~
Power
supply cable
length 1.50 m
approx.
16A fuse or differential
circuit breaker
WWaarrnniinngg
We cannot be held responsible for any accident resulting
from non-existent, defective or incorrect earthing.
If the electrical installation in your residence requires any
changes in order to hook up your appliance, call upon a pro-
fessional electrician.
If the oven malfunctions in any way, unplug the appliance or
remove the fuse corresponding to the sector where the oven
is hooked up.
