2
GB
Installing your appliance
CCHHOOIICCEE OOFF LLOOCCAATTIIOONN

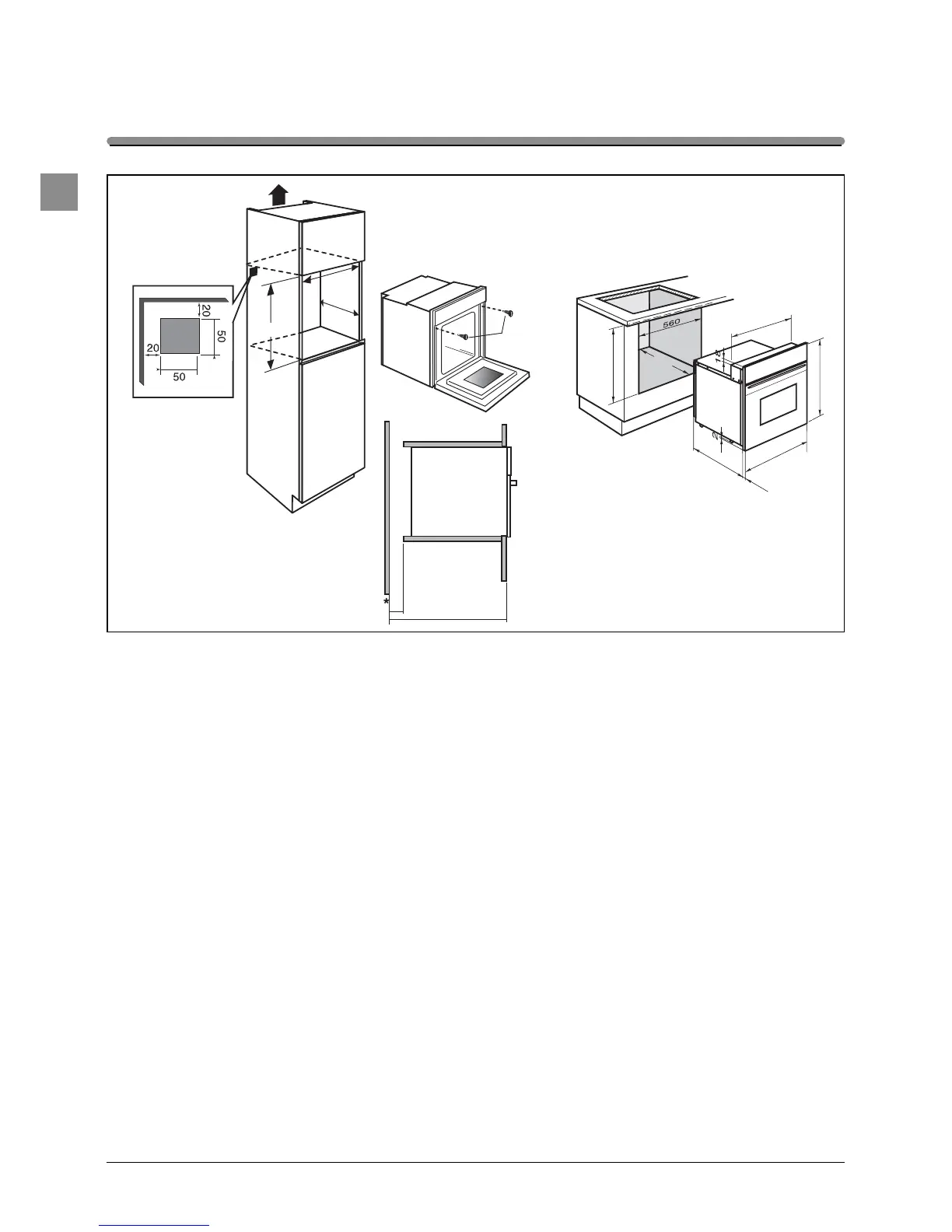

The above diagrams determine the dimensions of a cabinet that will
be able to hold your oven.
The oven can be installed under a work top or in a column of cabi-
netry (open* or closed) having the appropriate dimensions for built-
in installation (see adjacent diagram).
Your oven has optimised air circulation that allows it to achieve
remarkable cooking and cleaning results if the following guidelines
are followed :
• Centre the oven in the cabinet so as to guarantee a minimum dis-
tance of 10mm between the appliance and the neighbouring cabi-
net.
• The material or coating of the cabinet must be heat-resistant.
•?Attach the oven in the cabinet with two screws through the holes
provided for this purpose on either side of the front inner panel
(fig?1).
BBuuiilldd--iinn
To do this :
1) Drill a hole in the cabinet panel to avoid splitting the wood.
2) Attach the oven with the two screws.
