SCHUBERTH SRC-System PRO Schuberth

Intercom
Music and Mobile
Voice Command
• On / O
Volume Up
Volume Down
Antenna
Connector
USB Connector
• Charging Jack
• Software Download Port
Speaker Connector
2 Speakers
Pin
Pin
Flexible Boom
Microphone
Wall charger plug
Microphone sponge
USB adapter cable
Speaker pads
Velcro® pads
User Manual, stickers

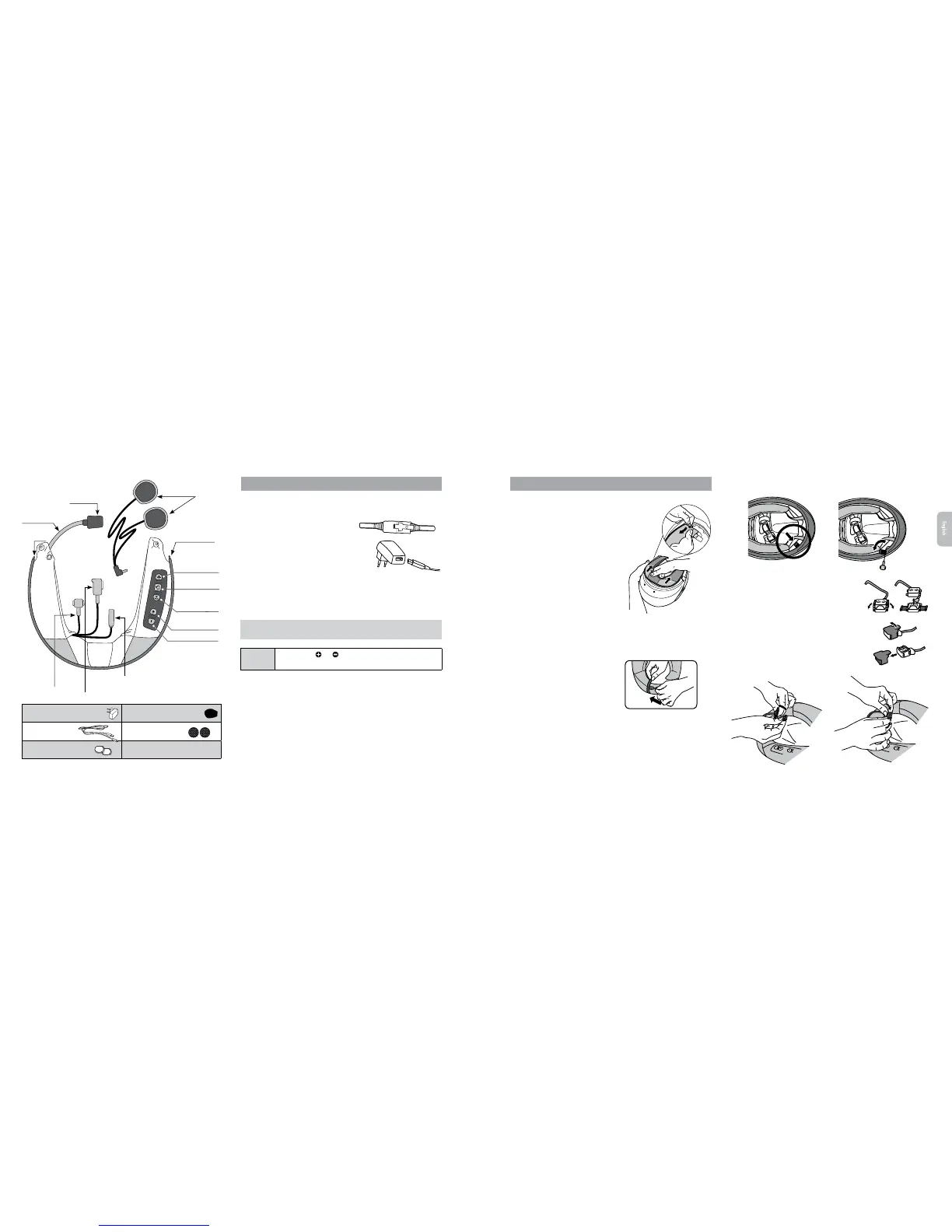

2. CHARGING THE BATTERY
Make sure that your SRC-System™ PRO is fully charged for at least 4 hours
before initial use.
1. Open the cover protecting the Charging Jack.
2. Insert the USB cable into the Charging Jack.
3. Insert the other end of the USB cable into the wall
charger or a computer’s USB port.
4. While charging, the red LED turns on. When
charging is complete, the red LED will turn o.
Your wall charger and USB adaptor cable serve two purposes:
1. Charging your headset from any A/C wall socket or from a USB port on your
computer (charging time from computer takes longer)
2. Downloading software upgrades from any PC / Mac (see section 4 for details).
The cover protecting the micro USB Connector should be kept tightly closed at all times to
prevent moisture from entering the device.
Battery
Check
In Standby, press
and for 5 seconds.
• BLUE = Full • PURPLE = Half • RED = Almost empty
3. INSTALLATION
3.1 REMOVING THE EXISTING ACOUSTIC COLLAR
First, remove the existing Acoustic Collar from
your helmet as follows:
1. Open both snap buttons.
2. Pull out the Acoustic Collar from the rear at
its bended center.
3. Release the collar’s pins from their
corresponding indentations inside the
helmet’s rim.
3.2 CONNECTING THE ANTENNA CABLE
Your SRC-System™ PRO has an antenna cable which must be connected to the
built-in antenna cable connector in the Schuberth helmet.
Make sure to close the cover of the USB
connector, and then tuck it away into the USB
connector pocket .
Antenna tag visible
Antenna connector
pulled out
1. Pull out the antenna connector (marked with a red tag) which is tucked inside
the back rim of the helmet.
A. B.
2. On the SRC collar open the two fasteners on the
antenna connector and remove the protective
plastic cover.
A.
B.
3. On the helmet remove the rubber protector from
the antenna connector.
4. Align the two connector heads and snap the two
fasteners back into place to lock the connector in
a closed position.
24 | SRCS Pro SRCS Pro | 25

SCHUBERTH SRC-System PRO Specifications

General

Brand	SCHUBERTH
Model	SRC-System PRO
Category	Two-Way Radio
Language	English
