5. The antenna connector can now be safely stowed
away inside the antenna connector pocket on the
center of the SRC-System™
PRO .

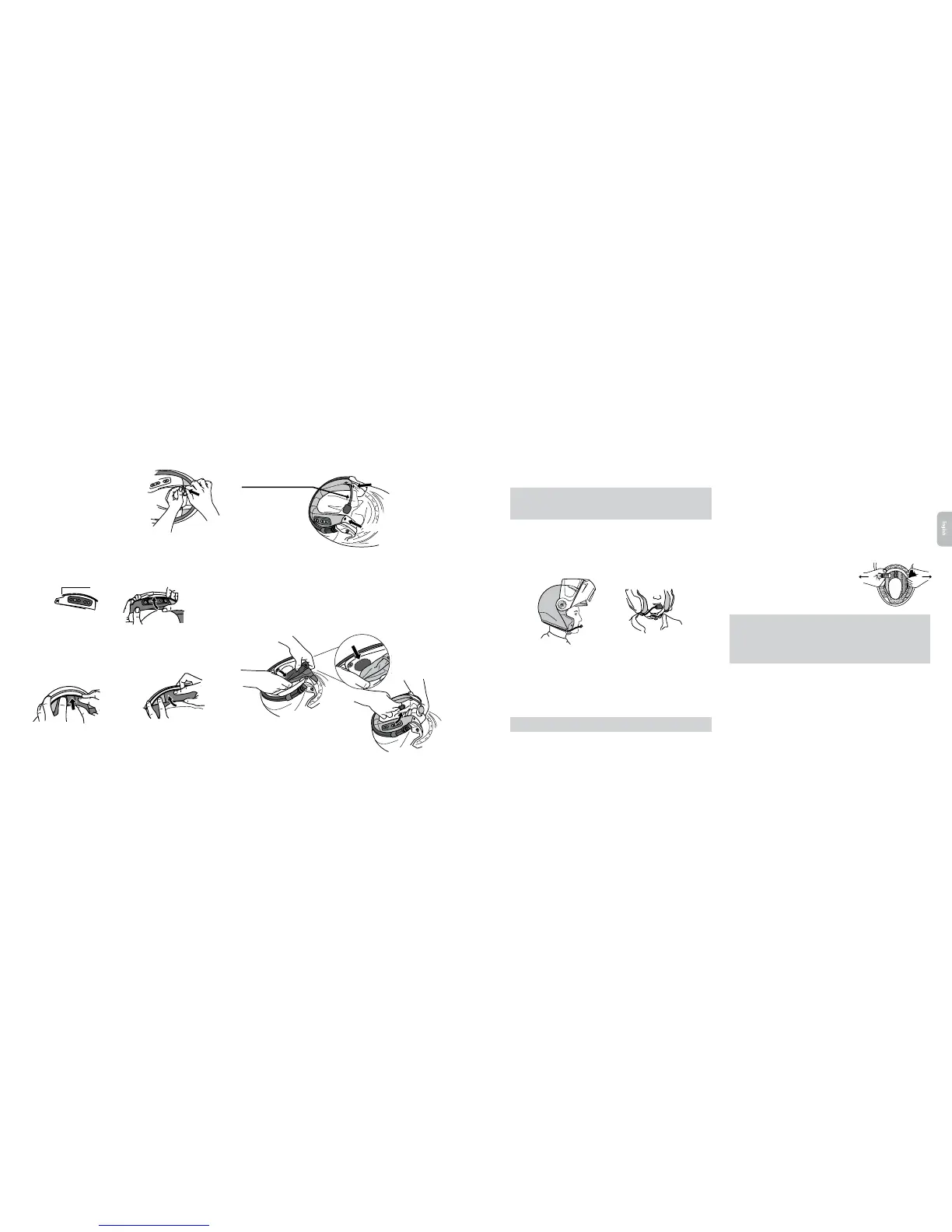

3.3 ATTACHING THE SRCSYSTEM™ PRO
1. Make sure to place the speaker cords inside the helmet, and then secure the
SRC-System™ PRO into place.
2. Slide and insert the pin located at the edge of the control panel into its
corresponding indentation on the helmet and close the snap button.
Pin
3. Insert the other pin on the opposite side of the Acoustic Collar into place and
close the second snap button.
4. Push and insert the Acoustic Collar starting from the center area to the back of
the helmet area. Do the same for the remaining parts to secure the Acoustic
Collar into place.
5. Make sure that both snap buttons remain fastened, and that the
microphone boom is located on the inner side of your helmet (between the
SRC-System™
PRO and the inner padding of the helmet).
Microphone Boom
Snap Button
Snap Button
3.4 POSITIONING THE SPEAKERS
For best audio results, make sure that both of your speakers are placed as closely
as possible just opposite your ears.
The following applies to both sides of the SRC-System™
PRO :
1. Open the rear red button located under the interior lining that covers the cheek
pads (the button is held by a black ring). Lift the lining slightly.
2. Attach the corresponding oval Velcro pads to the speaker-shaped indentations on
the EPS (expanded polystyrene) and position the speakers on the Velcro pads.
➊➋
3. Close the red button, making sure it is still inside its black holding ring.
Optional speaker pads are provided to boost the speaker volume if needed by bringing the
speakers closer to your ears.
To use, simply place the speaker pad between the Velcro pad in the helmet indentation and
the speaker.
3.5 POSITIONING THE MICROPHONE
To assure smooth closing (ip-down) of the helmet’s chin section, rst remove its
triangular Anti-Noise Pad and proceed as follows:
1. Bend the exible microphone boom as shown in the image.
2. Press the microphone towards the center of your mouth.
3. Flip-down and close the chin section of your helmet. You may need to use both
hands to close the chin section properly.
4. While the chin section is closed and the visor is open, insert your hand into the
opening of the visor and push the microphone away, towards the center of the
chin section directly opposite your mouth.
3.6 REMOVING THE SRCSYSTEM™ FROM YOUR HELMET
1. Detach both speakers from the Velcro on the helmet.
IMPORTANT: Make sure not to pull on the Antenna connector .
2. Pull out the Antenna connector from its pocket and carefully disconnect it.
3. Carefully lift and push the Acoustic Collar’s arch from the center.
4. Release the Acoustic Collar’s pins from their corresponding indentations inside
the helmet’s rim.
5. Open both snap buttons.
3.7 WEARING AND REMOVING THE HELMET
The electronic components of SRC-System™ PRO are safely embedded inside
an Acoustic Collar. To avoid discomfort while you put on your helmet or while
removing it, we recommend that you proceed as follows:
1. Expand the helmet opening by rmly holding the chin straps and pulling them
forcefully apart.
2. While pulling the straps apart, slide the helmet
over your head.
3. To remove the helmet, proceed along the same
lines by rst pulling the straps apart and then
pushing the entire helmet upwards.
You r SRC-System™ PRO Collar is designed for maximum comfort. However, since it
contains an entire electronic kit within, it will have a slight a bulge. Therefore, putting
your SRC equipped helmet on or taking it o may feel dierent than what you are used
to with a standard Acoustic Collar. Remember: The more you pull the helmet straps apart
when putting on your helmet or taking it o, the smoother the process will be, allowing
the Acoustic Collar to soften.
3.8 CLEANING THE SRCSYSTEM™ ACOUSTIC COLLAR
To clean the SRC-System™ PRO Acoustic Collar, rst make sure the USB connector
is tightly closed. Use only a slightly damp cloth. Avoid soaking the Acoustic Collar
with water or any other uid. Never submerge it and refrain from letting water
come in contact with the speakers or the microphone. Allow the unit to dry at
room temperature.
