Schulthess proLine D200 - Page 41

EN
41
11 kg dryer
400 V 3 N ~ 15 kW
4,8 kW 4,8 kW 4,8 kW
N L1 L2 L3PE
PE N L1 L2 L3
1 63 5
2 64 6
Heating 14,4 kW
Motor 0,6 kW
Fuse 25 AT
18 kg dryer
400 V 3 N ~ 21,2 kW
7,1 kW
7,0 kW
6,5 kW
N L1 L2 L3PE
PE N L1 L2 L3
1 63 5
2 64 6
Heating 20,6 kW
Motor 0,6 kW
Fuse 32 AT

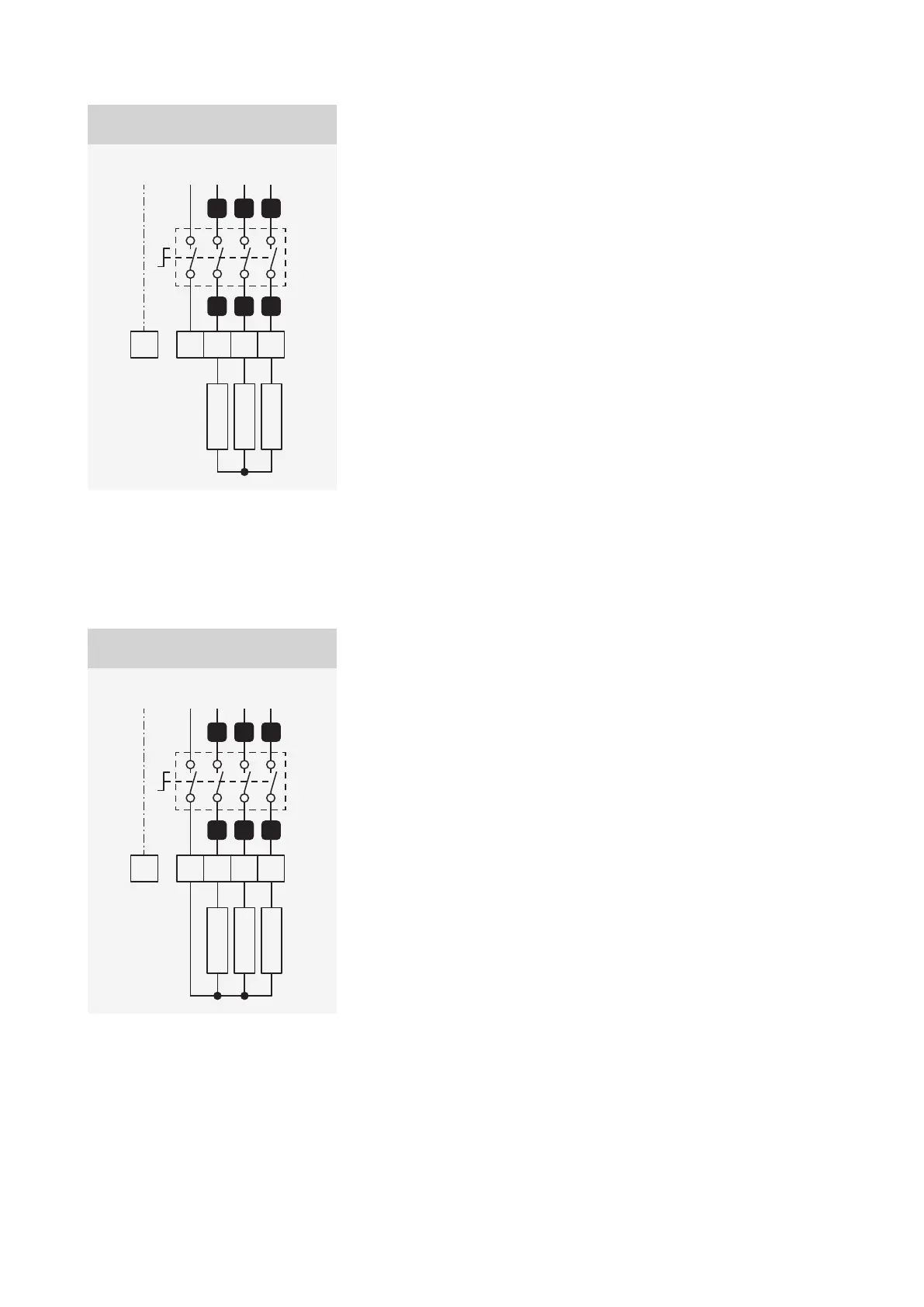

The connection diagram above can also be found
inside the machine (upper cover plate).
