Assembly

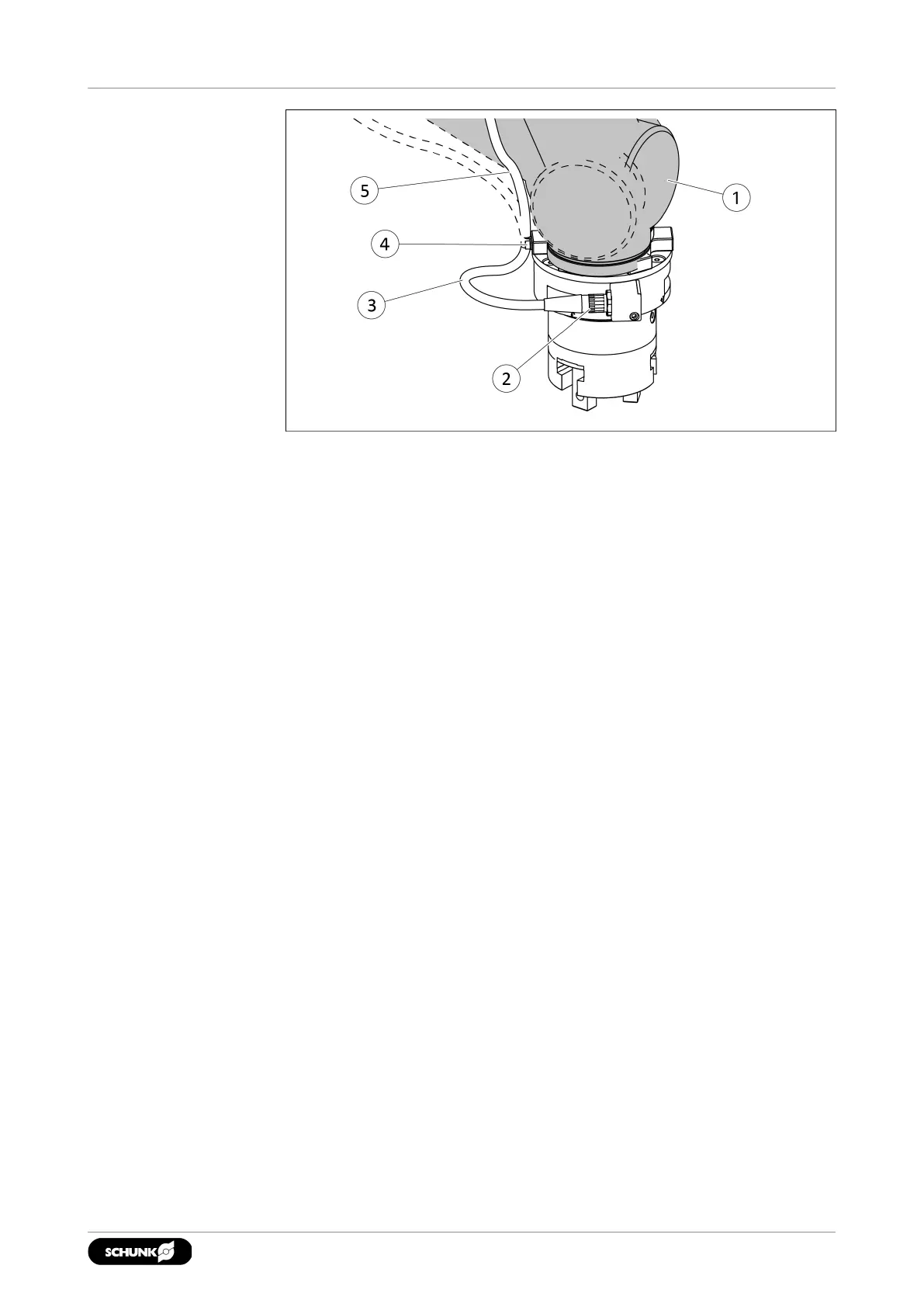

1. For sensors from Gamma and larger: Connect the
connector(1) to the cable outlet.
2. Observe the static bending radius(3) and fasten the sensor
cable close to the connector(4).
3. Observe the dynamic bending radius(5) so that the robot(1)
can move.
5303.00 | FT | Assembly and Operating Manual | en | 389582
