SCHUNK PWG-S 40 User Manual

Assembly
16
03.00 | PWG-S | Assembly and operating manual | en | 389361

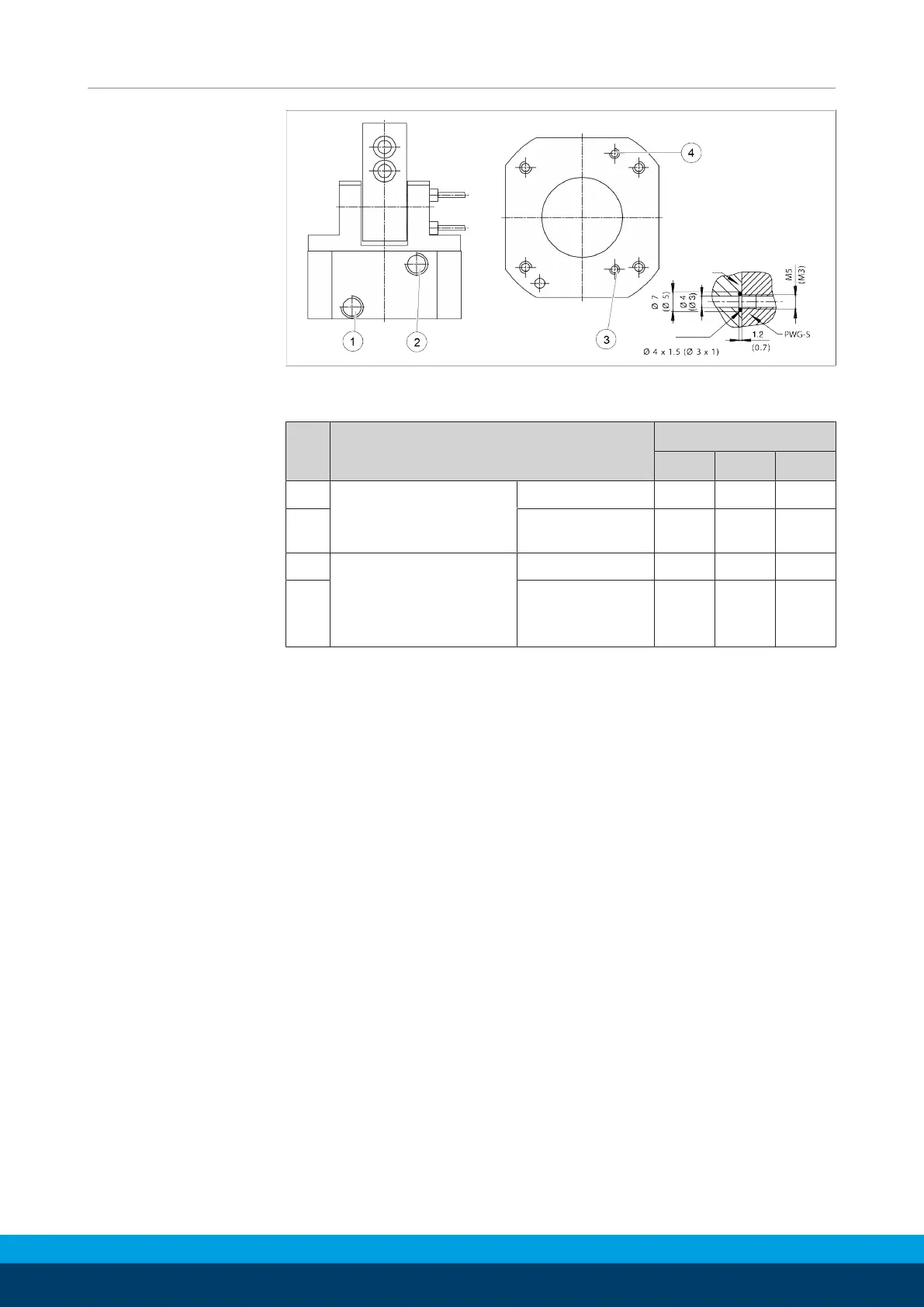

Adapter
O-ring
Pneumatic connection
Thread diameter of the air connections
Item Designation
PWG-S
40 60 80
1 Main connections
(Hose connection )
(A = open, B = close)
M5 M5 R1/8”
2 M5 M5 R1/8”
3 Hose-free direct
connection at the
base
(a = open, b = close)
M5 M5 M5
4 M5 M5 M5
• Only open the air connections required.
• Seal air connections not required using
the locking screws from the enclosed pack.
• For hose-free direct connections use the two O-rings from the
enclosed pack.
