Maintenance
24
03.00 | PWG-S | Assembly and operating manual | en | 389361

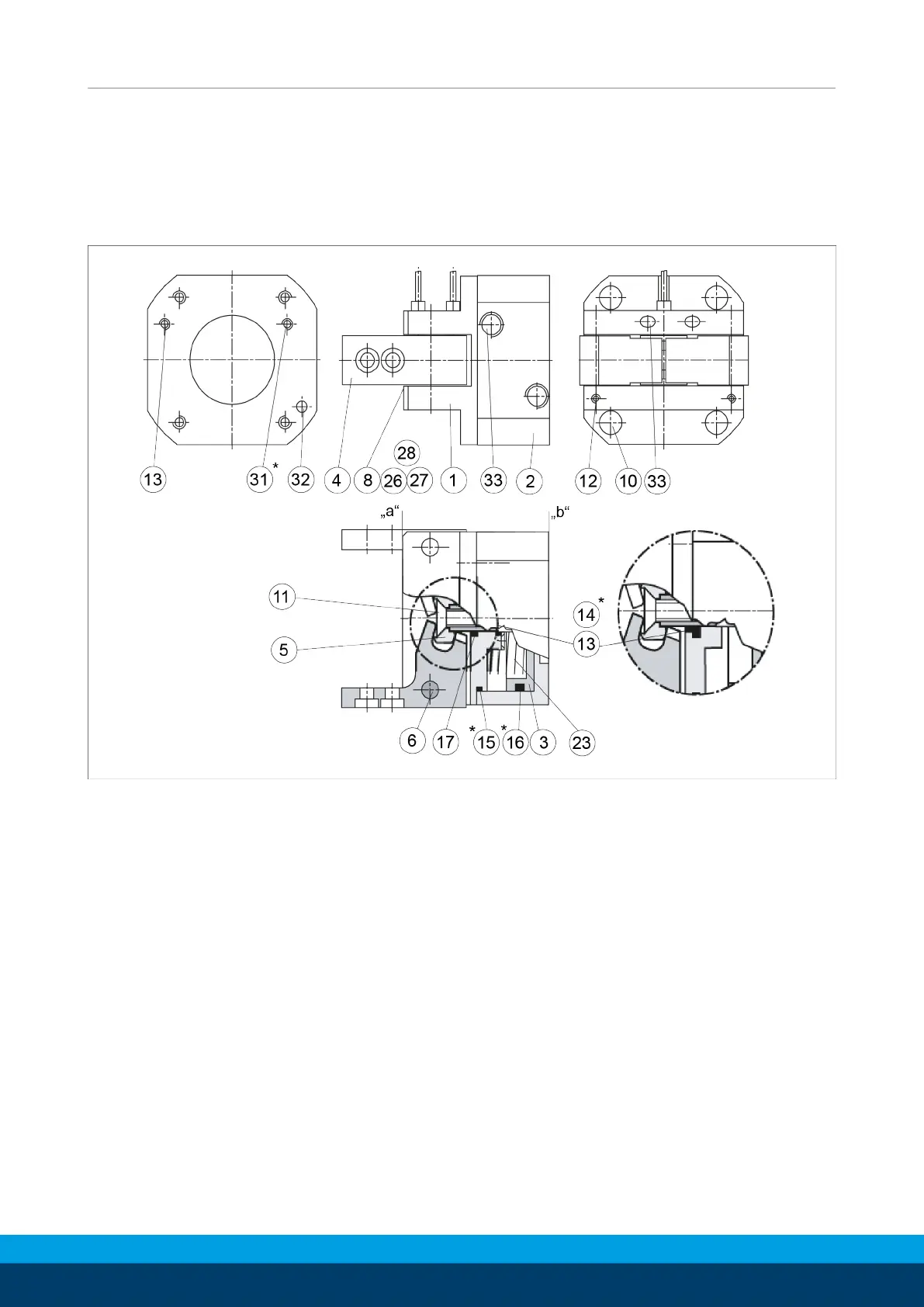

6.6 Assembly drawing
The following figure is an example image.
It serves for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered completely.
